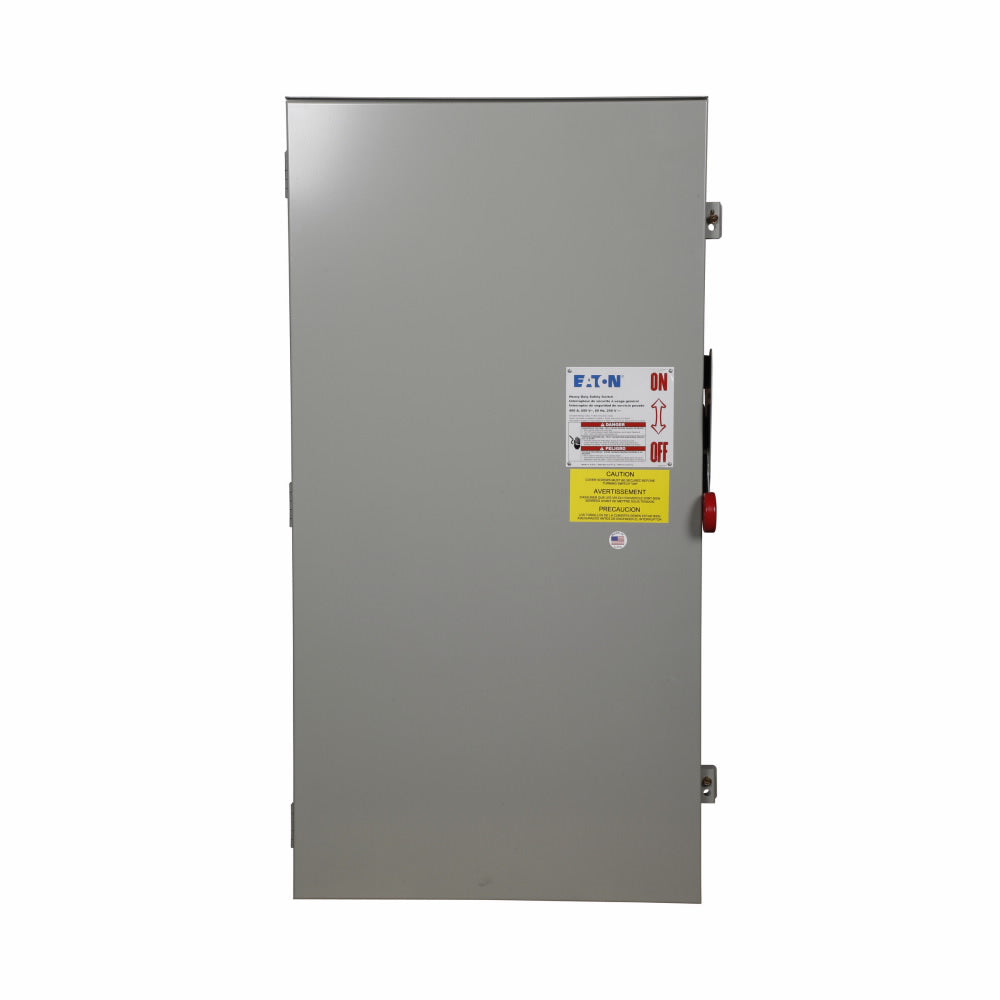

EATON DH365URK Heavy Duty Non-Fusible Single Throw Safety Switch 600VAC 400A 350HP TPST 3 Poles

Product Description

The EATON Heavy Duty Non-Fusible Single Throw Safety Switch, model DH365URK, is designed for use in power distribution and control applications. This switch operates at 600 VAC and has a current rating of 400 A. It is suitable for commercial and institutional settings where reliability is essential.

• Heavy-duty design meets industry standards.
• TPST contact form allows for effective control.
• NEMA 3R rated for outdoor applications.

Product Highlights

This safety switch provides a visible means to disconnect power, enhancing safety for personnel while protecting equipment.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: DH365URK

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 400 A
• Horsepower: 350 hp
• Number of Poles: 3
• Contact Form: TPST
• Dimensions: 45.5 in L x 24.38 in W x 10.25 in H
• Material: Steel
• Enclosure Type: NEMA 3R
• Finish: Galvanized/Painted
• Application: Power distribution and controls
• Standards/Approvals: UL Listed, complies with NEC 230.62 (C)
