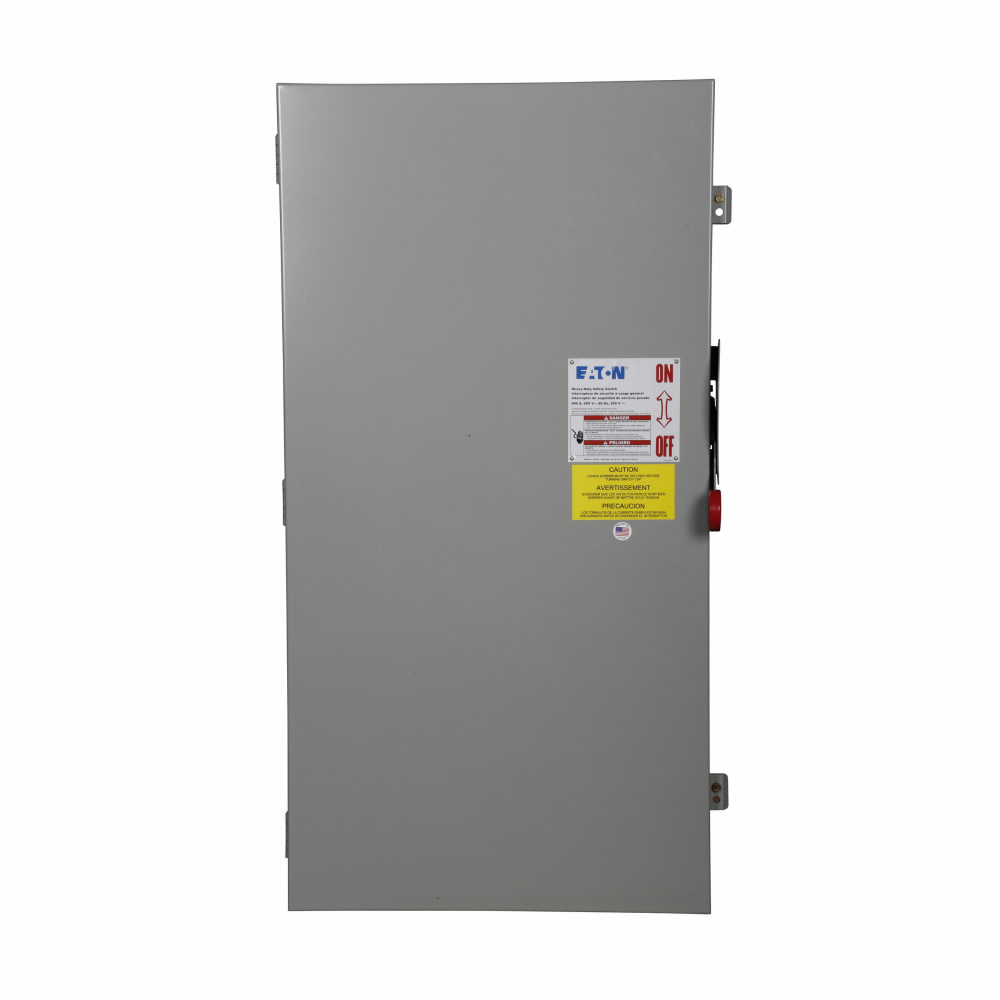

Eaton DH365NGK Heavy Duty Safety Switch 400 A NEMA 1

Product Description

The Eaton DH365NGK Heavy Duty Safety Switch is designed for reliable power distribution. It is a single-throw fused safety switch with a rating of four hundred amps and is suitable for various applications.

• Constructed from painted steel with NEMA 1 enclosure.
• Operates at 600 volts, ideal for commercial and institutional buildings.
• Supports three poles and four wires for flexibility in wiring configurations.

Product Highlights

This switch provides a visible means of disconnection to enhance safety and ensure service continuity in critical applications.

Product Information

Standard Information

• Brand: Eaton
• MPN: DH365NGK

Technical Specifications

• Catalog Number: DH365NGK
• Voltage Rating: 600 V
• Amperage Rating: 400 A
• Number of Poles: 3
• Number of Wires: 4
• Enclosure Rating: NEMA 1
• Material: Painted steel
• Dimensions: 45.5 in L x 24.38 in W x 10.25 in H
