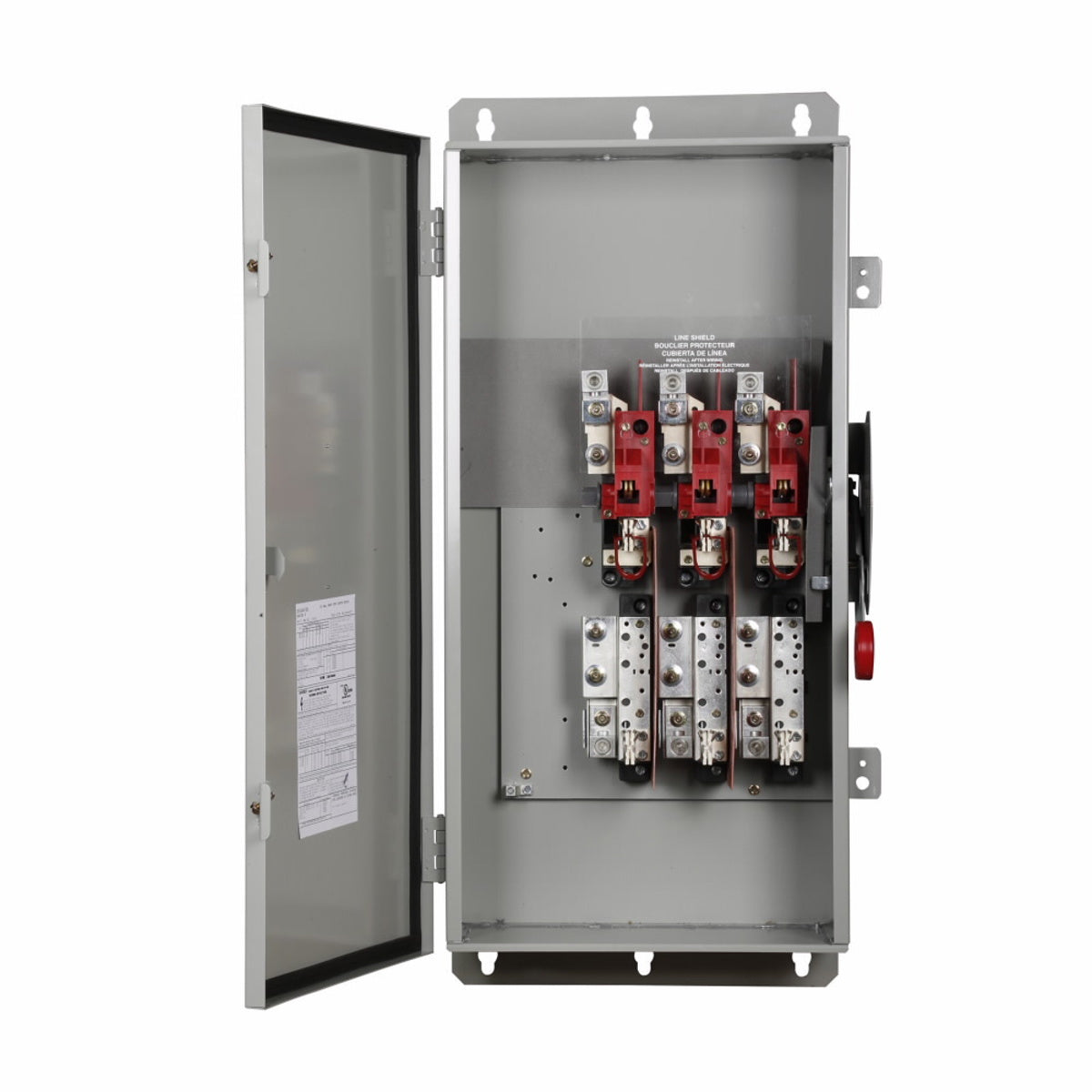

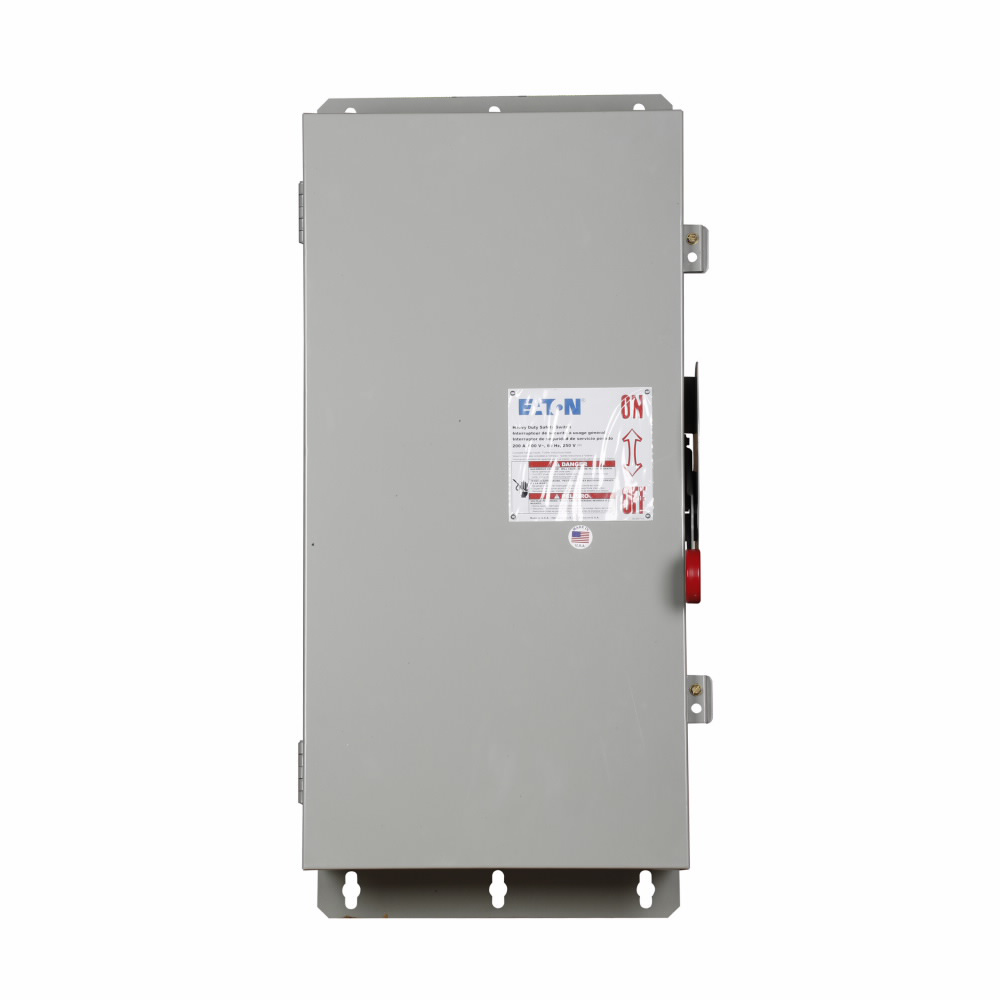

Eaton DH364FDK Heavy Duty Fusible Safety Switch 200A NEMA 12/3R

Product Description

Eaton DH364FDK is a heavy-duty, single-throw fused safety switch with a capacity of two hundred amperes. This model is designed for applications where reliability and safety are critical. It features a NEMA twelve-three R enclosure made from painted galvanized steel. This switch is fusible without a neutral and operates on a three-pole, three-wire system, rated for up to six hundred volts.

• Rated for 200A with NEMA 12/3R enclosure
• Suitable for 3 pole, 3 wire configurations
• Capable of handling up to 150Hp at 600V

Product Highlights

This switch is ideal for use in commercial and institutional buildings. It provides a reliable means of disconnect for power distribution and controls.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Catalog Number: DH364FDK
• Voltage Rating: 600V
• Amperage Rating: 200A
• Material: Steel
• Enclosure: NEMA 12/3R
• Dimensions: 37.5 in L x 19 in W x 11.5 in H
• Number of Poles: 3
• Country of Origin: United States
