Product Description

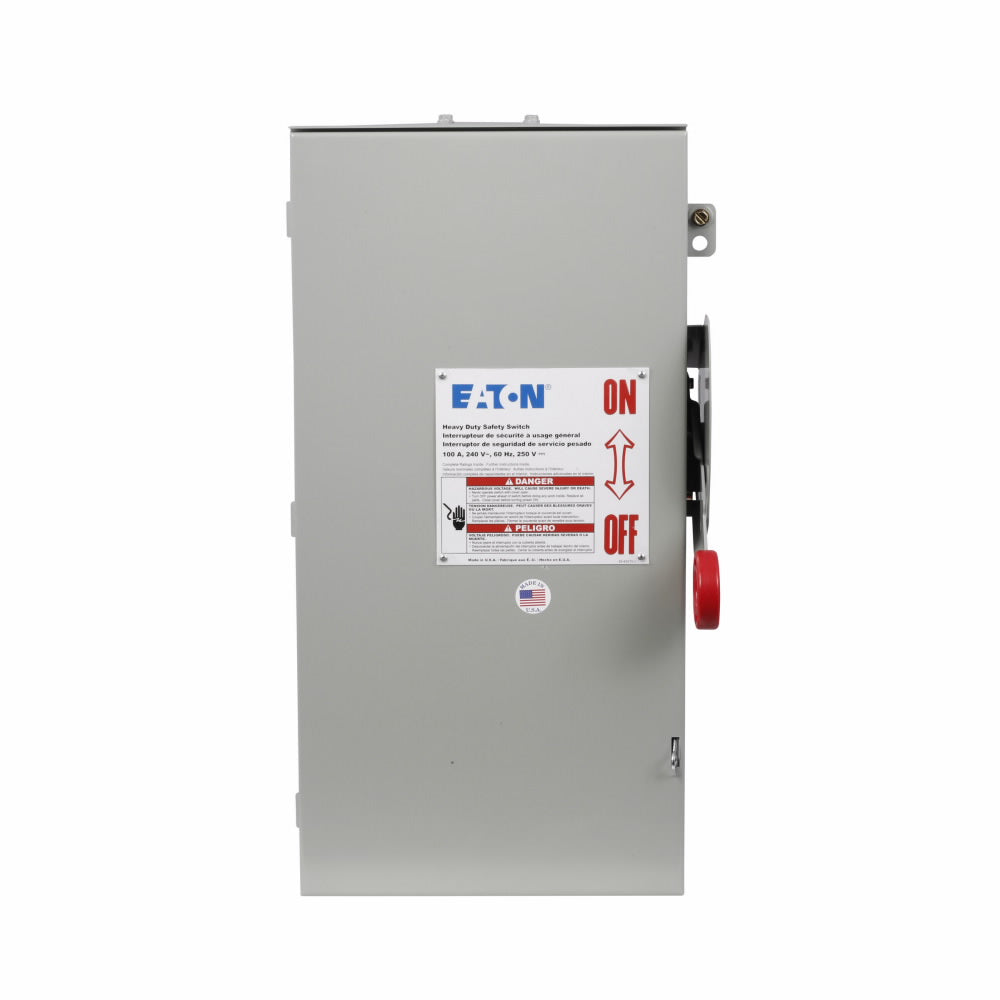

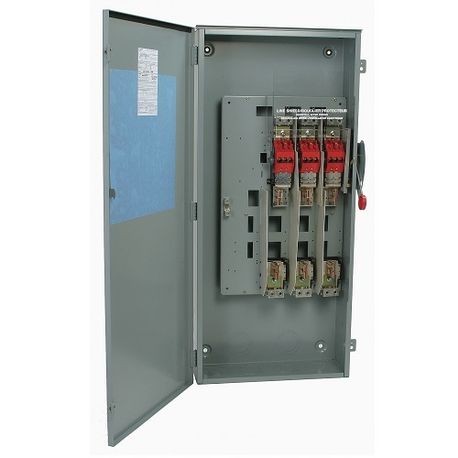

The EATON DH363URK is a heavy-duty non-fusible single throw safety switch designed for effective power management. Operating at 600 volts with a capacity of one hundred amperes, this switch is suitable for various applications including commercial and industrial use. This model features three poles and is compliant with NEMA 3R standards, providing reliable performance in diverse conditions.
- Rated for 600 VAC and 100 A
- Designed for heavy-duty applications with TPST contact
- Built from galvanized steel for enhanced durability
Product Highlights
The EATON safety switch improves personnel safety and equipment protection through clearly visible disconnect means. It is suitable for applications where service continuity is critical.
Product Information
Standard Information
-
Manufacturer: EATON
-
Catalog Number: DH363URK
Technical Specifications
-
Type: Heavy Duty Non-Fusible Single Throw
-
Phase: 1/3 ph
-
NEMA Rating: 3R
-
Material: Steel
-
Dimensions: 22-1/2 inches L x 12-1/2 inches W x 8-1/2 inches H
-
Horsepower: 50 hp, 100 hp
-
Voltage Rating: 600 VAC
-
Amperage Rating: 100 A
-
Number of Poles: 3
-
Number of Wires: 3
