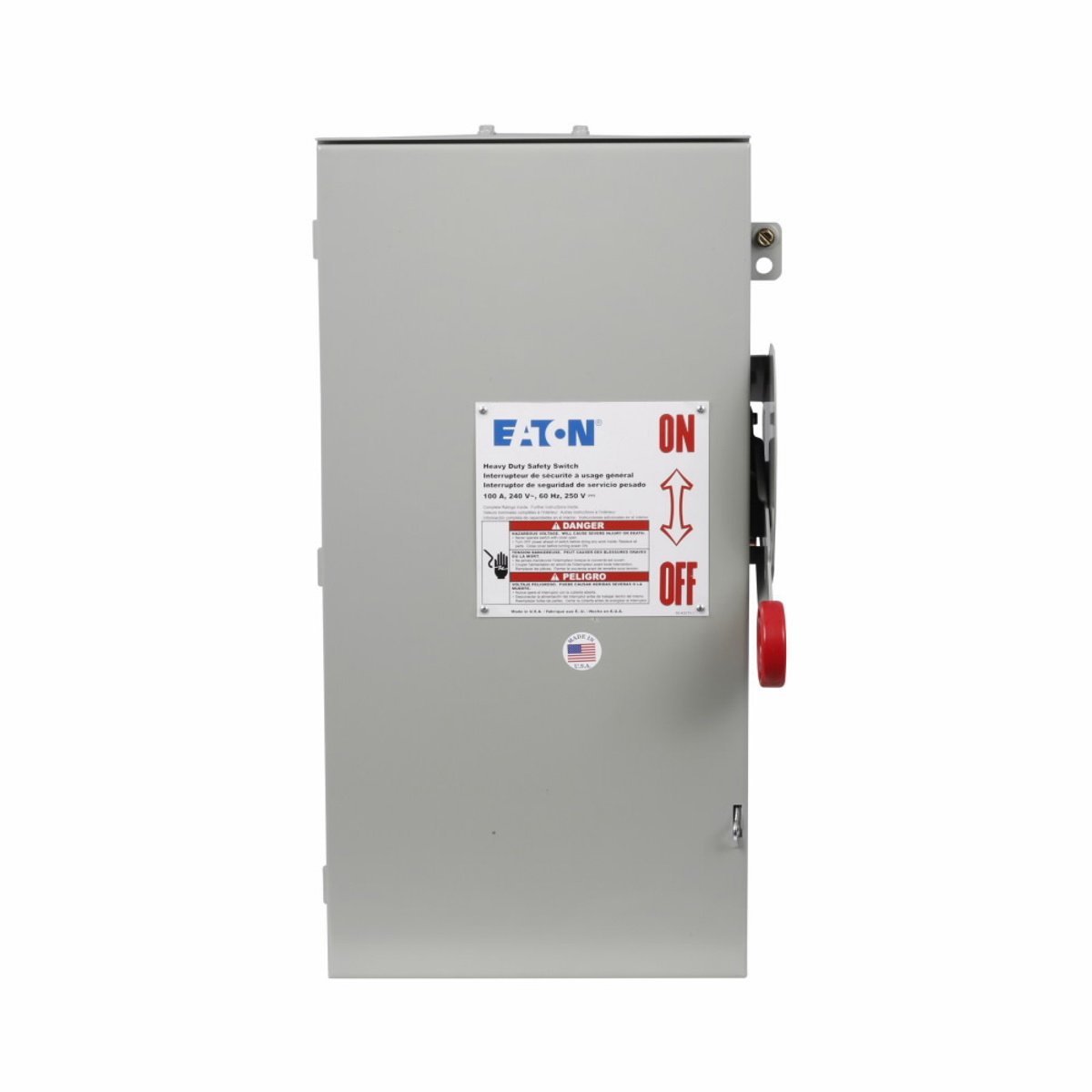

Eaton DH363NRK K Series Heavy Duty Fusible Safety Switch 100 A NEMA 3R

Product Description

Eaton's DH363NRK is a heavy-duty safety switch designed for reliable operation in various applications. It is rated at one hundred amps and features NEMA three R enclosure, suitable for outdoor use. This switch allows manual operation to open and close circuits while providing overcurrent protection through field-installed fuses.

• Amperage Rating: 100 A
• NEMA Rating: 3R
• Voltage Rating: 600 V

Product Highlights

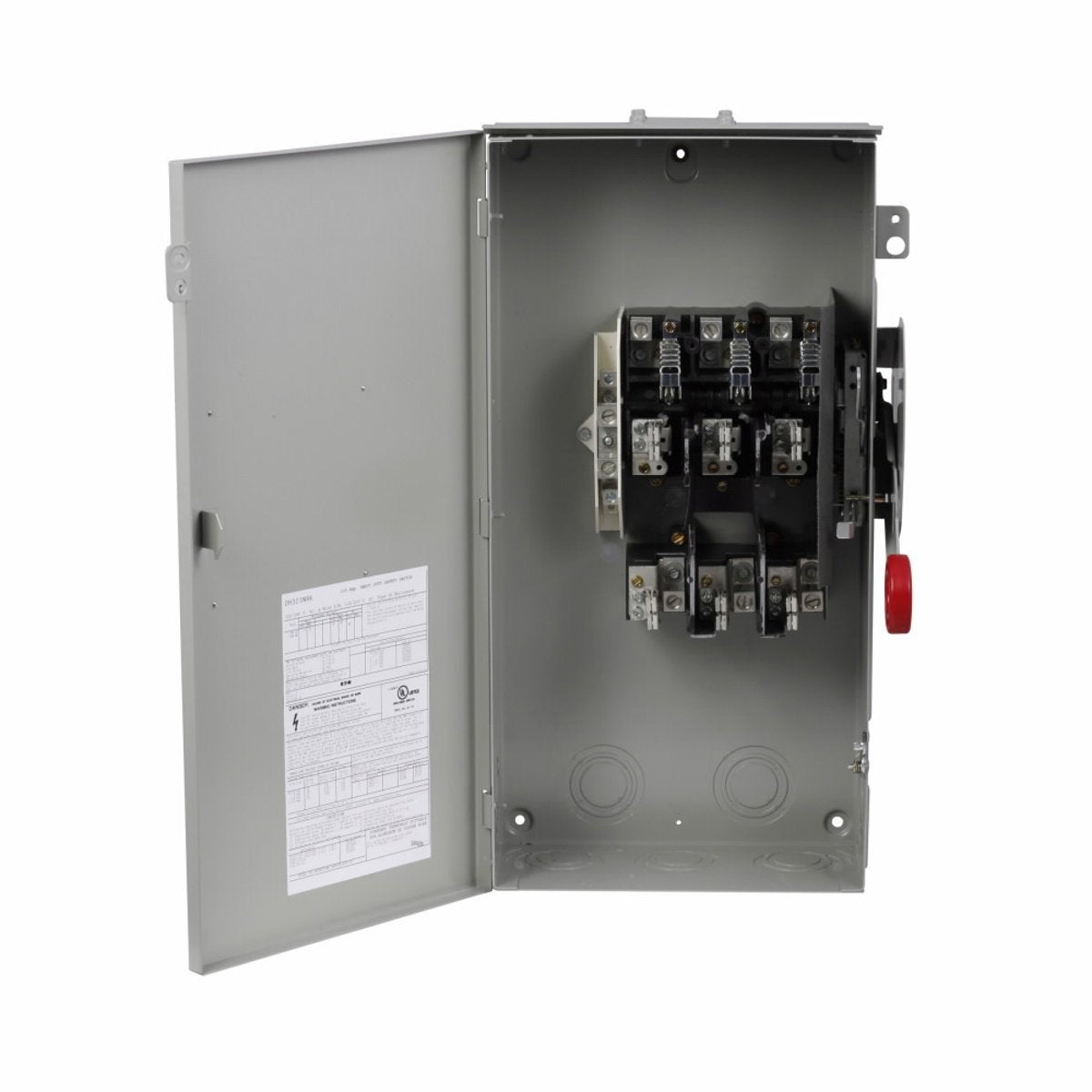

This safety switch includes features such as a clearly visible handle, triple padlocking capability, and a built-in line shield for added protection against accidental contact. It meets UL 98 standards for safety and reliability.

Product Information

Standard Information

• Manufacturer: Eaton
• Country of Origin: United States

Technical Specifications

• Catalog Number: DH363NRK
• Number of Poles: 3
• Enclosure Material: Painted galvanized steel
• Application: Commercial and institutional buildings
• Fuse Provision: Fusible
• Horsepower Rating: 30 hp at 480 VAC, 75 hp at 600 VAC
• Standard: UL Listed
• Dimensions: 22.5 in L x 12.75 in W x 8.5 in H
