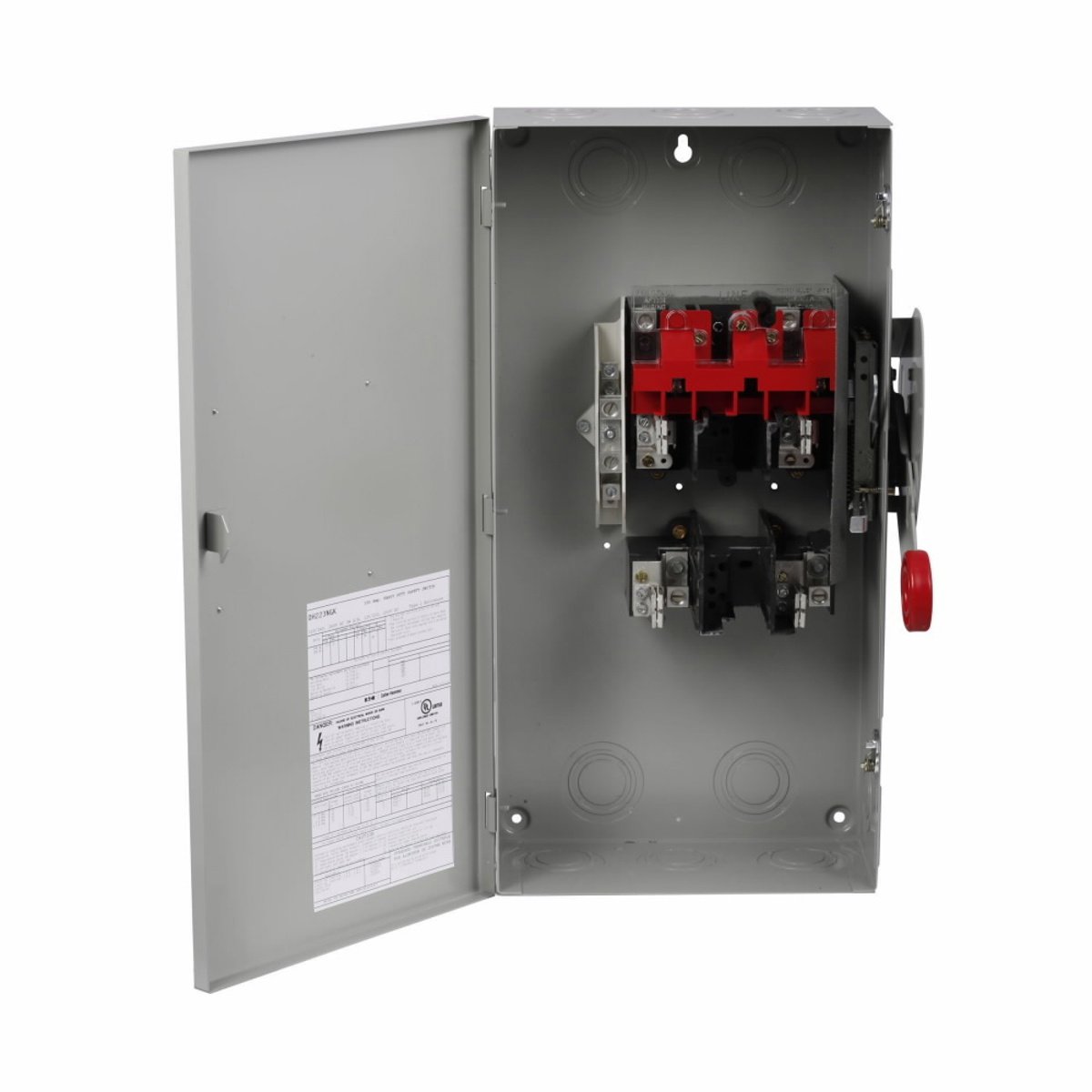

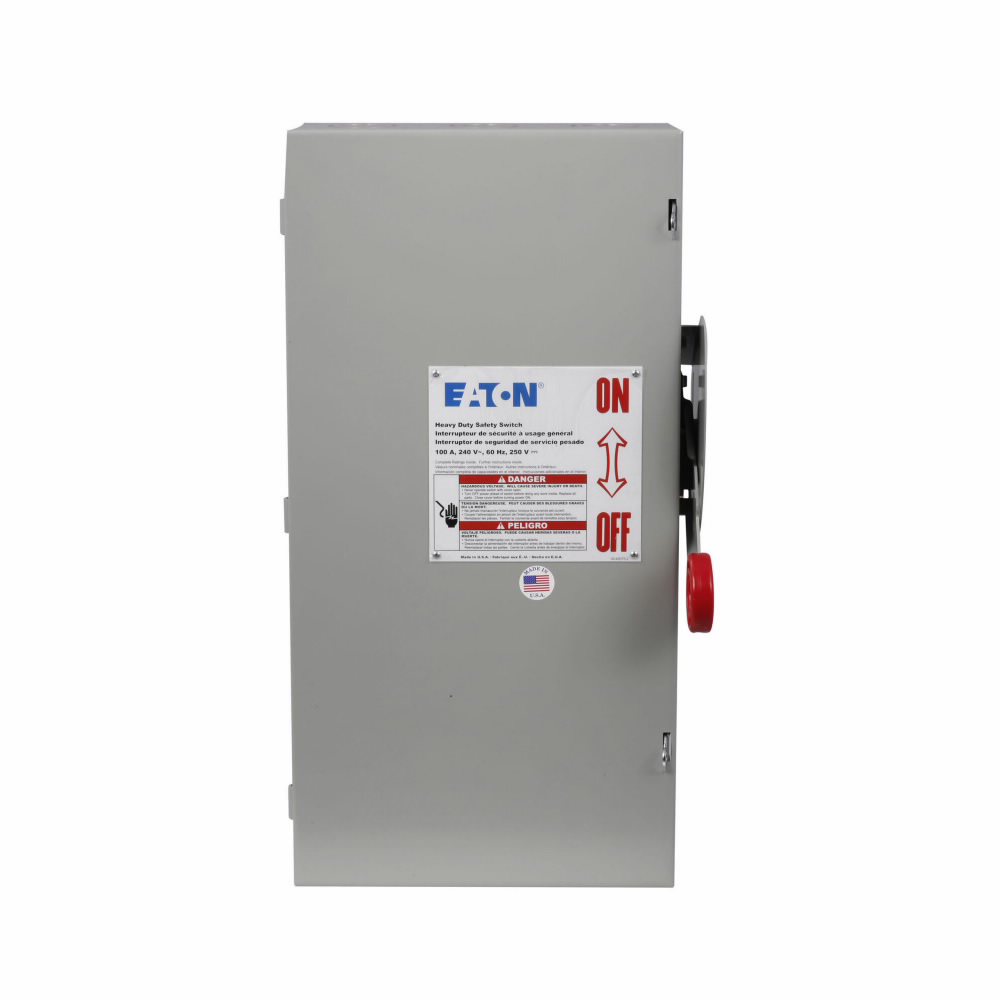

Eaton DH363NGK Heavy Duty Safety Switch 100 A NEMA 1

Product Description

The Eaton DH363NGK is a heavy-duty safety switch designed for reliable performance in various commercial and institutional applications. This single-throw fused safety switch is rated at one hundred amperes and supports a voltage of six hundred. It features a NEMA one enclosure made of painted steel, ensuring durability in everyday use.

• NEMA 1 enclosure for indoor applications
• 100 A amperage rating with three poles and four wires
• UL listed and compliant for safety and reliability

Product Highlights

This safety switch is ideal for applications that require dependable performance and safety mechanisms. It allows for easy access for maintenance while providing a clear means of disconnecting power.

Product Information

Standard Information

• Catalog Number: DH363NGK
• Brand: Eaton

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 100 A
• Material: Steel
• Standard: UL Listed
• NEMA Rating: 1
• Number of Poles: 3
• Number of Wires: 4
• Applications: Commercial and Institutional Buildings
