Eaton DH363NDKW ETN DH363NDKW 100A/3P HD FUS Wdw Sf

Product Description

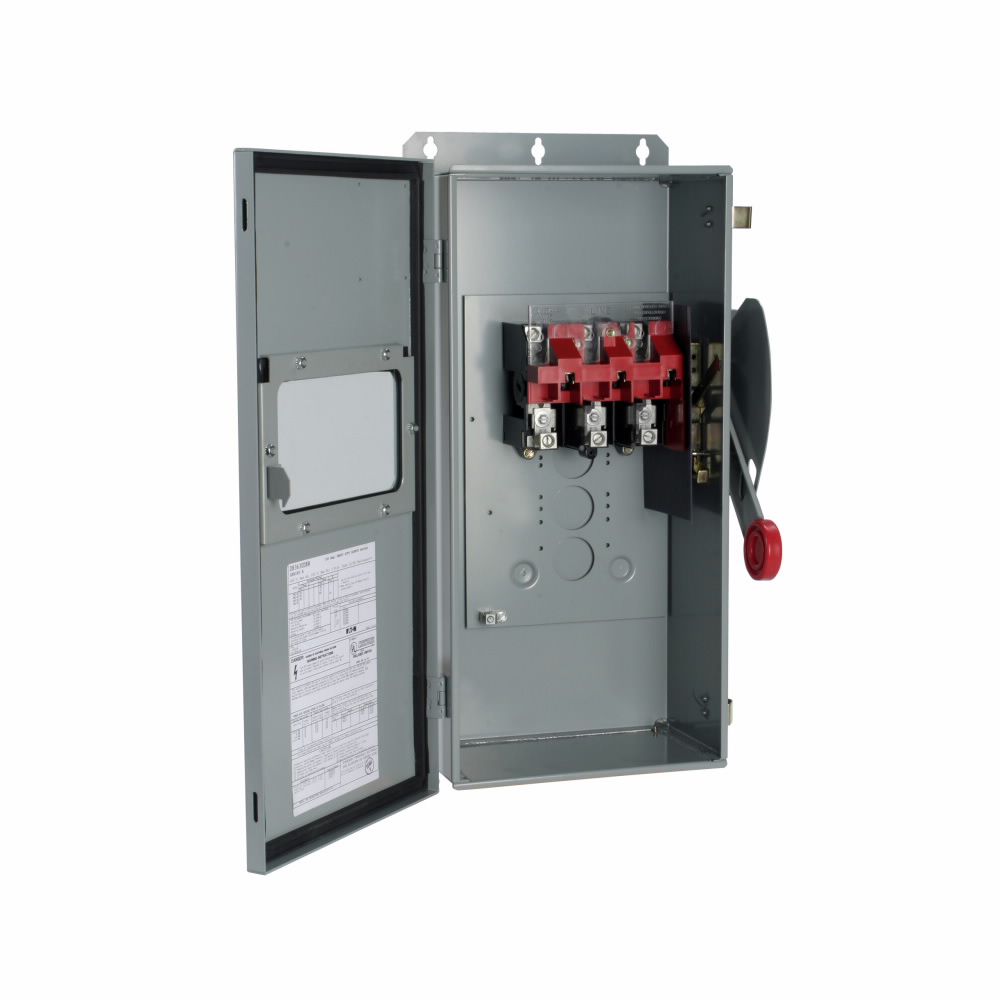

Eaton DH363NDKW is a heavy-duty fusible safety switch designed for reliable electricity control with enhanced visible blades. This switch operates at one hundred amperes and features three poles and four wires suitable for various commercial and institutional applications. The enclosure is made from painted galvanized steel, ensuring durability and safety.

• Enhanced visible blade for easy identification of on/off positions
• Built for commercial environments with NEMA 12/3R ratings
• Handles maximum horsepower ratings of thirty to seventy-five hp

Product Highlights

This safety switch features an interlocking mechanism to prevent accidental activations and supports field-installed fuses for overcurrent protection.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: DH363NDKW

Technical Specifications

• Height: 8 inches
• Length: 25-1/2 inches
• Width: 13-1/4 inches
• Weight: 30 lb
• Amperage Rating: 100 A
• Voltage Rating: 600 V
• Number of Poles: 3
• Number of Wires: 4
• Material: Steel
• Enclosure: NEMA 12/3R
• Special Features: Enhanced visible blade
• Application: Commercial / Institutional Buildings
• Standard: UL Listed
• Catalog Number: DH363NDKW
