Product Description

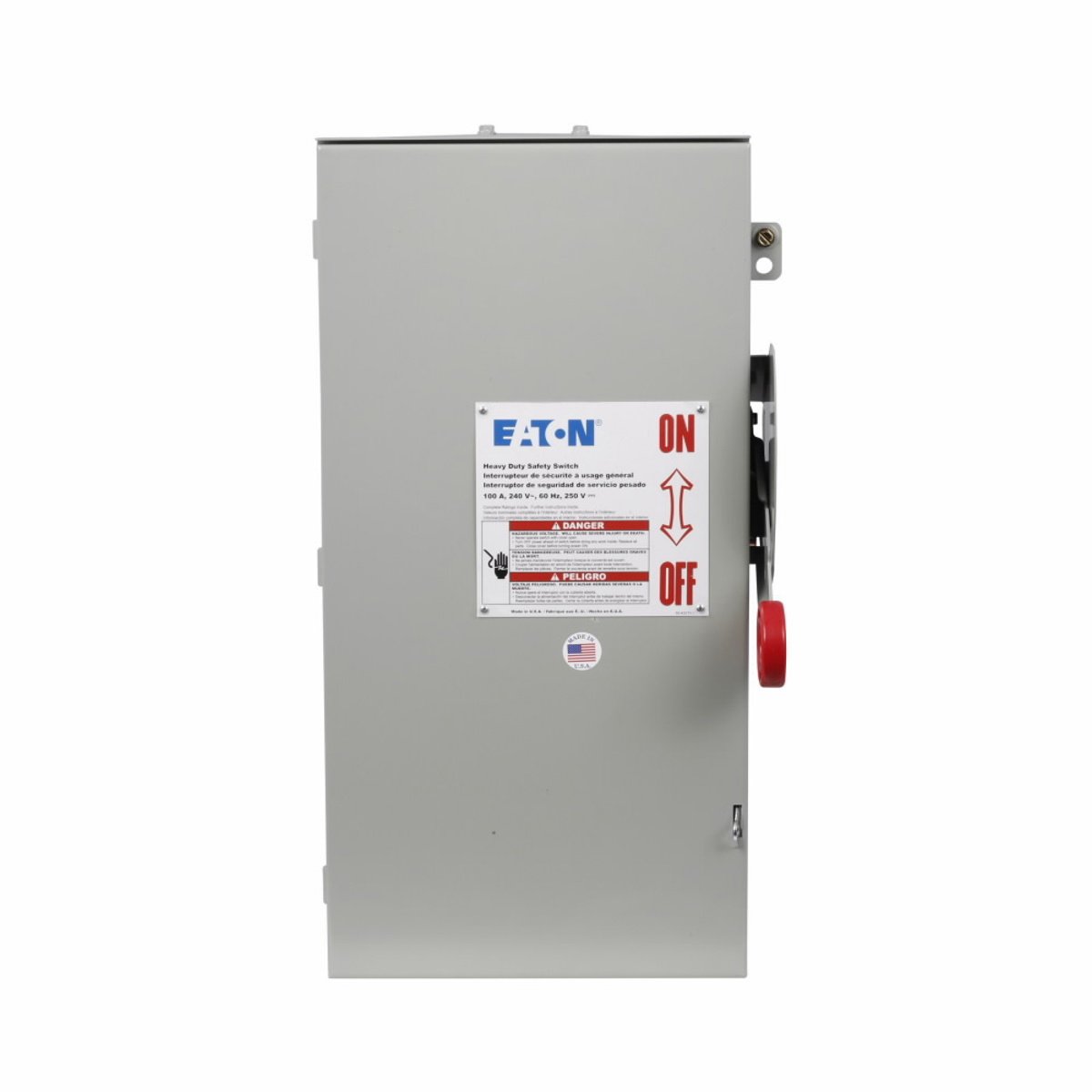

The EATON DH363FRK is a heavy-duty fusible safety switch designed for power distribution applications. It operates at 600 volts and supports a maximum current of one hundred amps. The switch is suitable for three-phase systems and can handle horsepower ratings of up to forty to seventy-five. This model features a visible blade mechanism for enhanced operational safety.
- Rated for 600 VAC and 100 A
- Three-pole, three-wire design
- Constructed from painted galvanized steel for durability
Product Highlights
This safety switch is ideal for commercial and institutional power distribution. It follows NEC requirements for easy servicing of HVAC and refrigeration equipment.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: DH363FRK
Technical Specifications
-
Amperage Rating: 100 A
-
Voltage Rating: 600 VAC
-
Horsepower Rating: 40 HP / 75 HP
-
Material: Steel
-
Finish: Painted Galvanized
-
NEMA Rating: 3R
-
Dimensions: 22-1/2 inches L x 12-3/4 inches W x 9 inches H
-
Number of Poles: 3
-
Number of Wires: 3
-
Mounting Type: Panel
-
Insulation Type: Class H
-
Contact Form: TPST
-
Phase: 1/3 ph
-
Series: DH Series
-
Country of Origin: United States
