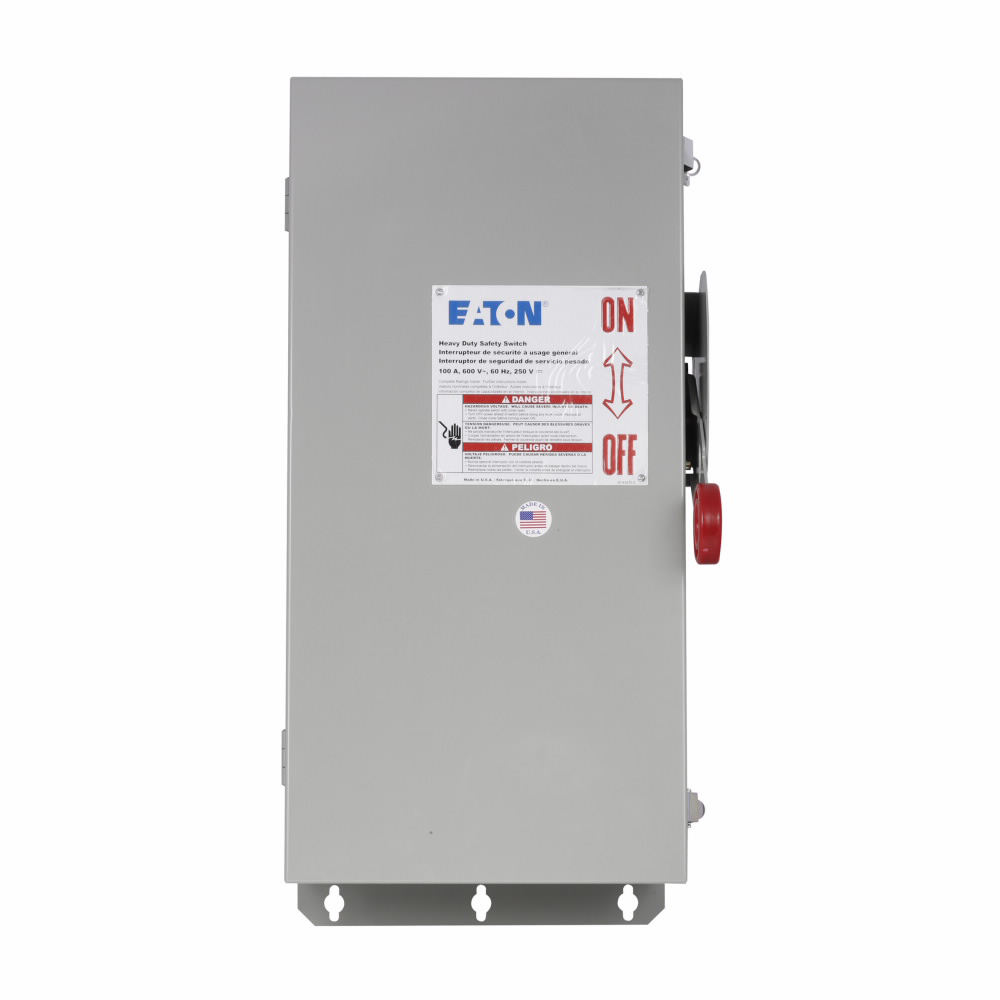

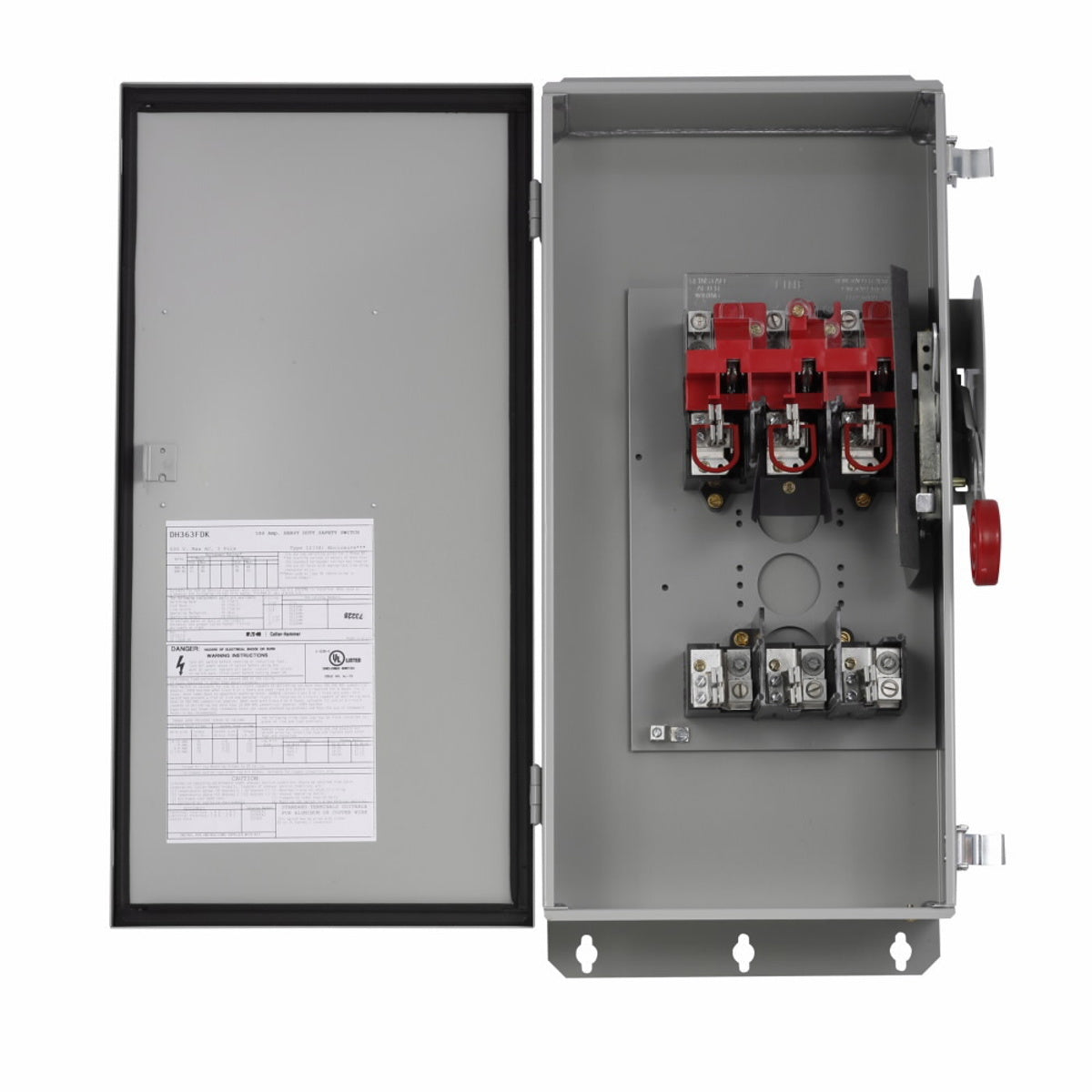

Eaton DH363FDK Heavy Duty Safety Switch 100 A 600 VAC

Product Description

The Eaton DH363FDK Heavy Duty Safety Switch provides reliable service for electrical distribution needs. This switch is rated for one hundred amperes and operates at a voltage of six hundred volts. It has a NEMA twelve and three R enclosure made of painted galvanized steel. The switch is class H rated and is fusible without a neutral connection. It features three poles and three wires, making it suitable for various applications including commercial and institutional projects.

• Heavy duty design ideal for critical applications
• Three-pole, three-wire configuration
• UL listed for safety and reliability

Product Highlights

The Eaton DH363FDK Heavy Duty Safety Switch is designed to improve safety and protect equipment in power distribution systems. Its robust construction meets industry standards for safety and performance.

Product Information

Standard Information

• Catalog Number: DH363FDK
• Brand: Eaton

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 100 A
• Material: Steel
• Enclosure Type: NEMA 12/3R
• Dimensions: 25-1/2 in L x 13-1/4 in W x 9 in H
• Number of Poles: 3
• Number of Wires: 3
• Horsepower Rating: 30 hp, 40 hp, 60 hp, 75 hp
• Application: Commercial, Institutional Power Distribution
