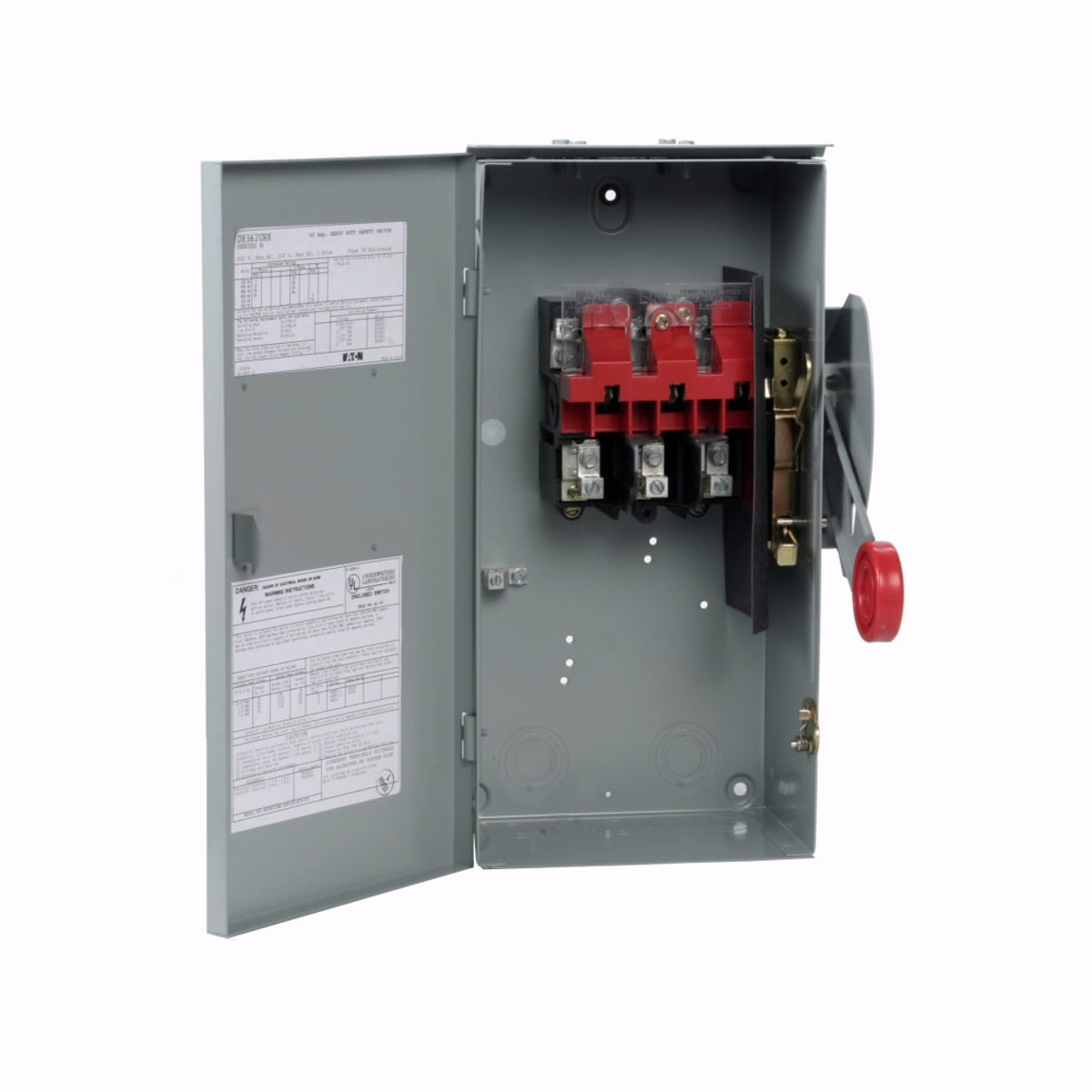

EATON DH362URK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 60 A, 25 hp, 60 hp

Product Description

The EATON DH362URK is a heavy-duty non-fusible single throw safety switch rated for 600 VAC and 60 A. This switch supports up to 25 horsepower and 60 horsepower, making it suitable for a variety of applications in commercial and industrial settings. It is designed for panel mounting and features three poles and three wires, with a TPST contact form.

• Rated for 600 VAC and 60 A.
• Constructed with painted galvanized steel.
• Includes a clearly visible palm fitting red handle for easy operation.

Product Highlights

This safety switch is essential for ensuring reliable operation in power distribution and control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DH362URK

Technical Specifications

• Type: Heavy Duty Non-Fusible Single Throw
• Phase: 1/3 ph
• Material: Steel
• Finish: Galvanized/Painted
• Dimensions: 16.5 in L x 9.12 in W x 8.31 in H
• Horsepower: 25 hp, 60 hp
• NEMA Rating: 3R
• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Number of Poles: 3
• Number of Wires: 3
