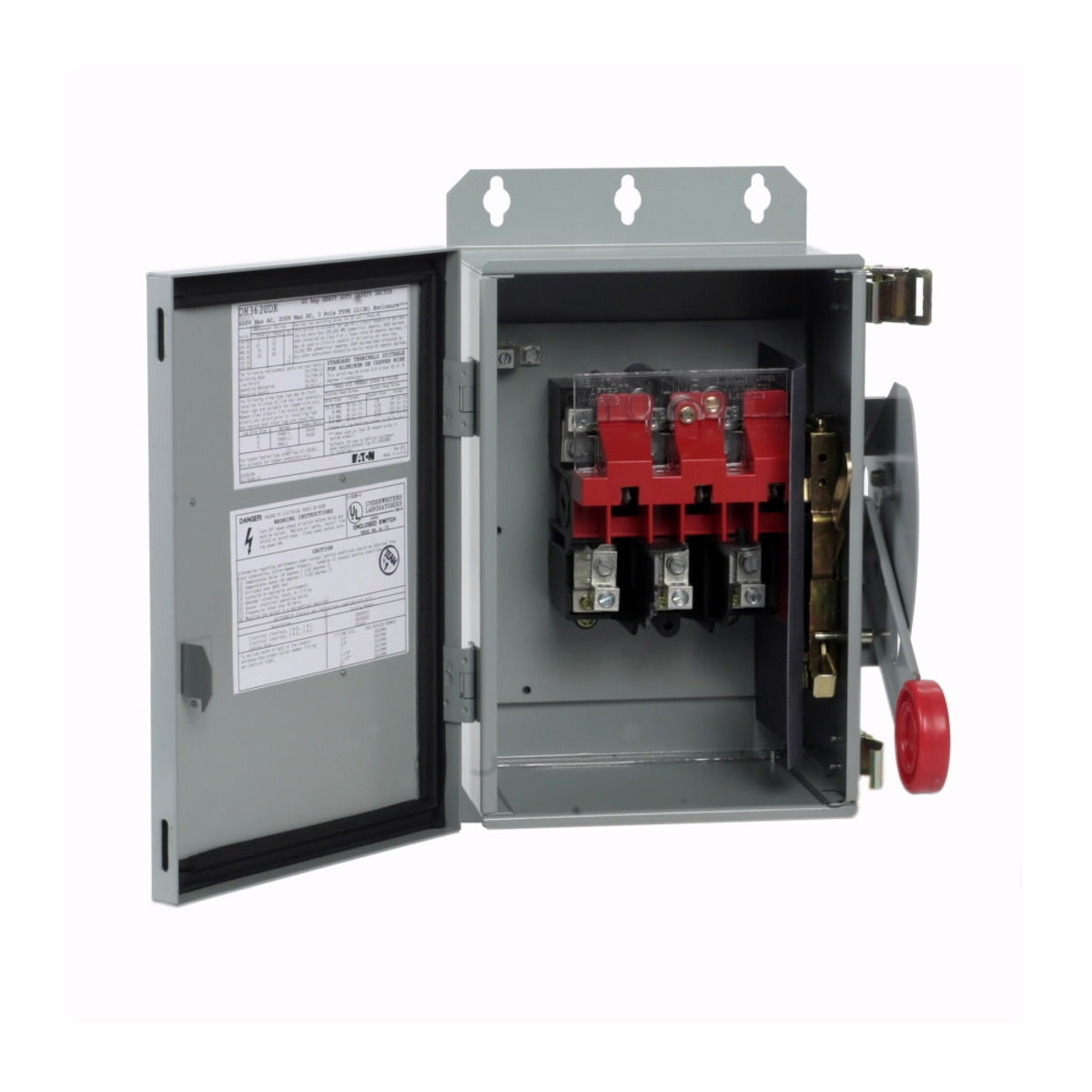

Eaton DH362UDK Heavy Duty Non-Fusible Dusttight Single Throw Safety Switch 600 VAC 60 A NEMA 12

Product Description

Eaton Heavy Duty Non-Fusible Safety Switch, model DH362UDK, provides reliable performance in electrical circuits. This switch is designed for manual load disconnection from the source. It is suitable for commercial use and features a NEMA 12 enclosure.

• Rated for 60 amps and 600 volts
• Three-pole, TPST contact form
• Made from painted galvanized steel for corrosion resistance

Product Highlights

This safety switch is ideal for applications requiring dependable service continuity and safety. Its design includes a clearly visible red handle for operational clarity.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: DH362UDK

Technical Specifications

• Amperage Rating: 60
• Voltage Rating: 600 V
• Phase: 1/3 ph
• Number of Poles: 3
• NEMA Rating: 12
• Dimensions: 16.5 in L x 9.12 in W x 8.31 in H
• Horsepower Ratings: 10 hp at 240 V, 20 hp at 480 V, 25 hp at 600 V
• Short Circuit Current Rating: 200 kA
• Material: Painted galvanized steel
