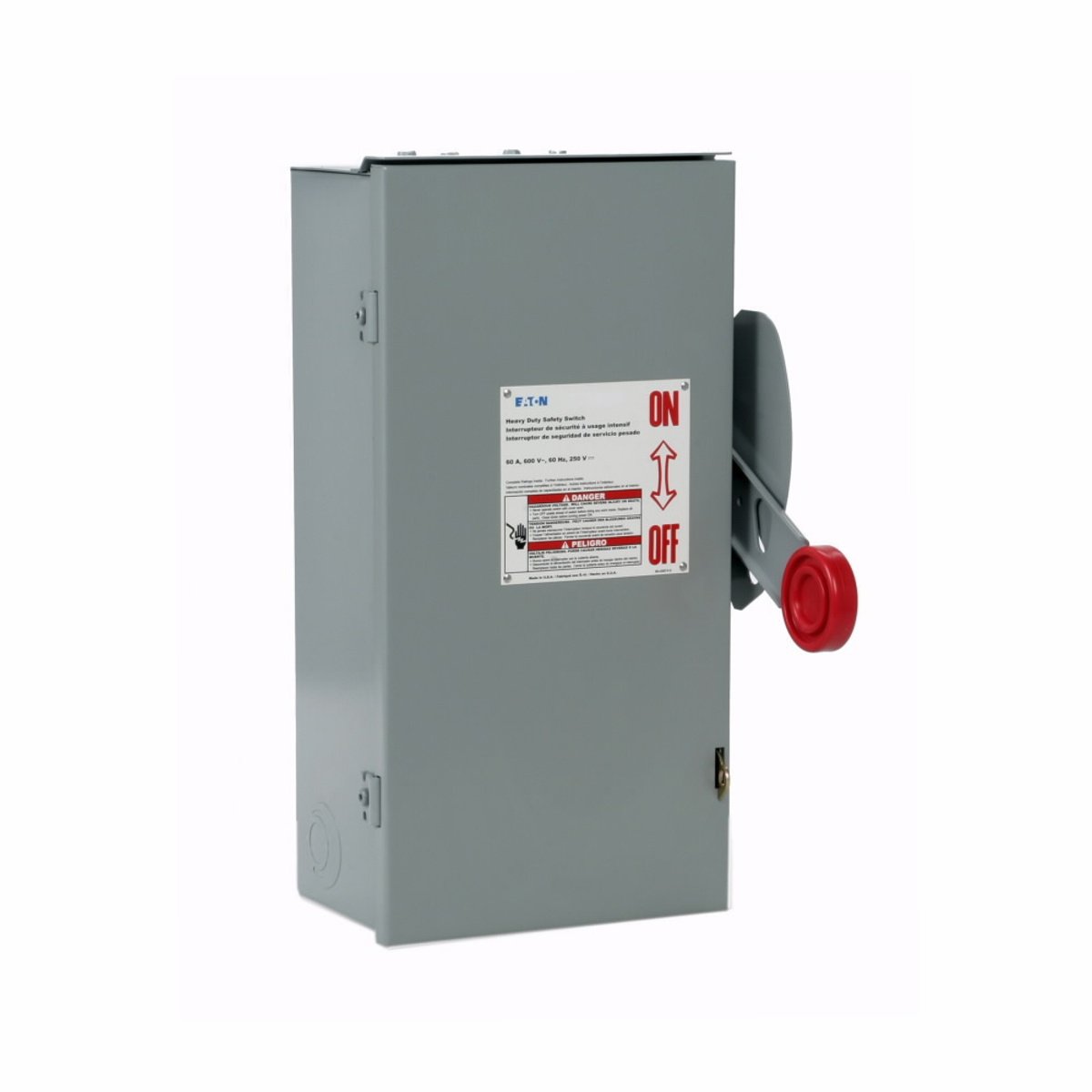

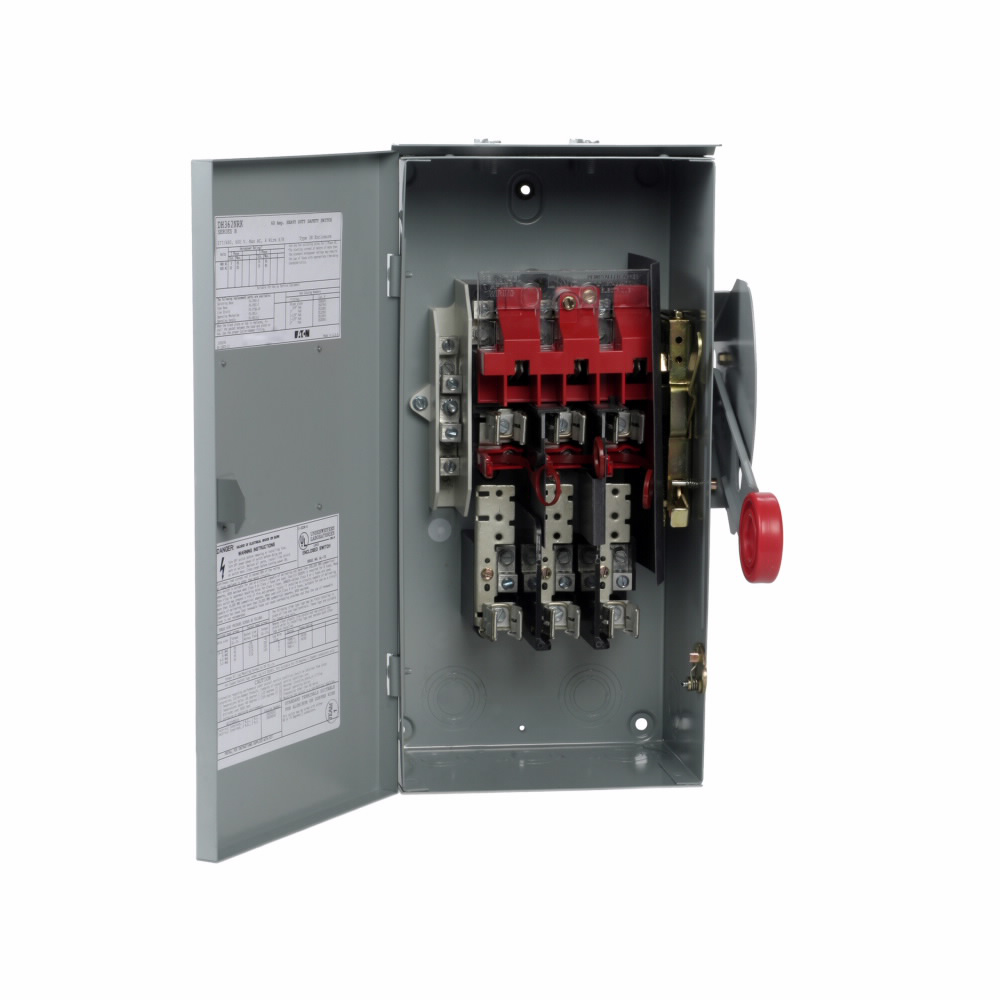

Eaton DH362NRK Heavy Duty Safety Switch 60A NEMA 3R

Product Description

The Eaton DH362NRK is a heavy-duty fusible safety switch designed for reliable circuit interruption and overcurrent protection. It features a painted galvanized steel enclosure and is rated for sixty amperes and six hundred volts. This three-pole, four-wire switch is suitable for various applications including commercial and institutional buildings.

• Fusible with neutral for effective protection
• Visible blade operation for enhanced safety
• Appropriate for up to fifty horsepower loads

Product Highlights

The Eaton safety switch promotes safety with its visible blade and robust construction. It is ideal for electrical service entrances and critical load applications.

Product Information

Standard Information

• Catalog Number: DH362NRK
• Brand: Eaton

Technical Specifications

• Enclosure Type: NEMA 3R
• Amperage Rating: 60 A
• Voltage Rating: 600 V
• Horsepower Rating: 20/25/30/50 HP
• Number of Poles: 3
• Number of Wires: 4
• Material: Steel
• Country of Origin: United States
