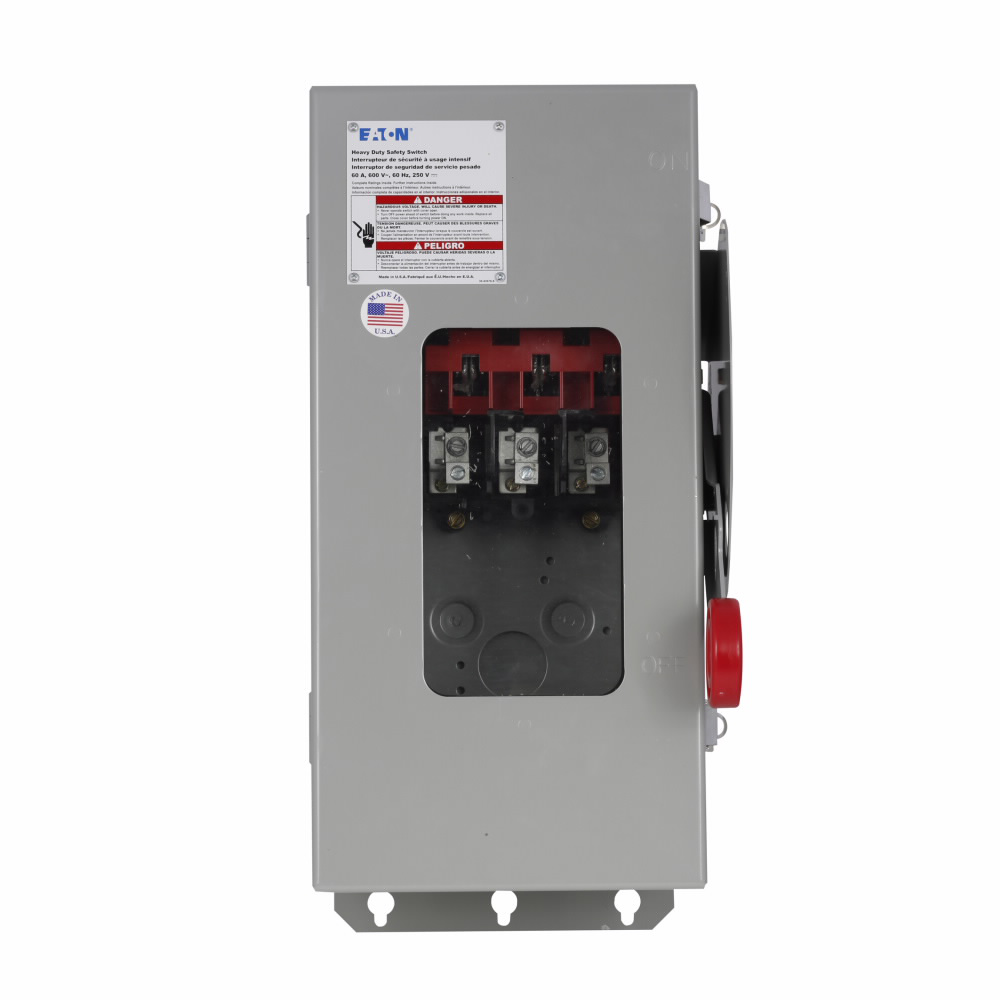

Eaton DH362NDKW 60A/3P Heavy Duty Fusible Dusttight Safety Switch

Product Description

The Eaton DH362NDKW is a heavy-duty fusible safety switch designed to meet high-performance requirements and operate efficiently in various environments. This model features a maximum voltage of 600 volts and a current rating of sixty amps. The switch is suitable for industrial and commercial applications and provides a reliable means of controlling electrical circuits.

• Three poles and four wires for versatile applications.
• Accepts class H fuses for over-current protection.
• NEMA 12 and 3R rated enclosure suitable for indoor and outdoor use.

Product Highlights

The Eaton DH362NDKW offers a robust and safe solution for managing electrical circuits in commercial and institutional settings.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: DH362NDKW

Technical Specifications

• Type: Heavy Duty Fusible Safety Switch
• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Dimensions: 18 inches L x 9.25 inches W x 8.5 inches H
• Material: Steel
• Enclosure: NEMA 12
• Number of Poles: 3
• Number of Wires: 4
