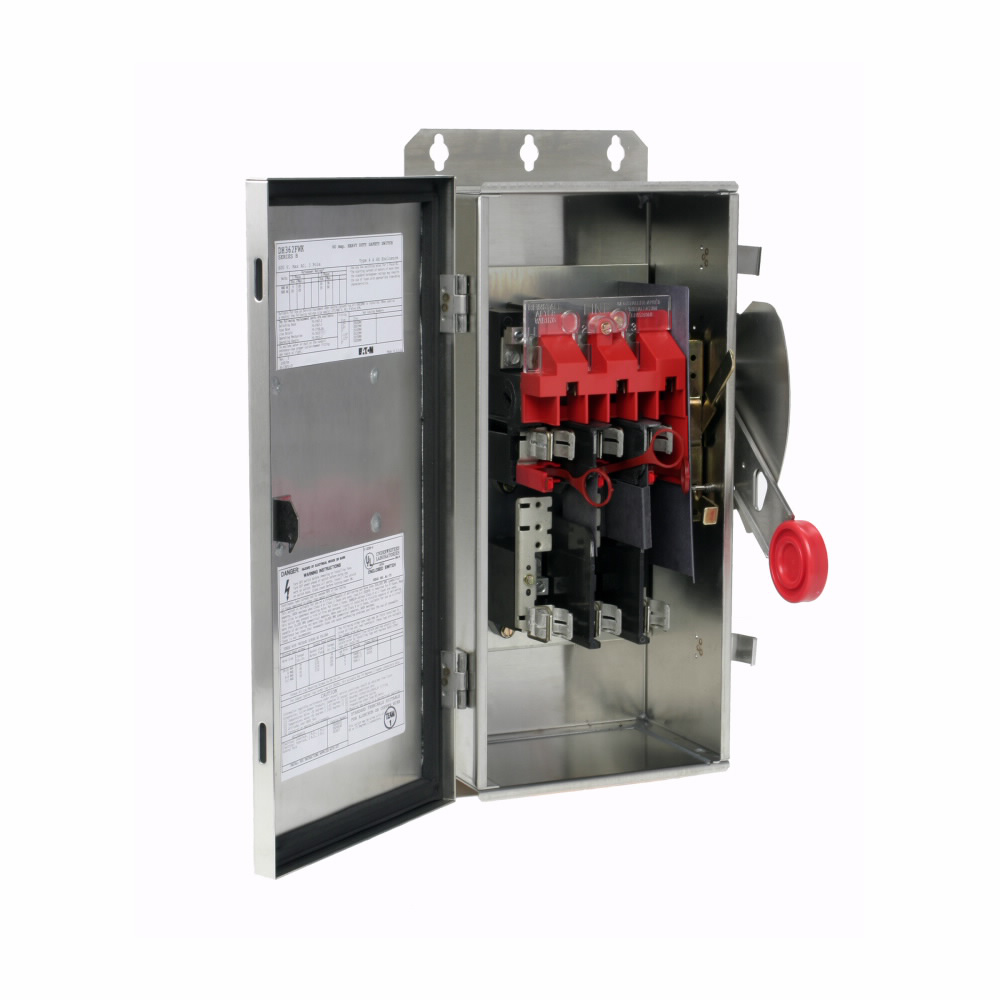

Eaton DH362FWK 60A/3P HD Fusible Safety Switch

Product Description

Eaton DH362FWK is a 60 amp heavy duty fusible safety switch. This product can manually open and close circuits and provides overcurrent protection through field-installed fuses. The switch is rated for 600 volts and is designed for both commercial and institutional applications. It features a corrosion-resistant stainless steel enclosure compliant with NEMA 4X standards.

• Heavy duty construction suitable for service entrance use
• Three poles and three wires
• Maximum horsepower rating of twenty to fifty hp

Product Highlights

This switch enhances safety and reliability in power distribution applications. Its corrosion resistant material and robust design make it ideal for challenging environments.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: DH362FWK

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 60 A
• Material: Stainless Steel
• Enclosure Type: NEMA 4X
• Number of Poles: 3
• Number of Wires: 3
• Dimensions: 20 in L x 9.5 in W x 8.5 in H
• Weight: 20 lb
