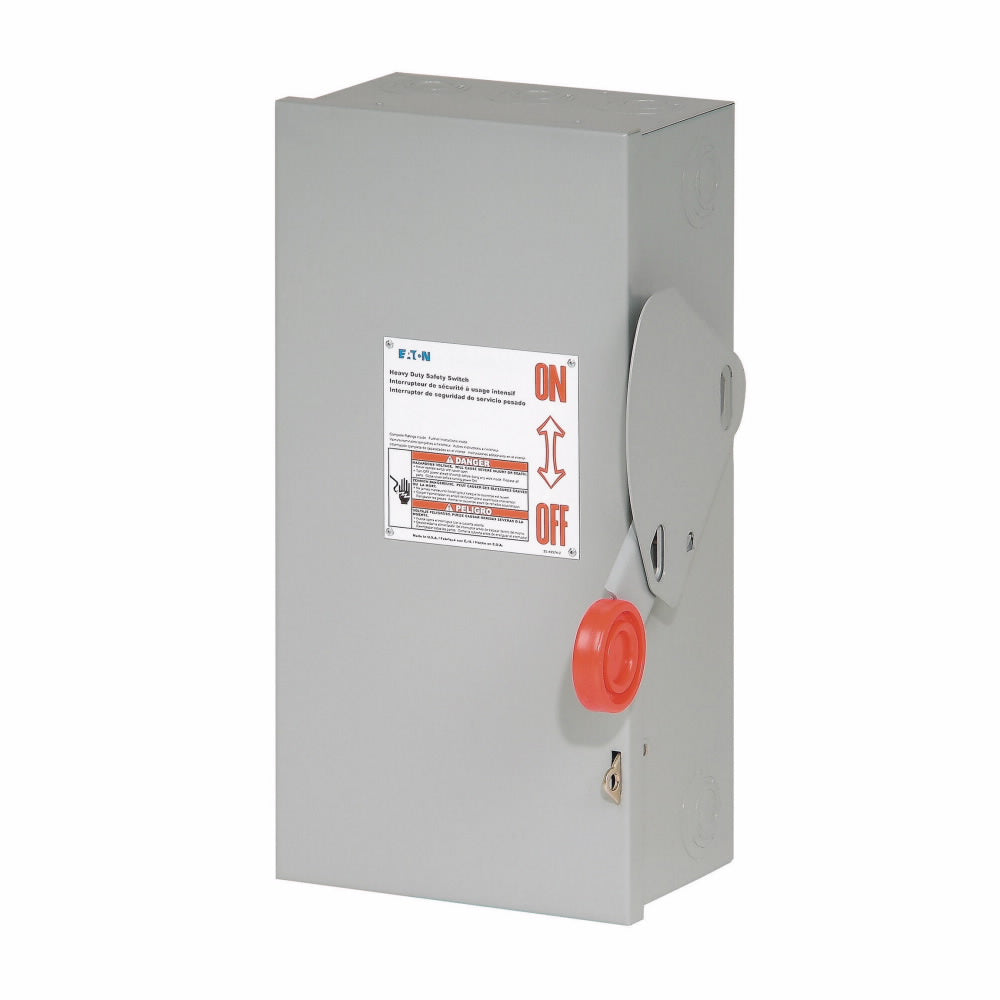

EATON DH362FRK DH Series Heavy Duty Fusible Safety Switch 600 VAC 60 A 25 HP 50 HP TPST Contact

Product Description

The EATON DH362FRK is a heavy-duty fusible safety switch designed for reliable electrical distribution. It operates at a voltage rating of six hundred VAC and handles up to sixty amperes, making it suitable for both light and heavy commercial applications. The switch features a three-pole, three-wire configuration and is NEMA rated to provide protection against environmental conditions.

• Heavy Duty Fusible Design
• Meets NEMA 3R Ratings
• Panel Mount with Steel Construction

Product Highlights

The EATON DH362FRK safety switch ensures safe electrical operations in various industrial environments. It features a visible red handle for easy operation and clear on/off indication, enhancing safety for personnel.

Product Information

Standard Information

• Manufacturer: EATON
• Model Number: DH362FRK

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Number of Poles: 3
• Contact Form: TPST
• Dimensions: 16.5 in L x 9.5 in W x 8.5 in H
• Horsepower: 25 HP, 50 HP
• Material: Steel, Galvanized/Painted
• Mounting Type: Panel
• NEMA Rating: 3R
• Insulation Type: Class H
