Product Description

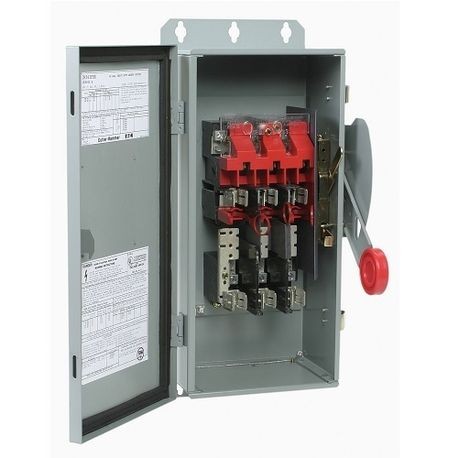

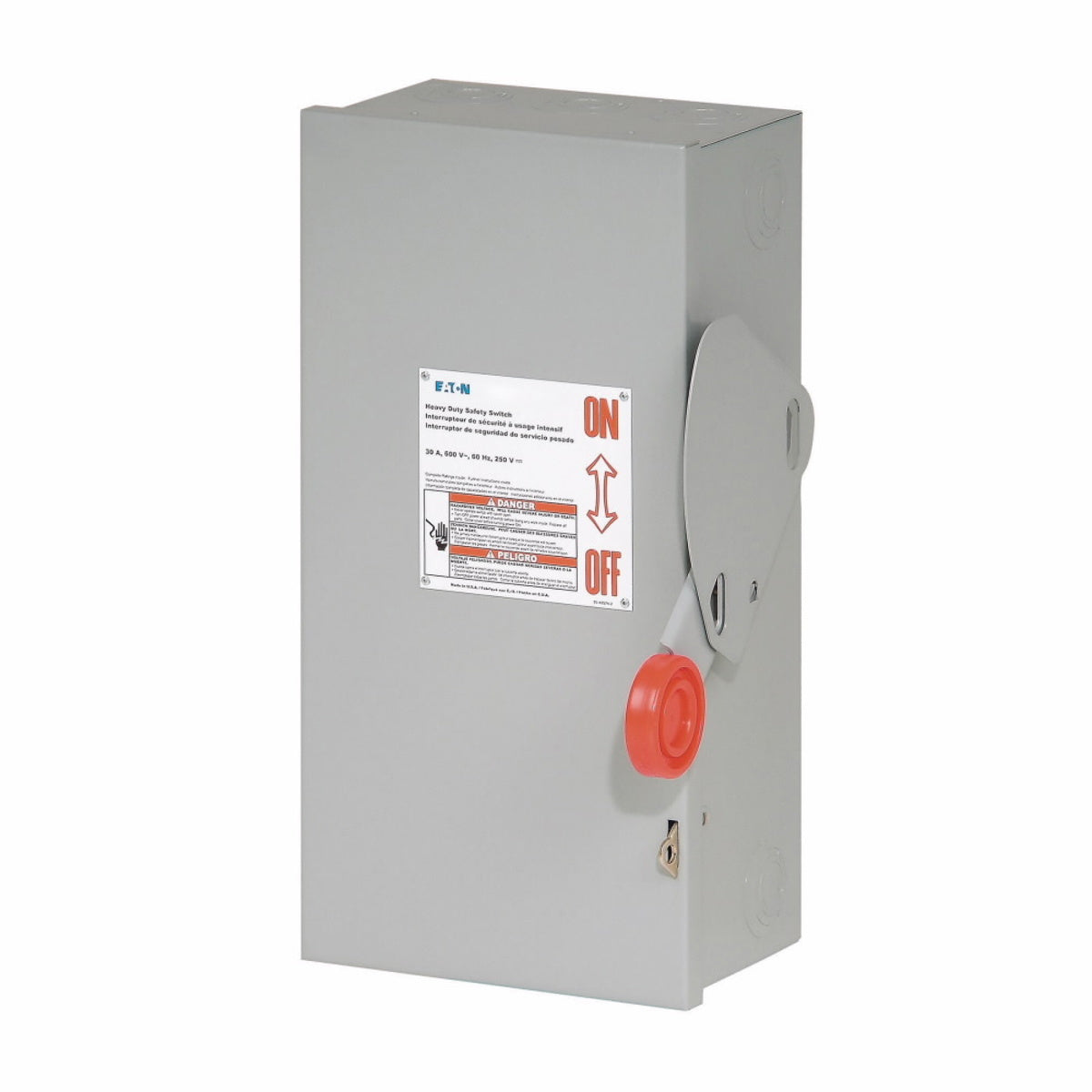

The EATON DH362FGK is a heavy-duty fusible safety switch designed to operate at six hundred volts and handle sixty amps. This switch supports up to twenty-five horsepower for three-phase systems and fifty horsepower for single-phase applications. It is suitable for both indoor usage and commercial power distribution systems.
- Heavy-duty construction for reliability
- Rated for service entrance applications
- Designed for NEMA 1 environments
Product Highlights
This device eliminates the need for a separate one hundred twenty volt circuit for rooftop heating and cooling systems, ensuring safe and efficient operation.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part No: DH362FGK
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 60 A
-
Horsepower: 25 hp, 50 hp
-
Dimensions: 16-1/2 in L x 9-1/2 in W x 8-1/2 in H
-
Contact Form: TPST
-
Enclosure Type: NEMA 1
-
Material: Steel
-
Number of Poles: 3
-
Number of Wires: 3
