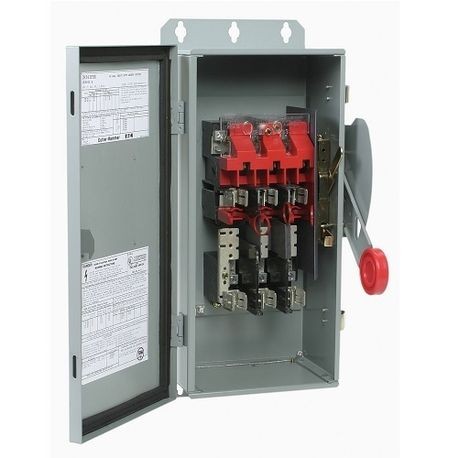

Eaton DH361UWK Heavy Duty Safety Switch 30 A NEMA 4X

Product Description

Eaton DH361UWK is a heavy-duty safety switch designed for reliable power distribution. This single-throw, non-fused switch supports up to thirty amperes. It features three poles and complies with NEMA 4X standards for outdoor use. The switch operates efficiently at various voltages including 600 volts for one-phase and 480 volts for three-phase systems.

• Heavy-duty construction with stainless steel material
• Easy to operate with a visible handle
• Suitable for commercial and institutional buildings

Product Highlights

This device provides a means to connect or disconnect equipment safely. Ideal for environments where safety and reliability are crucial.

Product Information

Standard Information

• Brand: Eaton
• Type: Non-fusible

Technical Specifications

• Catalog Number: DH361UWK
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Material: Stainless Steel
• NEMA Rating: 4X
• Number of Poles: 3
• Dimensions: 10.22 in L x 8.76 in W x 14.14 in H
• Short Circuit Current Rating: 200 kA
