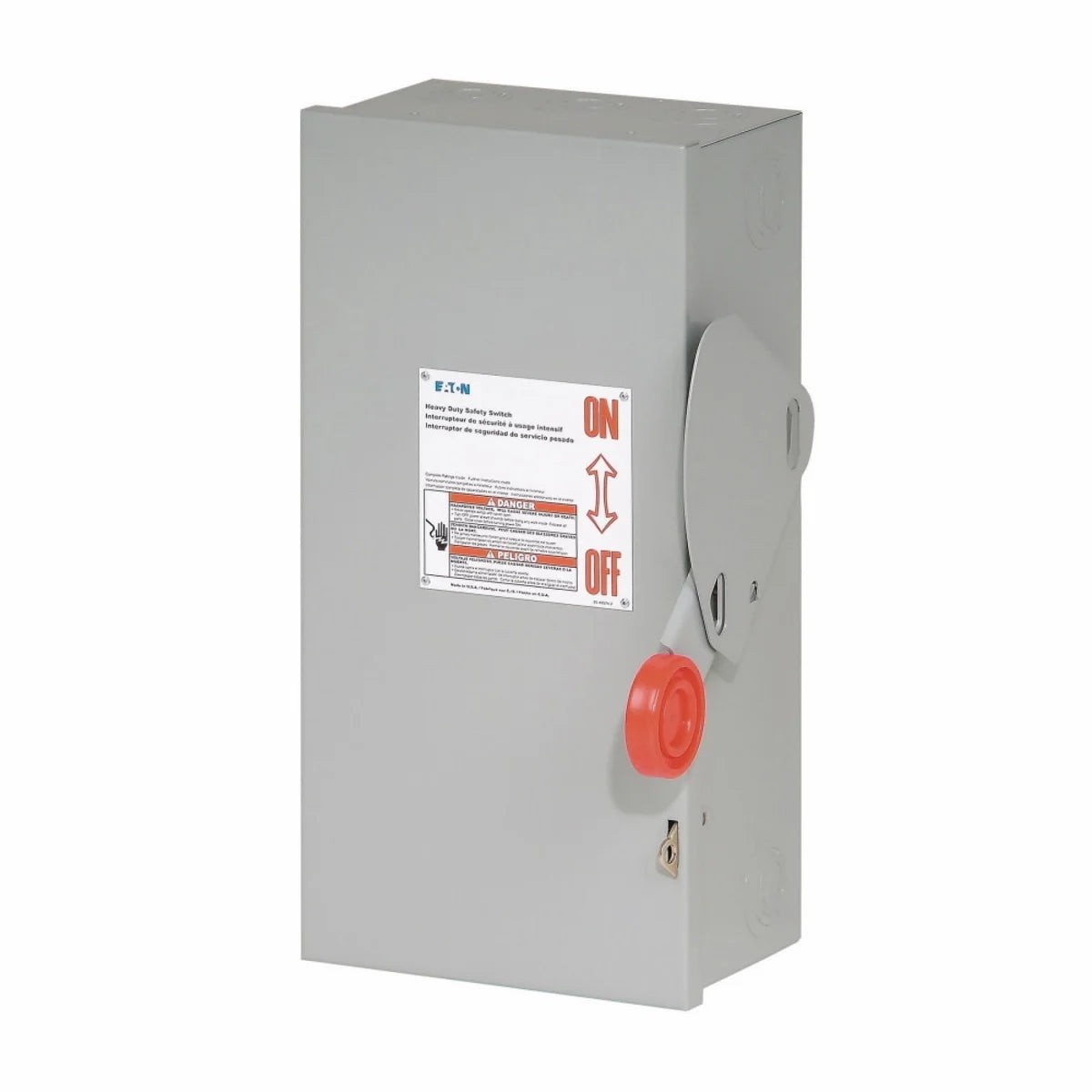

Eaton DH361URK Safety Switch 600VAC 30A 30HP TPST NEMA 3R

Product Description

The Eaton DH361URK is a heavy-duty non-fusible single throw safety switch designed for applications with voltages up to six hundred VAC and a current rating of thirty amps. This switch is suitable for three-phase systems, providing reliable performance where safety and service continuity are essential.

• Rated for voltages up to six hundred VAC.
• Designed for heavy-duty applications, including power distribution.
• Constructed from painted galvanized steel for durability.

Product Highlights

This product is ideal for use in commercial and institutional buildings. It provides a visible means of disconnect, enhancing personnel safety and protecting equipment. The Eaton DH361URK helps eliminate the need for extra circuits in rooftop applications.

Product Information

Standard Information

• Catalog Number: DH361URK
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 V
• Horsepower: 30 hp
• Number of Poles: 3
• NEMA Rating: 3R
• Dimensions: 16.5 inches L x 9.12 inches W x 8.31 inches H
• Material: Steel
