Product Description

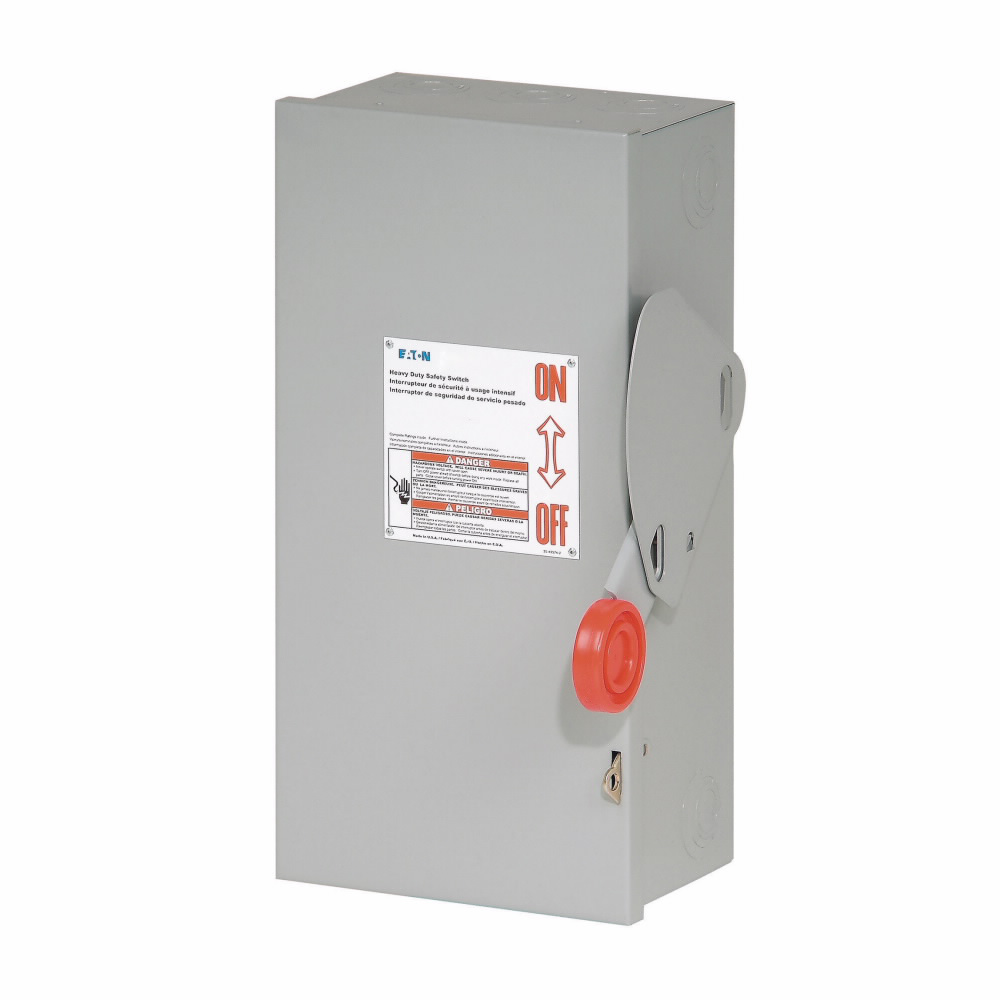

The Eaton DH361NRK is a heavy duty safety switch designed for reliable electrical protection. This fusible safety switch allows for safe manual operation and includes a visible blade mechanism for effective isolation of circuits. It features a three-pole, four-wire configuration and is built for commercial applications.
- Amperage rating of thirty amps.
- Voltage rating of six hundred volts.
- Constructed from painted galvanized steel.
Product Highlights
This safety switch improves personnel safety while protecting equipment. Suitable for harsh environments and quick access to power control.
Product Information
Standard Information
-
Product ID: 22372
-
Manufacturer: Eaton
Technical Specifications
-
Catalog Number: DH361NRK
-
NEMA Rating: 3R
-
Dimensions: Sixteen point seven inches length x Nine point five inches width x Eight and one half inches height
-
Weight: Twelve pounds
-
Number of poles: 3
-
Number of wires: 4
-
Fuse provision: Fusible
-
Power rating: Up to twenty horsepower
