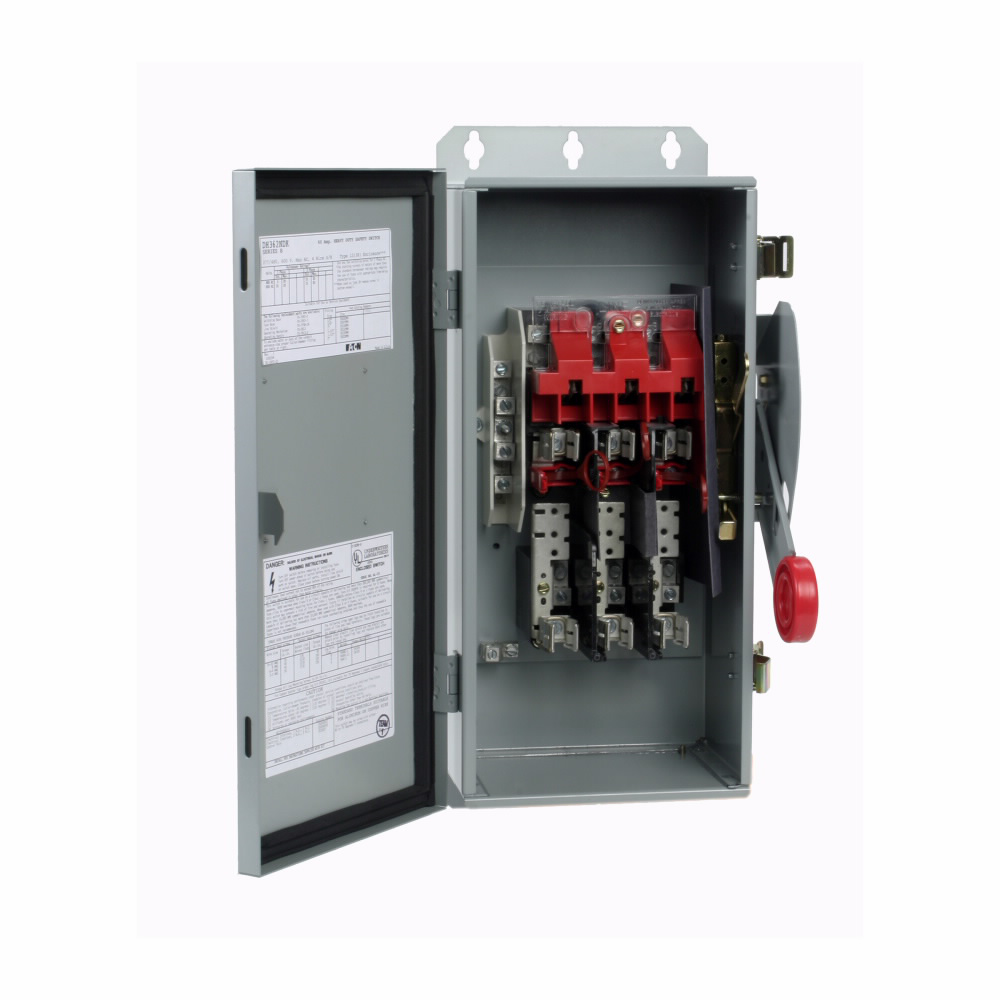

Eaton DH361NDK ETN DH361NDK 30A/3P Heavy Duty Safety Switch

Product Description

The Eaton DH361NDK is a heavy-duty fused safety switch with a 30 amp rating. This three-pole, four-wire switch is designed for reliable circuit protection in commercial and institutional settings. It has a maximum voltage rating of six hundred volts, making it suitable for various power distribution applications. The fusible safety switch features a painted galvanized steel enclosure complying with NEMA twelve and three R standards.

• Heavy-duty safety switch for reliable circuit protection
• Suitable for up to thirty amps and six hundred volts
• UL-listed and NEC compliant for safety and durability

Product Highlights

This product provides effective manual control of electrical circuits to enhance safety.

Product Information

Standard Information

• Brand: Eaton
• MPN: DH361NDK

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 30 Amp
• Material: Painted galvanized steel
• Enclosure Type: NEMA 12/3R
• Number of Poles: 3
• Number of Wires: 4
• Dimensions: 10.22 in L x 7.73 in W x 19.08 in H
• Applications: Power distribution in commercial and institutional buildings
