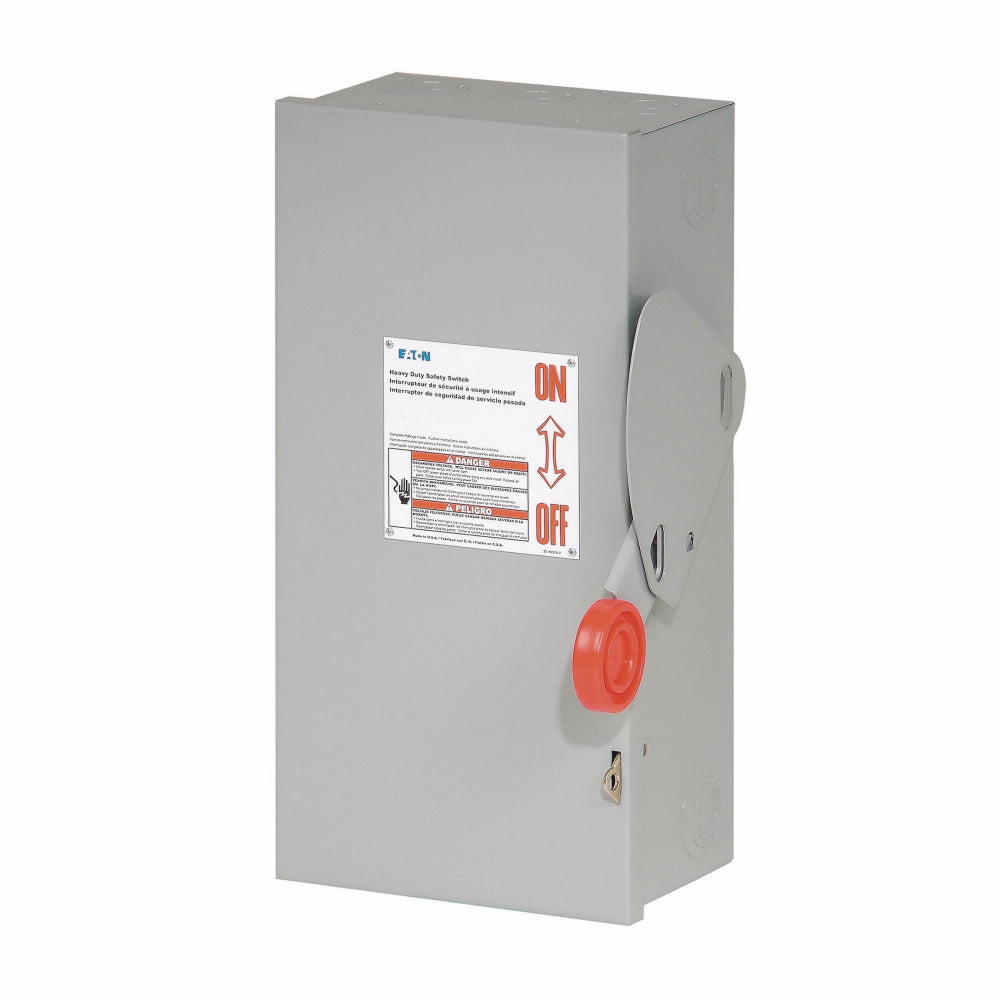

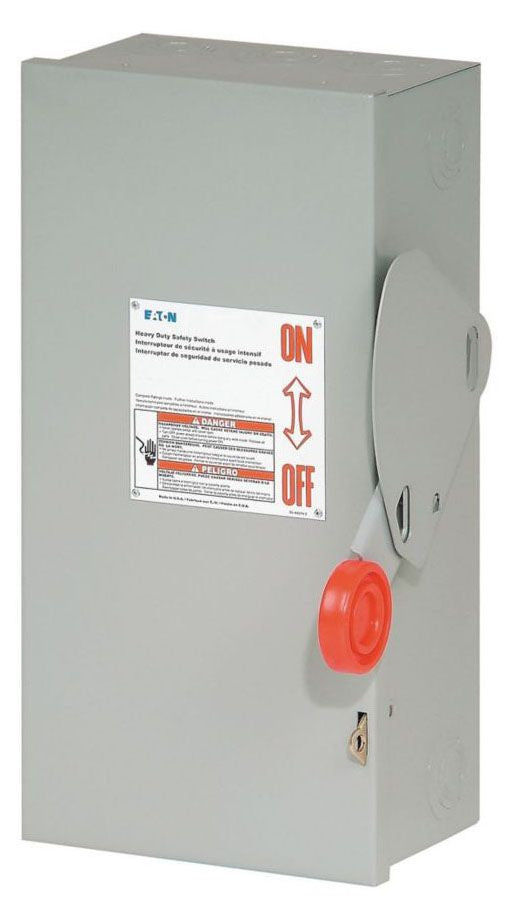

EATON DH361FRK Heavy Duty Fusible Safety Switch 600VAC 30A 10 HP 20 HP TPST

Product Description

The EATON DH361FRK is a heavy-duty fusible safety switch designed for 600 Volt AC applications. It has a current rating of thirty amps and can handle up to twenty horsepower. The switch features three poles and three wires, complying with NEMA 3R standards, making it suitable for outdoor use. This model is ideal for commercial and industrial settings where reliability is essential.

• Designed for 600 VAC and rated at 30 Amperes
• Two horsepower options: up to 10 HP for single-phase and 20 HP for three-phase
• Includes visible blade design for safety

Product Highlights

This safety switch ensures a reliable disconnect for electrical circuits, enhancing workplace safety. It's built from galvanized steel and includes a metal handle with an insulating grip for ease of use.

Product Information

Standard Information

• MPN: DH361FRK
• Brand: EATON

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Horsepower Rating: 10 hp, 20 hp
• Contact Form: TPST
• Number of Poles: 3
• Number of Wires: 3
• Dimensions: 16-1/2 in L x 9-1/2 in W x 8-1/2 in H
• Finish: Painted Galvanized
• Material: Steel
• Insulation Type: Class H
• NEMA Rating: 3R
