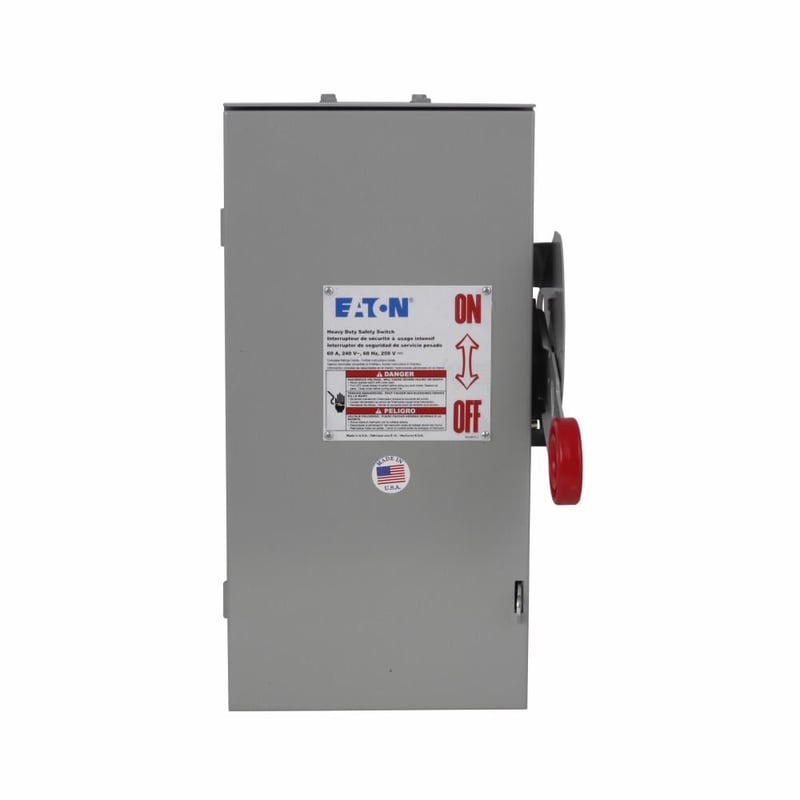

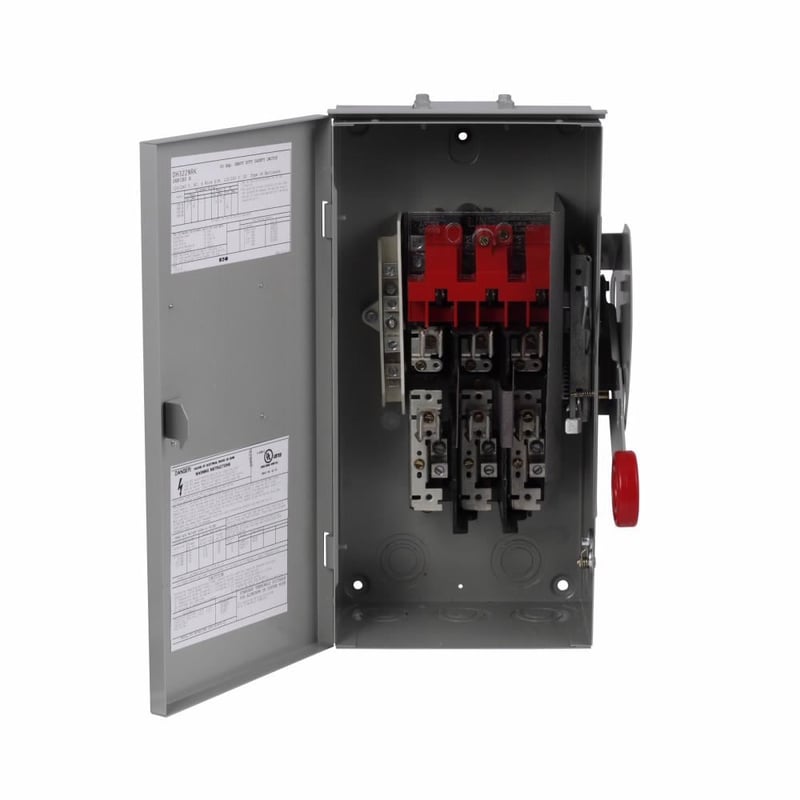

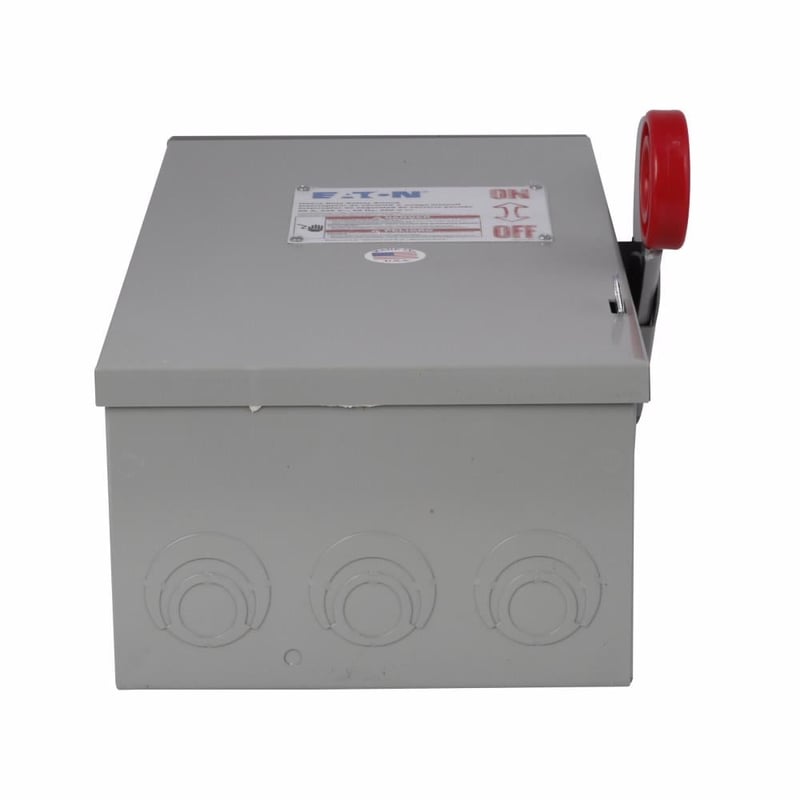

Eaton DH361FRK-CSA 30 Amp, 3 Pole, 600 Volt, NEMA 3R, Fusible Safety Switch

Product Description

The Eaton DH361FRK-CSA is a heavy-duty fusible safety switch designed for reliable performance in power distribution. This switch operates at thirty amps and uses three poles to provide a secure disconnect for electrical circuits. It is rated for six hundred volts, suitable for various commercial and institutional applications. The enclosure is made of painted galvanized steel and meets NEMA 3R standards, making it ideal for outdoor use.

• Fusible switch with a rated current of thirty amps
• Three-pole design for enhanced circuit protection
• Constructed of galvanized steel for durability

Product Highlights

Ideal for safe disconnects in power distribution systems.

Product Information

Standard Information

• Brand: Eaton
• MPN: DH361FRK-CSA

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 V
• NEMA Rating: 3R
• Material: Galvanized Steel
• Application: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Max HP: 7.5
• Wiring Size: #14-#2 Cu/Al
• Height: 8.5 inches
• Width: 9.5 inches
