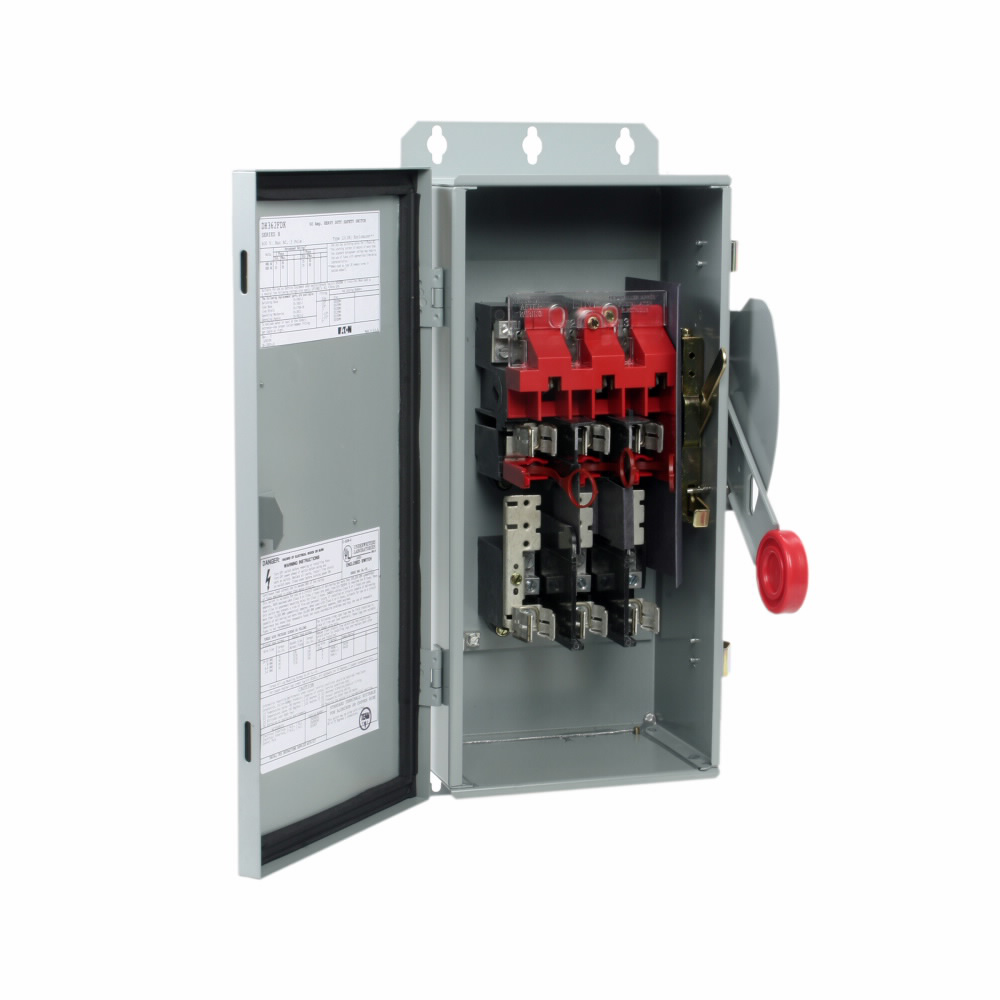

Eaton DH361FDK Heavy Duty Safety Switch 30 A NEMA 12/3R

Product Description

Eaton DH361FDK Heavy Duty Safety Switch provides reliable disconnection for HVAC and electrical installations. This model features a 30 Amp rating and operates at 600 Volts, making it suitable for various commercial and industrial applications.

• Type: Heavy Duty Fusible Safety Switch
• Amperage: 30 A
• Material: Painted Galvanized Steel

Product Highlights

This switch is designed for easy operation and enhances safety by providing a clear means of disconnect. Ideal for commercial and institutional buildings where power distribution is critical. The fusible design allows for overcurrent protection, which is essential in electrical systems.

Product Information

Standard Information

• Brand: Eaton
• Catalog Number: DH361FDK

Technical Specifications

• Voltage Rating: 600 Volt
• Number of Poles: 3
• Height: 8.5 inches
• Length: 20 inches
• Weight: 22 lb
• Enclosure Type: NEMA 12/3R
• Phase: 3 Phase
• Horsepower Rating: Max Hp: 7.5, 10, 15, 20 hp (1/3PH @ 480V, 600V)
• Wire Size: #14-#2 Cu/Al
