Eaton DH328FRK Heavy Duty Fusible Safety Switch 1200A

Product Description

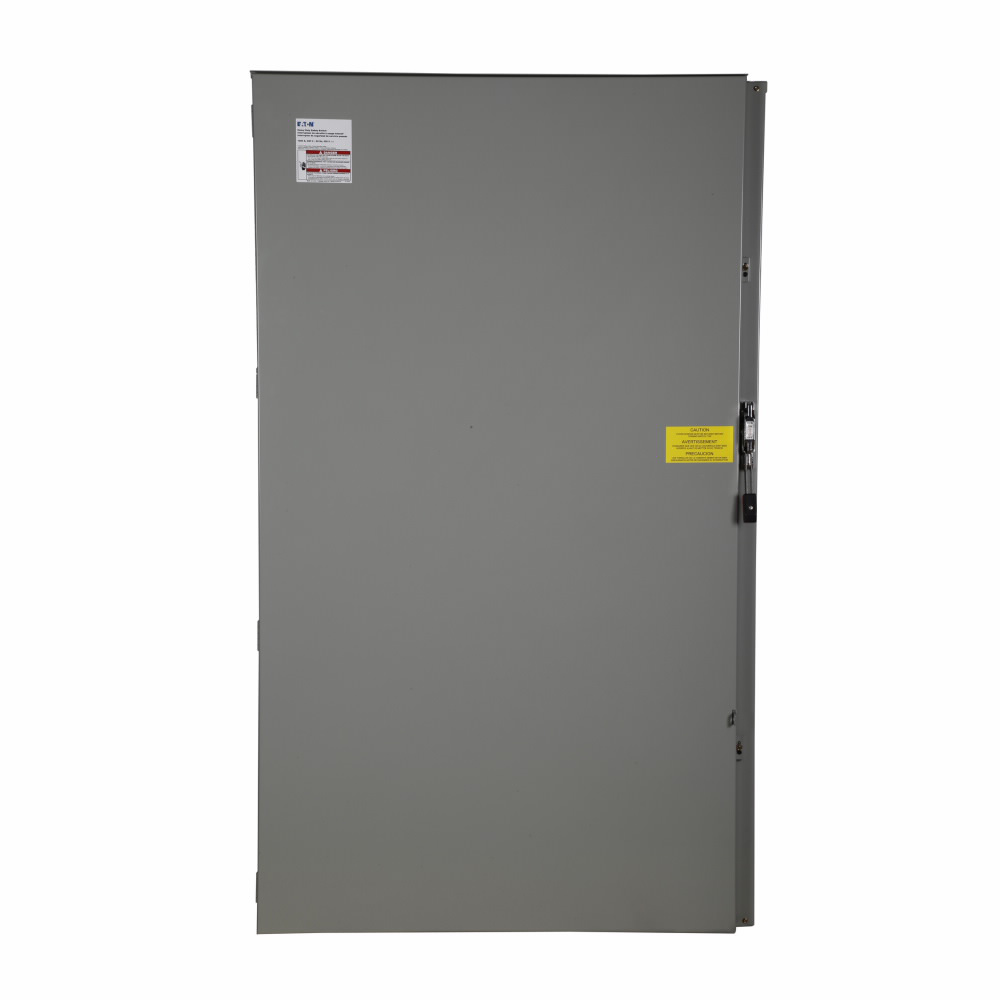

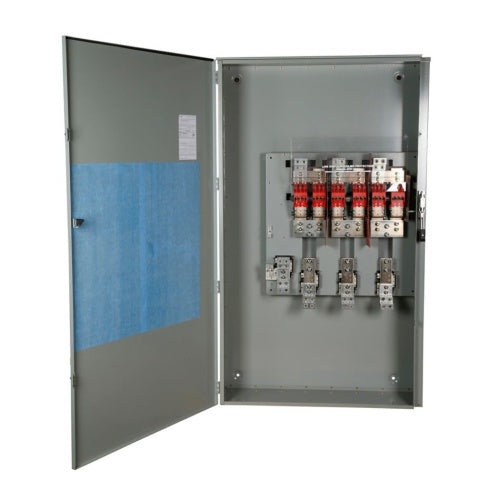

The EATON DH328FRK is a heavy-duty fusible safety switch designed for commercial and industrial applications. This enhanced visible blade single-throw safety switch is rated for 1200A, NEMA 3R, and 240V. It features a painted galvanized steel construction and Class L fuse compatibility, suitable for service entrance use with a neutral kit installed.

• Enhanced visible blade
• Single-throw design
• Fusible without neutral

Product Highlights

Heavy-duty safety switch with visible blade and a NEMA 3R enclosure for reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DH328FRK
• Country of Origin: USA

Technical Specifications

• GTiN: 00782114312988
• Type: Heavy Duty Fusible Rainproof Single Throw
• Brand: Eaton
• Height: 21 Inch
• Length: 72 Inch
• Weight: 455 lb
• Voltage: 240 Volt
• Amperage: 1200 Amp
• Material: Steel
• Enclosure: 3R
• NEMA Size: 3R
• Product UPC: 78211431298
• 12-Digit UPC: 782114312988
• Applications: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Number of Poles: 3 Pole
• Number of Wires: 3 Wire
• Enclosure Material: Steel
• Product Name: Eaton heavy duty fusible safety switch
• Catalog Number: DH328FRK
• Product Length/Depth: 72 in
• Product Width: 48 in
• Certifications: UL Listed
• Catalog Notes: Suitable for service entrance use with a Neutral Kit installed
• Product Type: Fusible safety switch
• NEMA rating: NEMA 3R
• Fuse class provision: Class L
• Fuse configuration: Fusible without neutral
• Amperage Rating: 1200 A
• Voltage Rating: 240V
• Product Category: Heavy Duty, Fusible without neutral
• Manufacturer Part Number: DH328FRK
• Manufacturer: Eaton
• Product Series: DH
• Family Series: Eaton Safety Switches, DH Series
• Description: Eaton Enhanced visible blade single-throw safety switch, 1200 A, NEMA 3R, Painted galvanized steel, Class L, Fusible without neutral, Three-pole, Three-wire, 240 V, 41/0-4750 kcmil Al
• Switch Type: Heavy Duty
• Current Rating: 1,200 A
• Fusible: Yes
• Fuse Type: L
• Neutral: No
• Composition: Metallic
• Approvals: CUL, UL
• Net Weight: 455 lbs
• Gross Weight: 455 lbs
• Enclosure NEMA Rating: NEMA 12
• Component: Fusible Disconnect Switch
• Disconnect Enclosure Width: 48 In
• Disconnect Enclosure Depth: 72 In
• Disconnect Enclosure Height: 21 In
• Poles: 3
• Volts DC: 250
• Mounting: Surface
• Amps: 1200
• Volts AC: 240
• IP/NEMA Rating: NEMA 3R
• Enclosure Type: NEMA 3R
• Finish: Galvanized/Painted
• Indoor or Outdoor Use: Outdoor
• Phase: 3
• Short Circuit Rating: 100 kA
• Standard: UL Listed
• Insulation Type: Class L
• Contact Form: TPST
• Short Circuit Current Rating: 100 kA
• Dimensions: 72 in L x 48 in W x 21 in H
