Eaton DH327NRK ETN DH327NRK 800A/3P HD FSBL S

Product Description

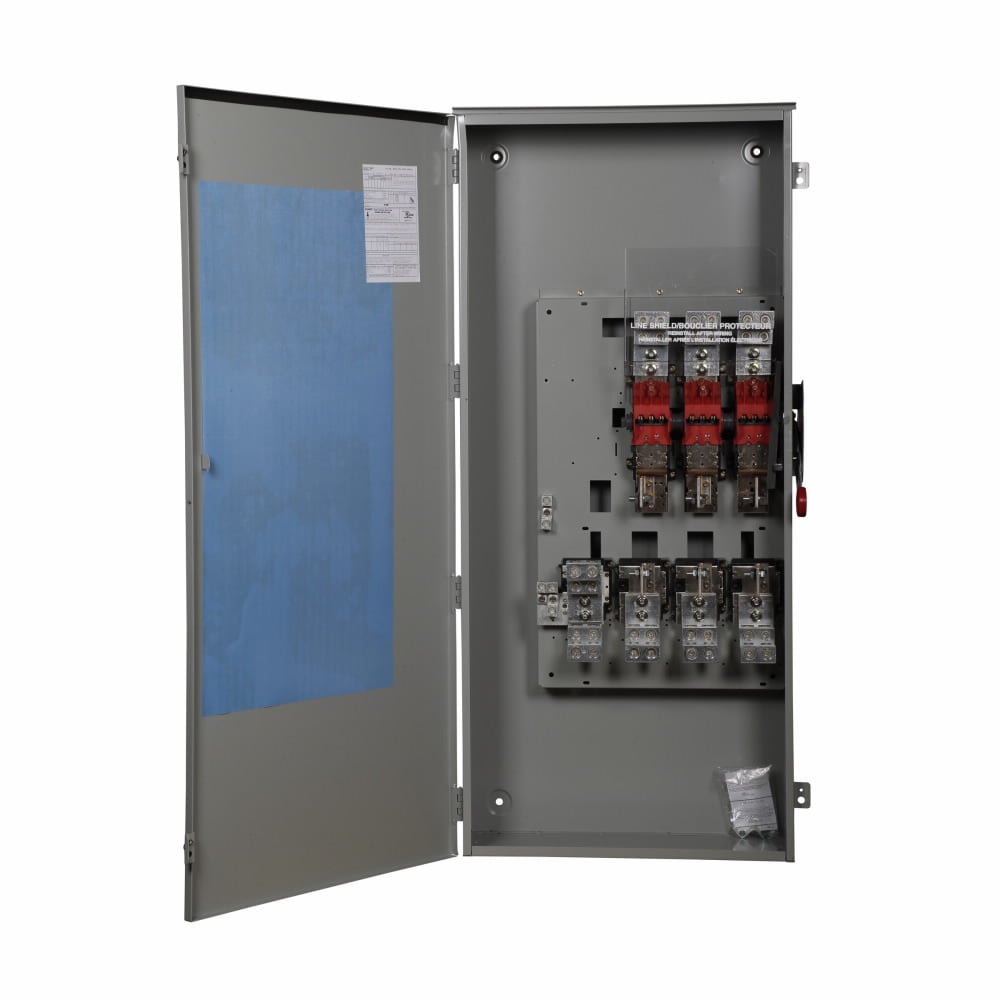

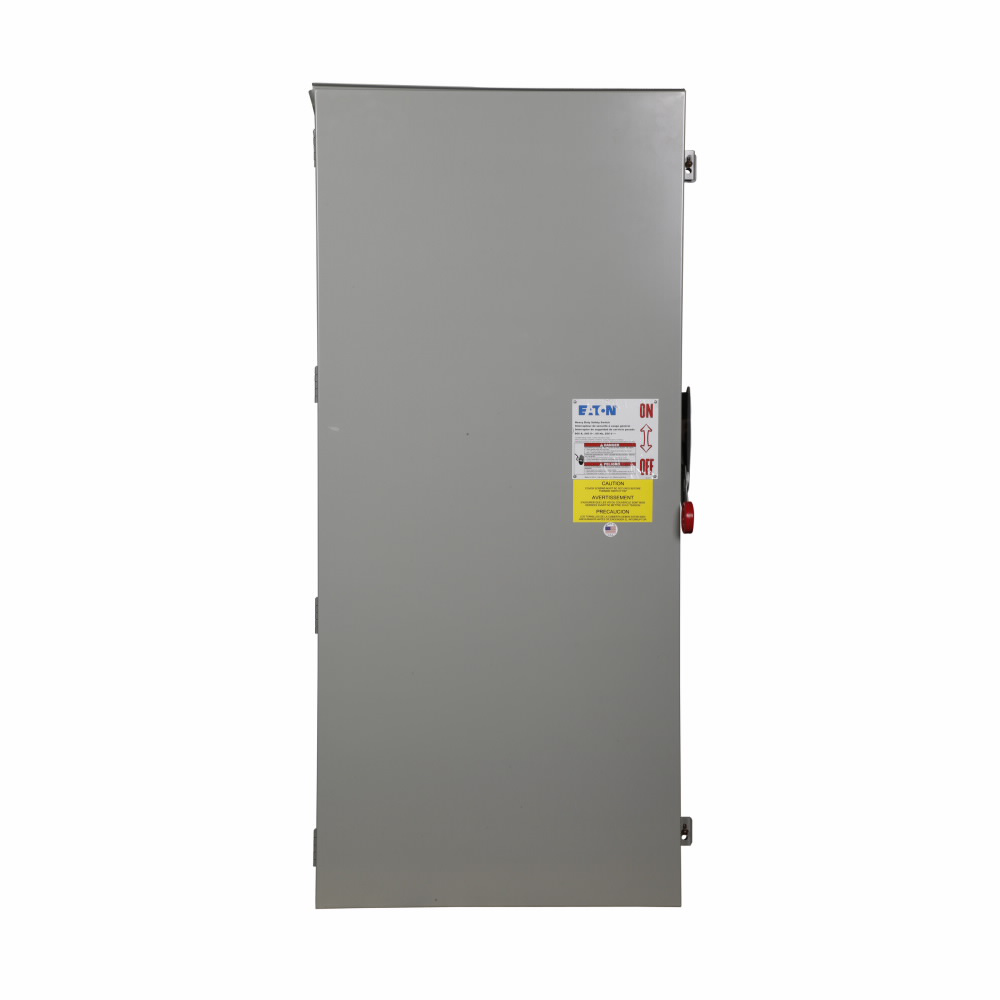

The Eaton DH327NRK is a heavy-duty fused safety switch with an ampacity of eight hundred amps and a three-pole configuration. It meets NEMA 3R requirements and is housed in painted galvanized steel. This fusible safety switch is designed for reliable operation in commercial and institutional buildings. It is equipped with a neutral and rated for three-phase and four-wire systems, supporting a maximum horsepower of one hundred.

• Heavy-duty fusible safety switch
• NEMA 3R enclosure for outdoor use
• Three-pole, four-wire configuration

Product Highlights

This product provides a high level of safety during power distribution operations, particularly in outdoor settings. It allows for clear visual identification of the switch’s status, enhancing safety for personnel.

Product Information

Standard Information

• Brand: Eaton
• MPN: DH327NRK

Technical Specifications

• Voltage Rating: 240 Volt
• Amperage Rating: 800 Amp
• Material: Steel
• Enclosure: NEMA 3R
• Dimensions: Fifty-seven and one-half inches (length) x twenty-seven and one-half inches (width) x twelve and thirty-eight hundredths inches (height)
• Weight: 177 lb
• Number of Poles: 3
• Number of Wires: 4
