Eaton DH327NGK ETN DH327NGK 800A/3P HD FSBL S

Product Description

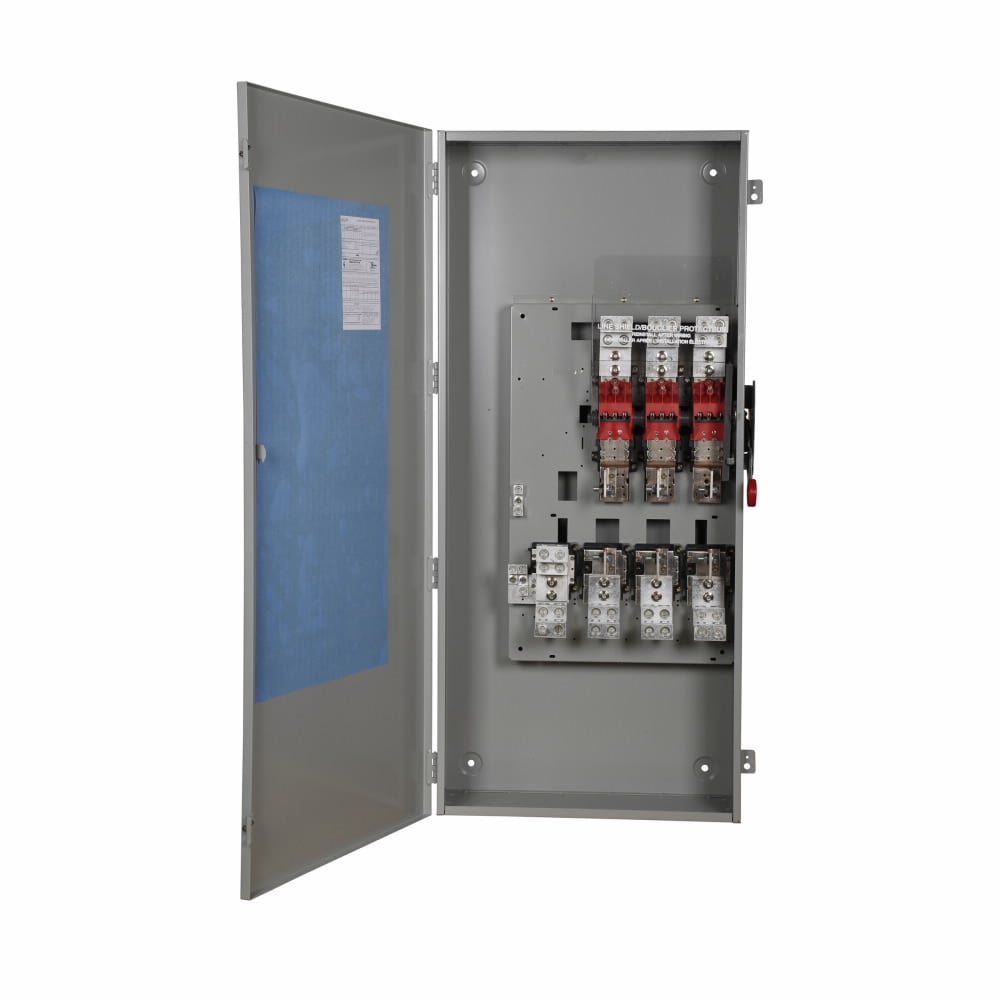

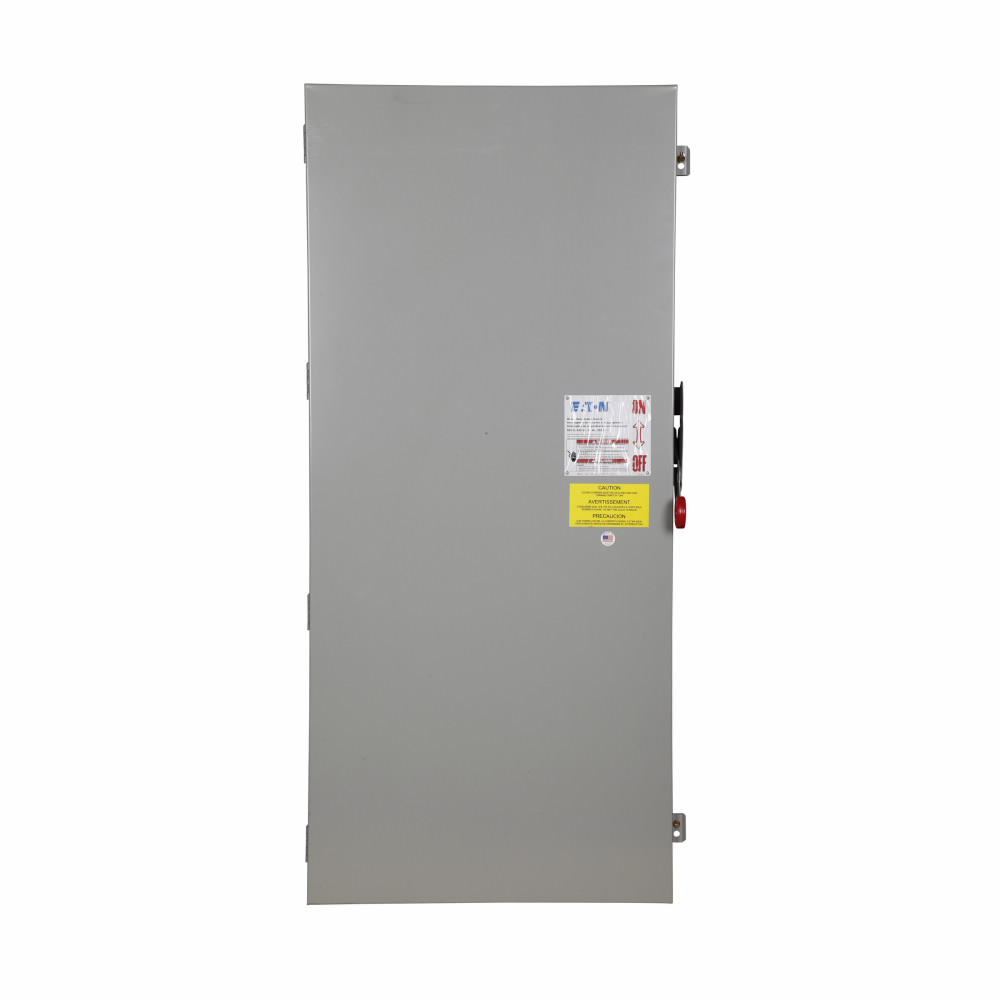

Eaton offers the DH327NGK, a heavy-duty single-throw fused safety switch. This unit is rated for eight hundred amperes and is suitable for three-phase applications. With a NEMA 1 enclosure made from durable painted steel, it supports voltage ratings of two hundred forty volts. The switch is fusible and features a neutral connection, making it ideal for commercial and institutional buildings.

• Heavy-duty fusible safety switch for reliable performance
• Rated for up to 800 Amps and 240 Volts
• Suitable for commercial and institutional applications

Product Highlights

This safety switch is designed to provide effective protection and safety in electrical distribution. It ensures personnel safety and helps prevent equipment damage.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DH327NGK
• Material: Steel
• Amperage Rating: 800 A
• Voltage Rating: 240 V
• Horspower Rating: 100 hp (standard), 250 hp (maximum)
• NEMA Rating: 1
• Number of Poles: 3
• Number of Wires: 4
• Dimensions: 57.5 in L x 27.5 in W x 12.38 in H
• Weight: 167 lb
