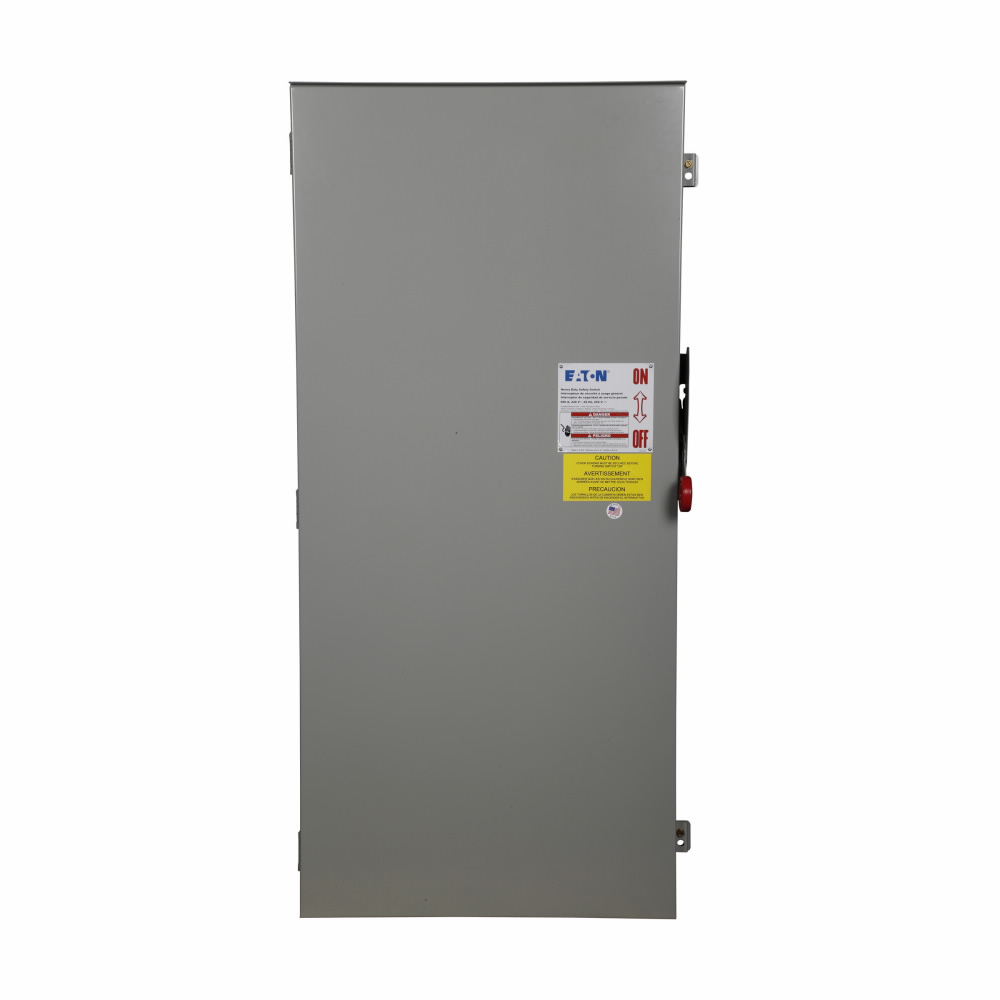

Eaton DH326NRK Heavy Duty Safety Switch

Product Description

The Eaton DH326NRK is a heavy-duty fusible safety switch designed for high-performance circuit control. It is rated at six hundred amperes and operates at two hundred forty volts. The switch has a three-pole, four-wire configuration suitable for most industrial applications.

• Easily visible operation with a red handle for clear on/off status.
• Equipped with a NEMA three R enclosure for outdoor use.
• Accepts Class H fuses for over-current protection.

Product Highlights

This safety switch is ideal for commercial facilities where reliable operation is essential. The switch provides a visible method of disconnect that enhances safety for personnel and equipment.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: DH326NRK

Technical Specifications

• Voltage Rating: 240 Volt
• Amperage Rating: 600 Amp
• Material: Painted galvanized steel
• NEMA Rating: 3R
• Number of Poles: 3
• Number of Wires: 4
• Dimensions: 12.84 in L x 23.66 in W x 51.83 in H
• Weight: 142 lb
