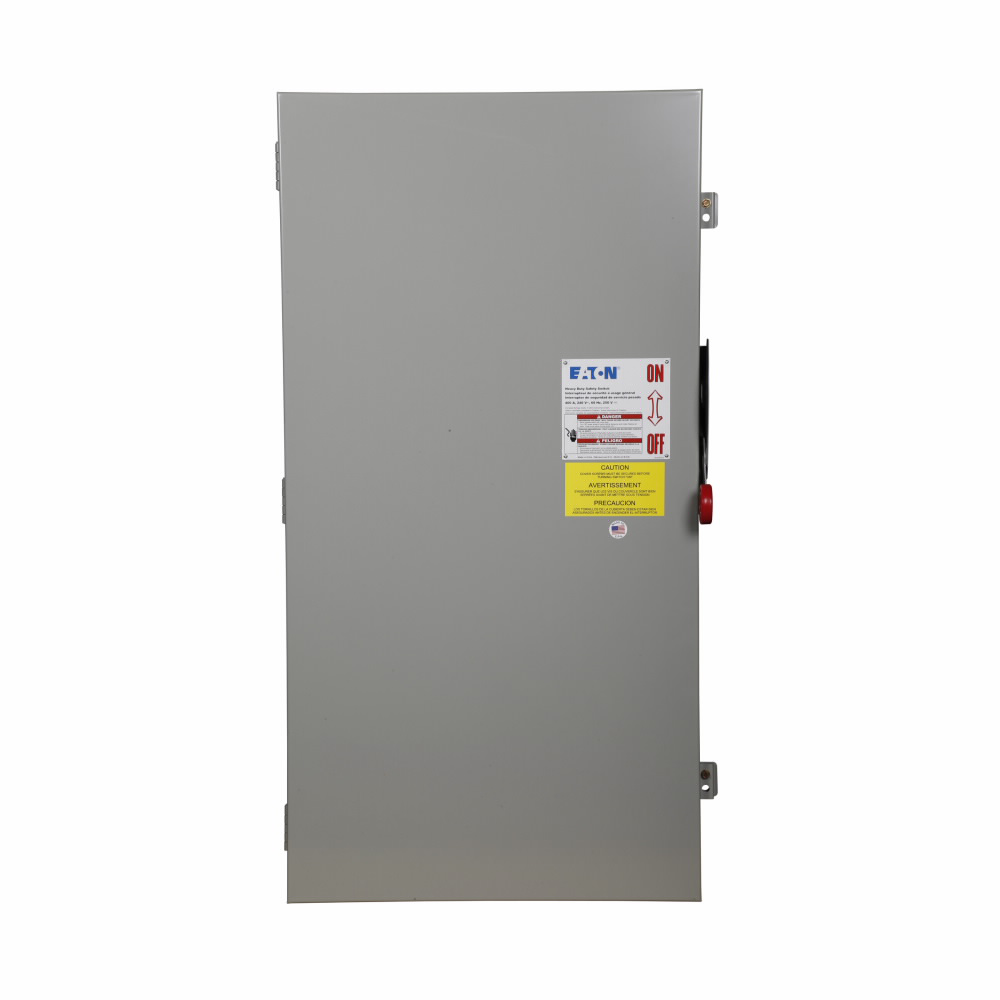

Eaton DH325NGK Heavy Duty Safety Switch 400 A NEMA 1

Product Description

Eaton DH325NGK is a heavy duty safety switch designed for commercial and institutional buildings. It provides a visible means of circuit disconnect for enhanced safety and equipment protection. This switch is rated for four hundred amperes and features a NEMA one enclosure, making it suitable for indoor use.

• Amperage: 400 A
• NEMA Rating: 1
• Voltage: 240 V

Product Highlights

This safety switch is ideal for power distribution applications, ensuring reliable operation and safety under load.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DH325NGK
• Type: Heavy Duty Fusible Safety Switch
• Amperage Rating: 400 A
• Voltage Rating: 240 V
• Construction Material: Steel
• Number of Poles: 3
• Number of Wires: 4
• Enclosure: NEMA 1
• Dimensions: 45-3/4 in L x 25 in W x 10-1/2 in H
• Weight: 108 lb
• Standard: UL Listed
• Applications: Power Distribution and Controls
