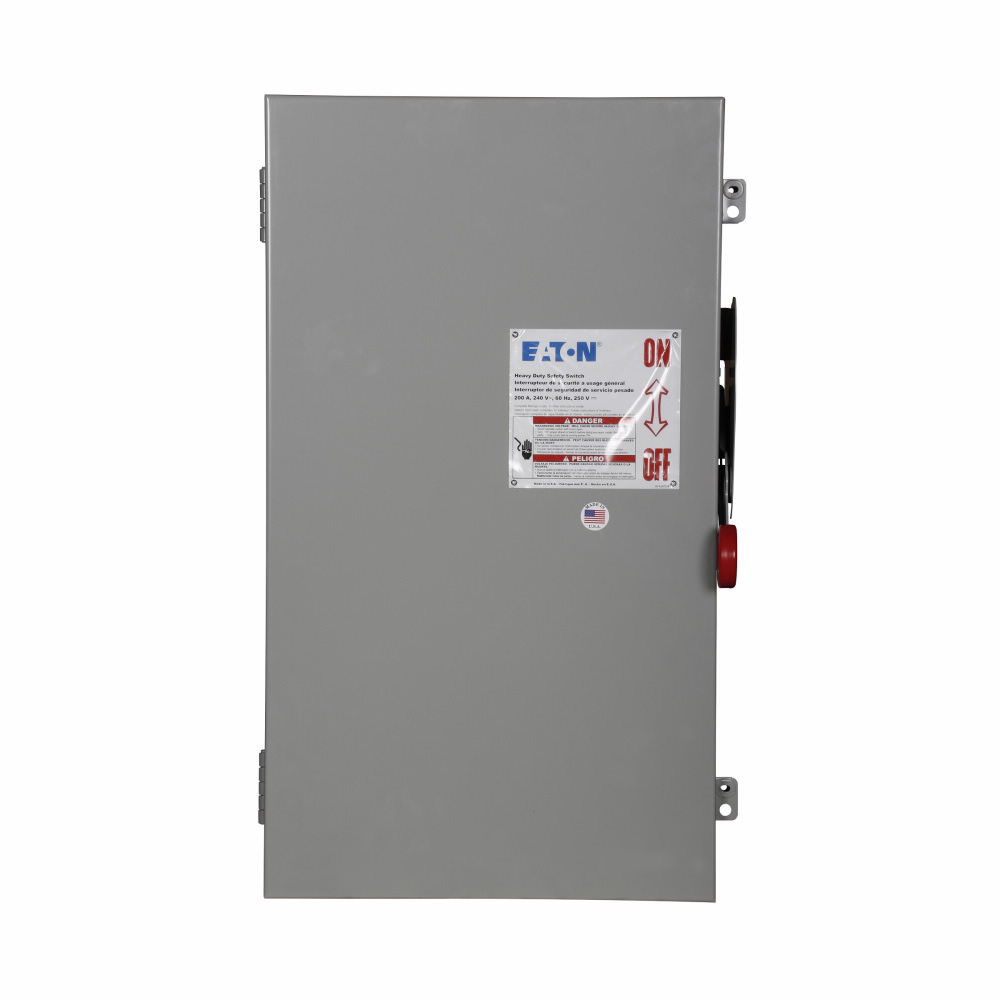

Eaton DH324NGK Heavy Duty Safety Switch 200A NEMA 1

Product Description

The Eaton DH324NGK is a heavy duty safety switch designed for safe power distribution. This model features a single-throw fused safety switch that operates at 200 amps and is rated for 240 volts. The enclosure is made of painted steel, compliant with NEMA 1 standards. This switch is ideal for commercial and institutional buildings.

• Heavy duty fused safety switch
• 200 amp, 240 volt rating
• NEMA 1 painted steel enclosure

Product Highlights

This switch helps improve personnel safety with its highly visible design and provides reliable power control.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: DH324NGK

Technical Specifications

• Voltage Rating: 240 volts
• Amperage Rating: 200 amps
• Number of Poles: 3
• Number of Wires: 4
• Enclosure Material: Steel
• NEMA Rating: 1
• Dimensions: 30 inches (length) x 18 inches (width) x 9.5 inches (height)
• Weight: 40 pounds
• Fuse Type: Class H
• Application: Power distribution for commercial/institutional buildings
