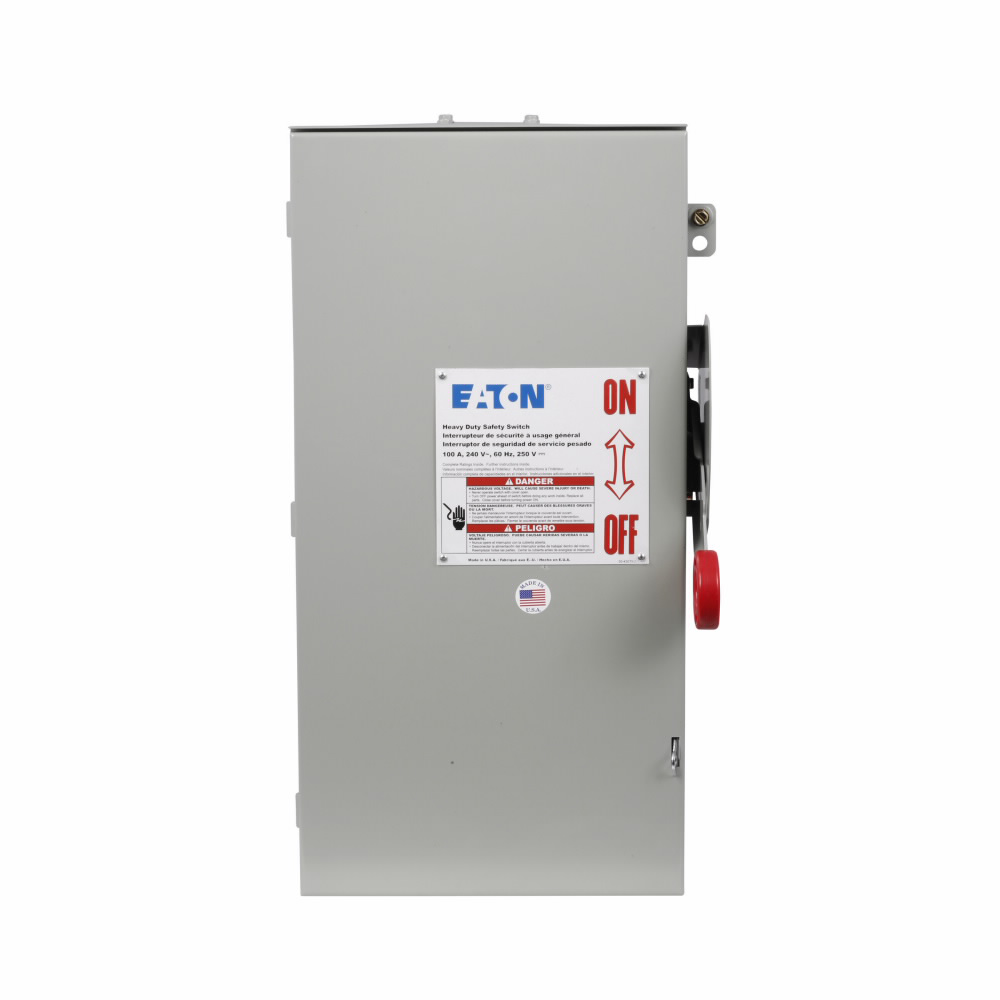

Eaton DH323NRK Heavy Duty Safety Switch 100 A NEMA 3R

Product Description

The Eaton DH323NRK is a heavy-duty fusible safety switch designed for reliable circuit control in commercial and institutional settings. This switch features a visible blade mechanism that enhances safety and provides a clear indication of the circuit's status. The switch is rated for 100 amperes and operates on two hundred forty volts. Its enclosure meets the NEMA 3R standards, ensuring protection under various weather conditions.

• Heavy-duty design for increased durability.
• Visible blade for easy status indication.
• UL listed for safety and reliability.

Product Highlights

The Eaton DH323NRK is an efficient choice for power distribution and control, suitable for service entrance applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DH323NRK
• Amperage Rating: 100 A
• Voltage Rating: 240 V
• Material: Painted galvanized steel
• Enclosure Type: NEMA 3R
• Number of Poles: 3
• Number of Wires: 4
• Weight: 20 lb
• Dimensions: 22.5 in L x 12.75 in W x 9 in H
