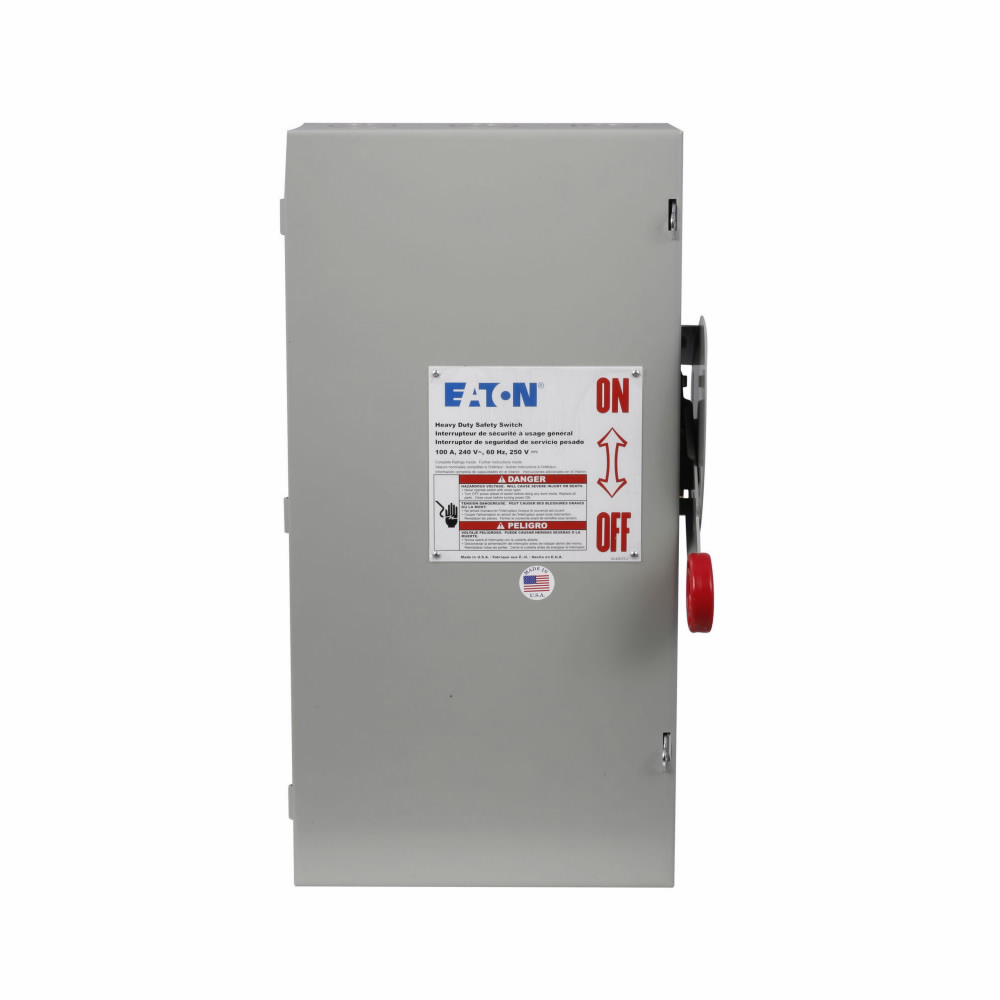

Eaton DH323NGK Heavy Duty Safety Switch 100 A NEMA 1

Product Description

The Eaton DH323NGK is a heavy-duty safety switch designed for reliable performance in commercial and institutional settings. This single-throw fused safety switch has a rating of 100 Amperes and adheres to NEMA 1 specifications. It features robust painted steel construction and is suitable for various applications requiring power distribution and control.

• 100 Amp rating for effective power management
• Three-pole, four-wire design for versatile connectivity
• UL listed for safety and compliance

Product Highlights

Ideal for service entrance applications, the Eaton DH323NGK provides effective over-current protection and allows for manual circuit control.

Product Information

Standard Information

• Catalog Number: DH323NGK
• Brand: Eaton

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 240 V
• Dimensions: 22.5 in L x 12.75 in W x 9 in H
• NEMA Rating: 1
• Material: Painted steel
• Number of Poles: 3
• Number of Wires: 4
• Applications: Commercial and institutional power distribution
