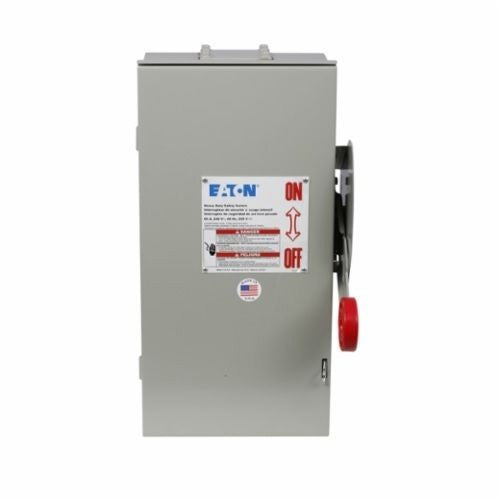

Eaton DH323FRK Safety Switch 240 VAC 100 A replacement DH323FRK

Product Description

The Eaton DH323FRK is a safety switch with single throw, 3 poles, 240 VAC, and 100A. It features enhanced visible blades and is suitable for service entrance use with a Neutral Kit installed. It is designed for commercial, institutional buildings, structures, power distribution and controls and outdoor applications.

• Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
• Visible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
• Triple padlocking capability increases personnel safety

Product Highlights

The Eaton DH323FRK safety switch is a heavy-duty, fusible switch with a NEMA 3R enclosure, suitable for various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DH323FRK
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton heavy duty fusible safety switch
• Catalog Number: DH323FRK
• UPC: 782113206257
• Product Length/Depth: 22.5 in
• Product Height: 9 in
• Product Width: 12.75 in
• Certifications: UL Listed
• Catalog Notes: Suitable for service entrance use with a Neutral Kit installed
• Product Type: Fusible safety switch
• Enclosure: NEMA 3R
• Enclosure material: Painted Galvanized Steel
• Fuse class provision: Class H
• Fuse configuration: Fusible without neutral
• Number of poles: Three-pole
• Number of wires: 3
• Type: Heavy duty fusible safety switch
• Wire size: #14-1/0 AWG Cu/Al
• Amperage Rating: 100A
• HP rating - max: 7.5, 15/ 15, 30/ 20 hp (1,3PH @Std/TD/250 Vdc)
• NEMA rating: NEMA 3R
• Voltage rating: 240V
• Product Category: Heavy Duty, Fusible without neutral
• Series: DH
• Voltage: 240VAC, 250VDC
• Poles: 3
• Phase: 3
• Mounting Type: Surface
• Approval: UL
• Interrupting Rating: 100kAIC at 240V
• Frame Type: DH
• Connection Type: Bolt-On
• Wire Gauge: #14 to 1/0 AWG Cu/Al
• Duty Rating: Heavy Duty
• Fusibility: Fusible
• Configuration: Single
• Contact Configuration: Single Throw
• Mpn: DH323FRK
• Upc: 782113206257
• Finish: Galvanized/Painted
• UNSPSC: 39122205
• Material: Steel
• Application: Commercial, Institutional Buildings, Control, Power Distribution and Residential Applications
• Insulation Type: Class H
• Dimensions: 22-1/2 in L x 12-3/4 in W x 9 in H
• Horsepower: 7-1/2 hp, 15 hp, 30 hp, 20 hp
• Short Circuit Rating: 100 kA
• Standard & Approvals: UL 98
• Volts DC: 250
• Amps: 100
• Mounting: Surface
• Volts AC: 240
• IP/NEMA Rating: NEMA 3R
