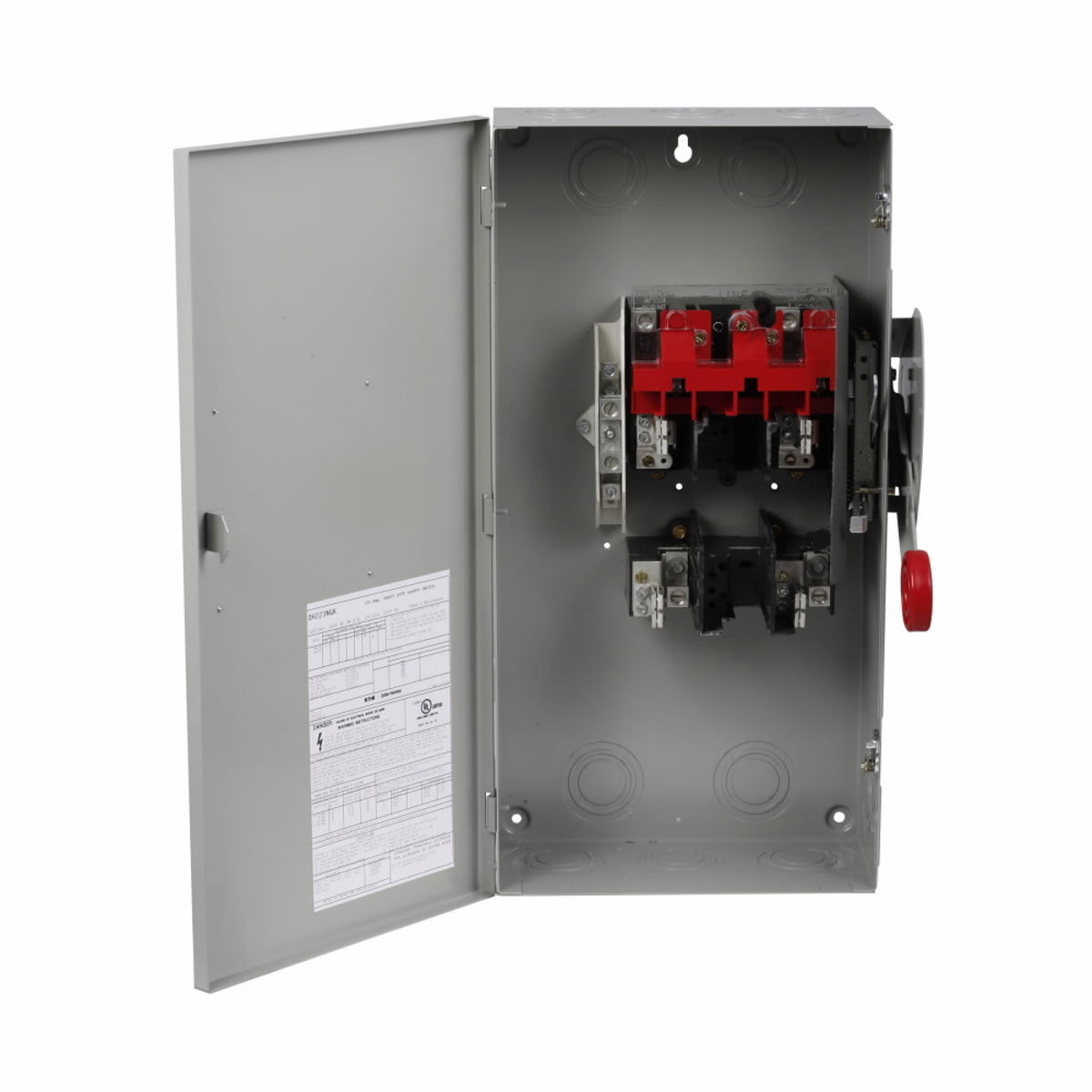

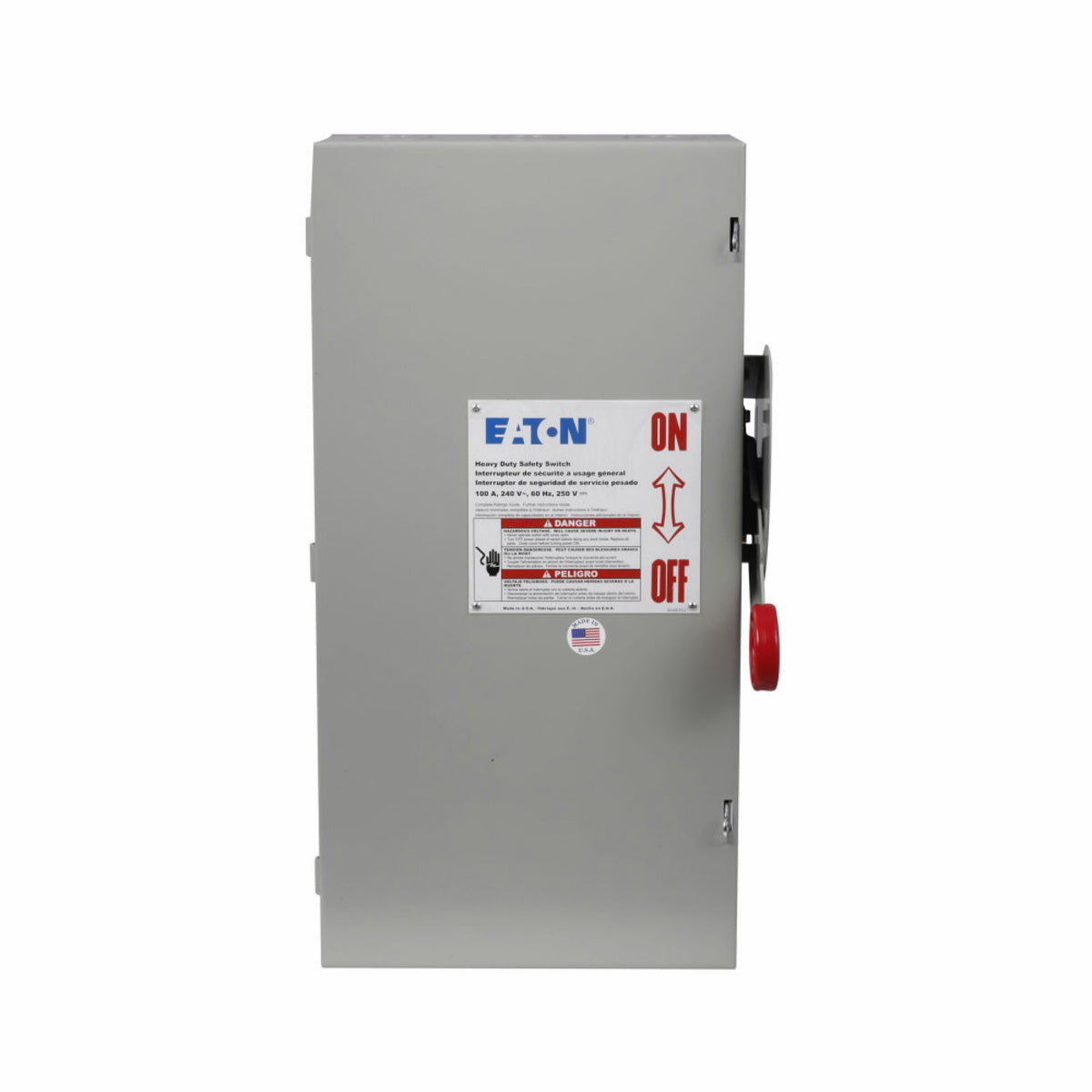

Eaton DH323FGK Enhanced Visible Blade Single-Throw Fused Safety Switch 100 A NEMA 1

Product Description

The Eaton DH323FGK is a heavy-duty safety switch designed for effective power management in commercial and institutional settings. This unit features a single-throw fused mechanism, providing easy power disconnection. It is suitable for use in environments where safety and service continuity are essential.

• Max voltage rating: Two hundred forty volts.
• Amperage rating: One hundred amps.
• NEMA 1 enclosure for standard indoor applications.

Product Highlights

This safety switch is built for reliability and safety. It allows for easy operation and quick visibility during use.

Product Information

Standard Information

• Brand: Eaton
• Catalog Number: DH323FGK

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 100
• Number of Poles: 3
• NEMA Rating: 1
• Material: Painted steel
• Dimensions: Twenty-two point five inches by twelve point seventy-five inches by twenty-one point ninety-nine inches
• Short Circuit Current Rating: 100 kA
• Standards/Approvals: UL 98
