Product Description

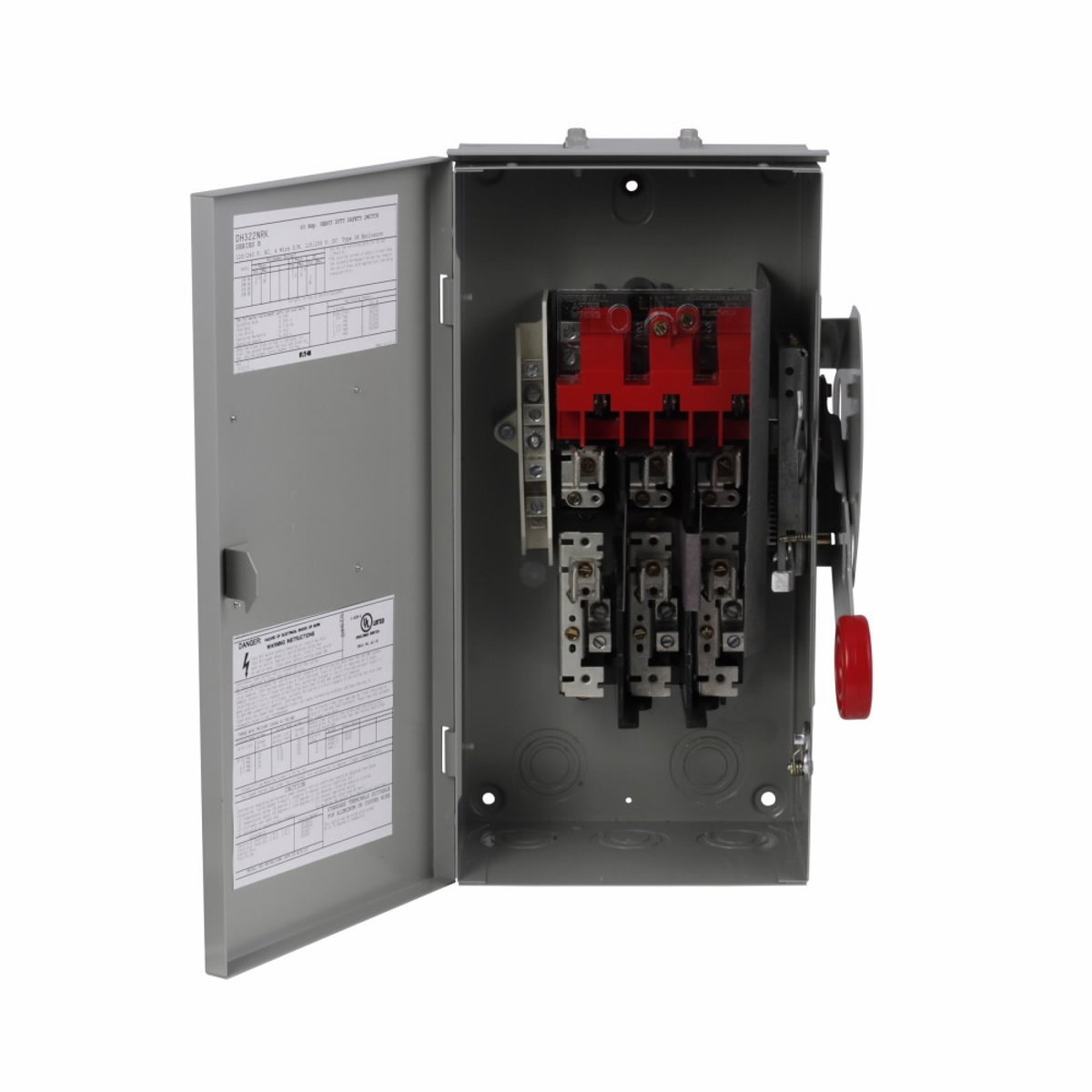

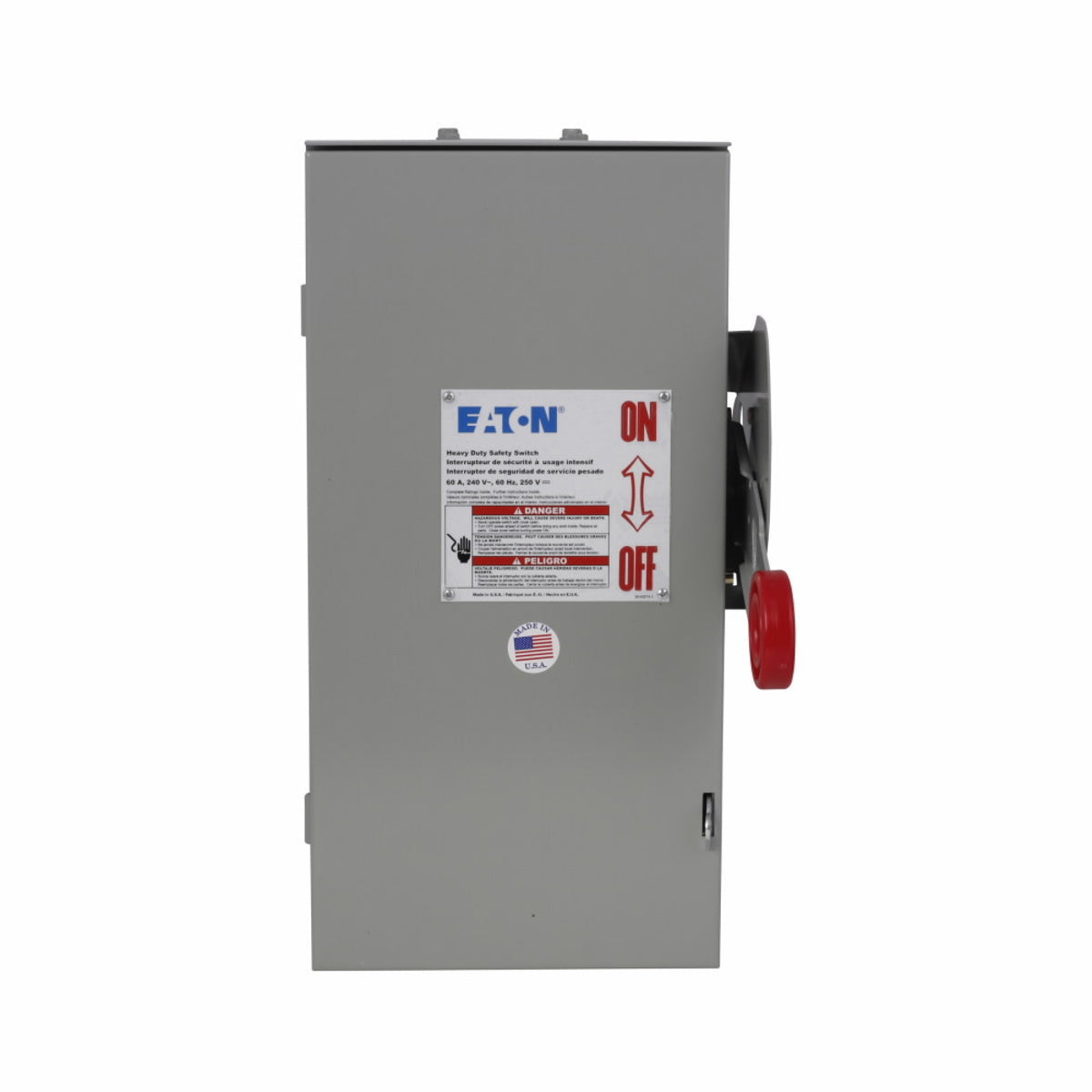

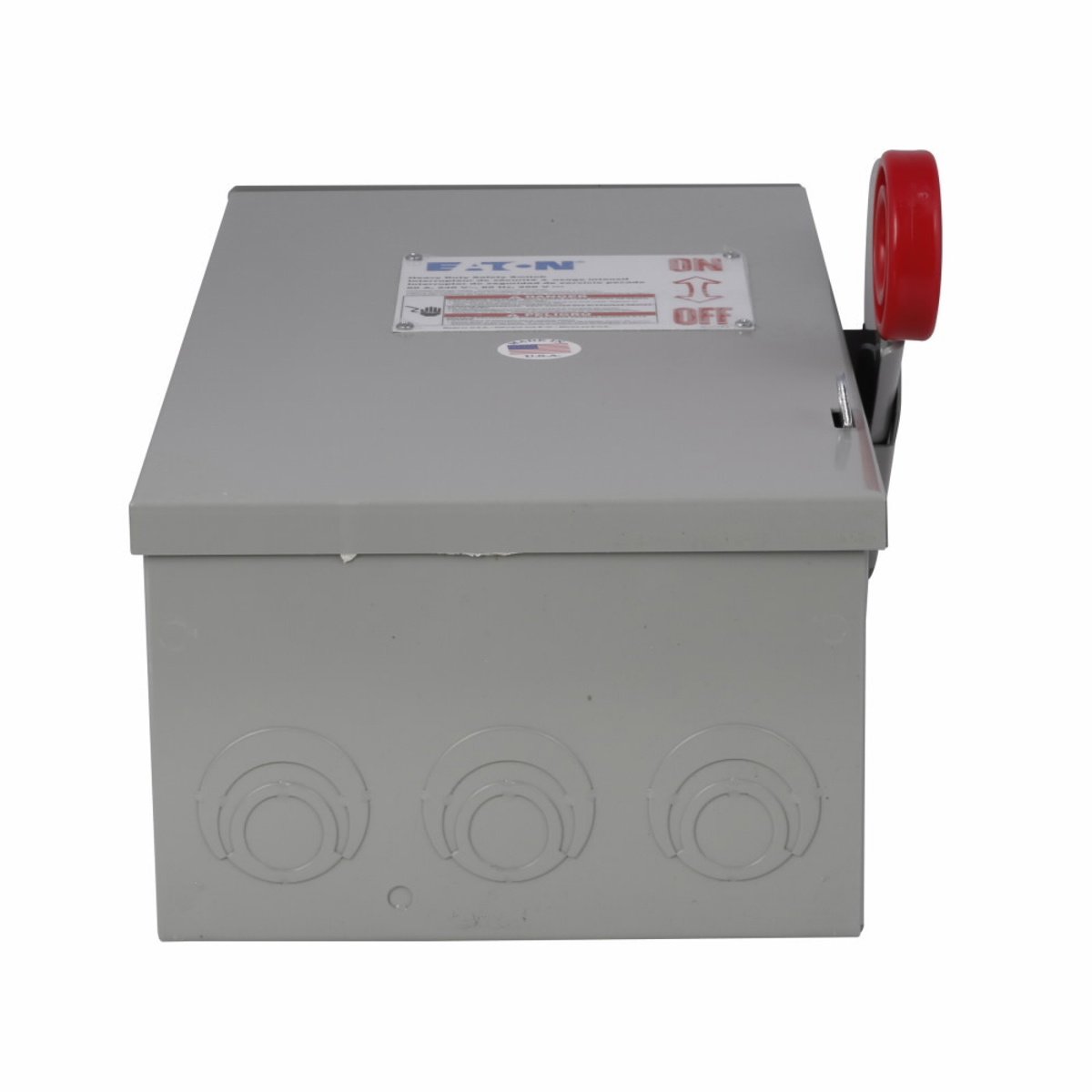

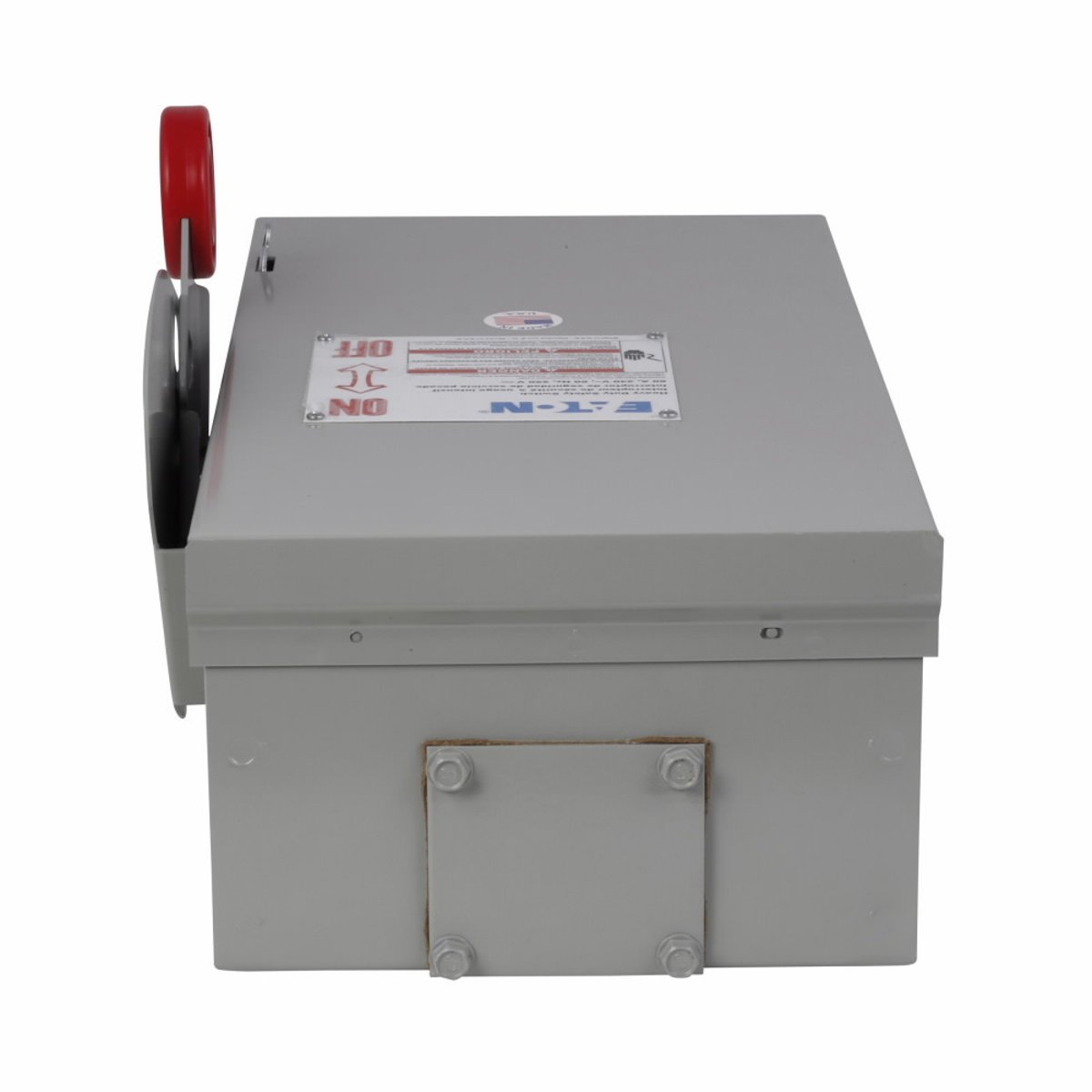

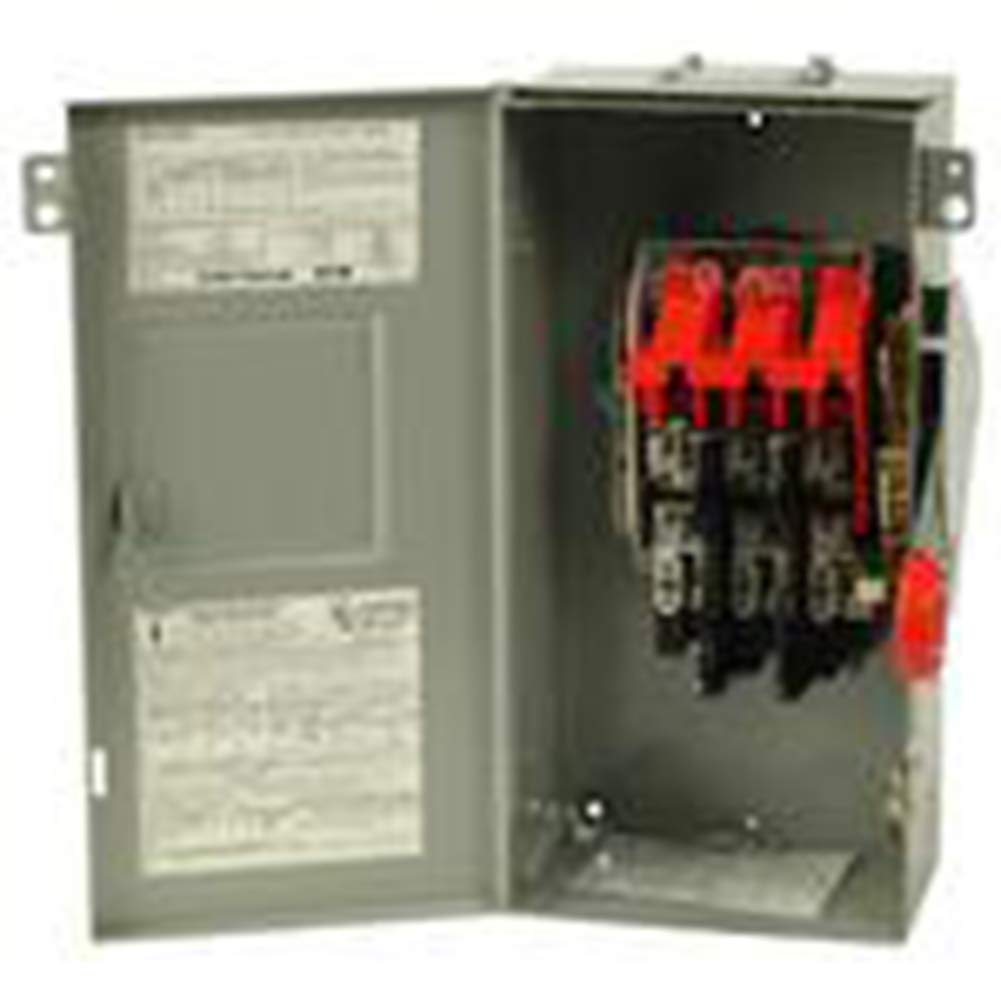

The EATON DH322NRK heavy-duty safety switch provides a visible disconnect to improve safety and protect equipment. Ideal for applications needing reliable performance and service continuity. It is a single-throw, three-pole, four-wire switch with a 60 A amperage rating and a 240 V voltage rating. Constructed from painted galvanized steel with a NEMA 3R enclosure.
- Visible double break rotary blade mechanism
- Triple padlocking capability increases personnel safety
- NEMA 3R enclosure for environmental protection
Product Highlights
Heavy-duty fusible safety switch with visible blade and NEMA 3R enclosure for safety and reliability.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: DH322NRK
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: DH322NRK
-
Manufacturer: Eaton
-
Brand: Eaton
-
Country of Origin: United States
-
Made in USA: Yes
-
Amperage Rating: 60 A
-
Application: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
-
Material: Painted galvanized steel
-
NEMA Rating: 3R
-
Number of Poles: 3
-
Standard: UL Listed
-
Item Type: Fusible safety switch
-
Voltage Rating: 240 VAC
-
Enclosure Type: NEMA 3R
-
Finish: Galvanized/Painted
-
Insulation Type: Class H
-
Number of Wires: 4
-
Phase: 1/3
-
Series: K Series
-
Short Circuit Current Rating: 100 kA
-
Type: Heavy Duty Fusible Rainproof Single Throw
-
Horsepower: 3 hp, 7-1/2 hp, 10 hp, 15 hp
-
Contact Form: TPST
-
AC Voltage Rating: 240 V
-
DC Voltage Rating: 250 V
-
Fuse Provision: Fusible
-
Fuse Type: Cartridge, Class H, Time Delay
-
Neutral Type: Solid
-
Indoor or Outdoor Use: Indoor/Outdoor
-
Wire size: #14-2 AWG Cu/Al
-
Current Rating: 60 Amp
-
Enclosure Material: Steel
-
Approval: UL 98
-
UNSPSC: 39122205
-
AIC Ratings: 100kA@240V
-
Product Width: 9.5 in
-
Product Height: 16.27 in
-
Product Length/Depth: 16.5 in
