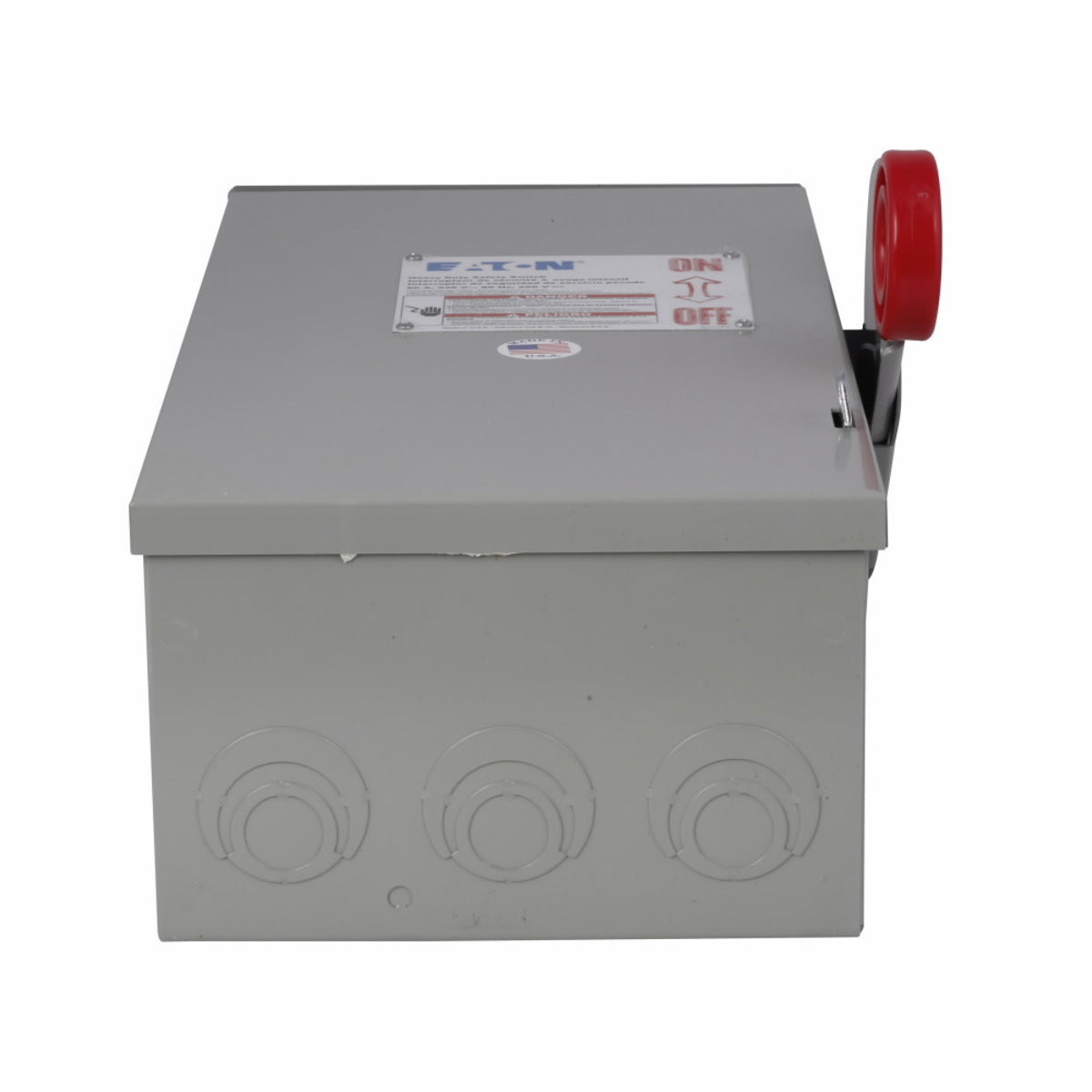

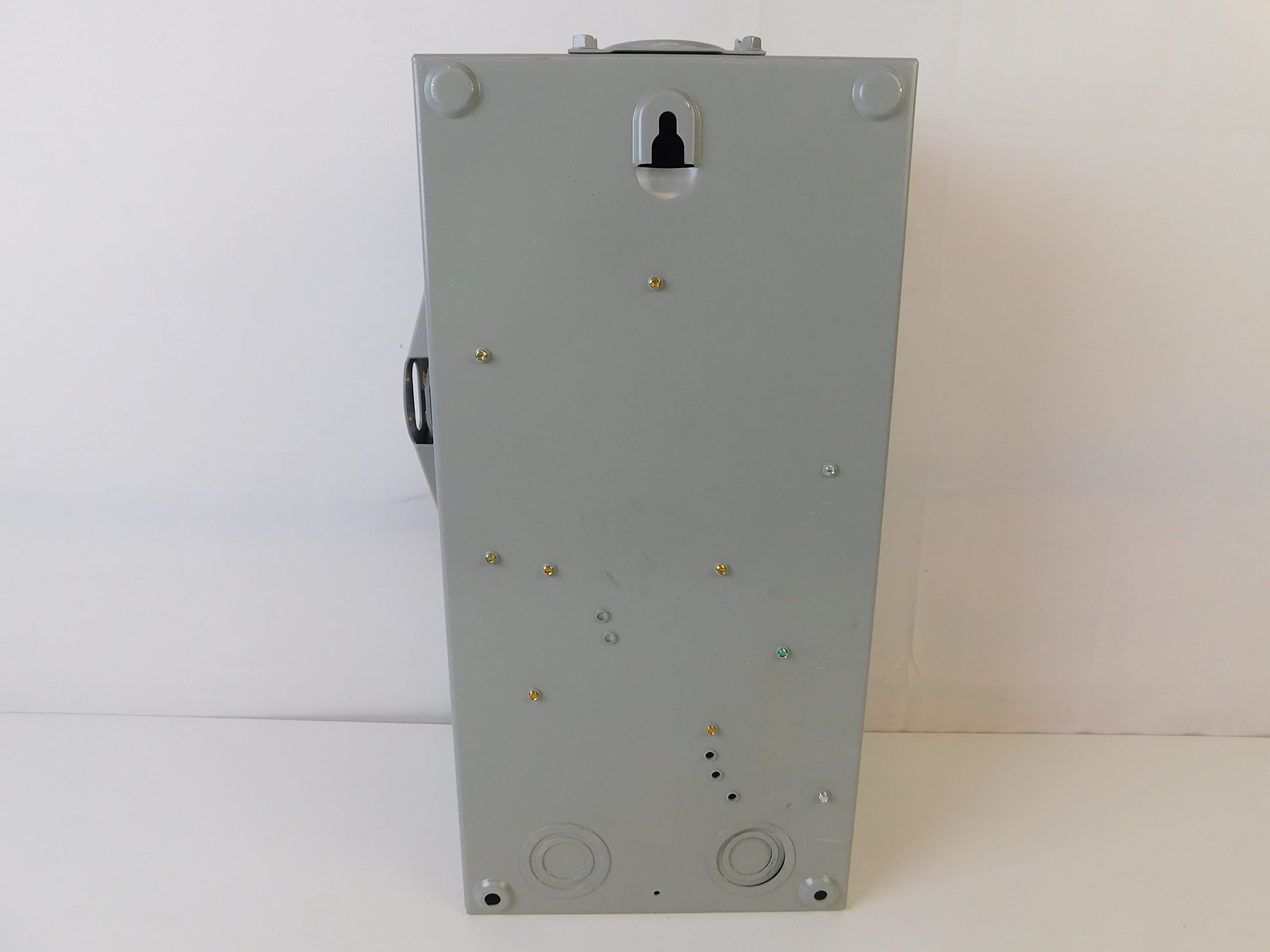

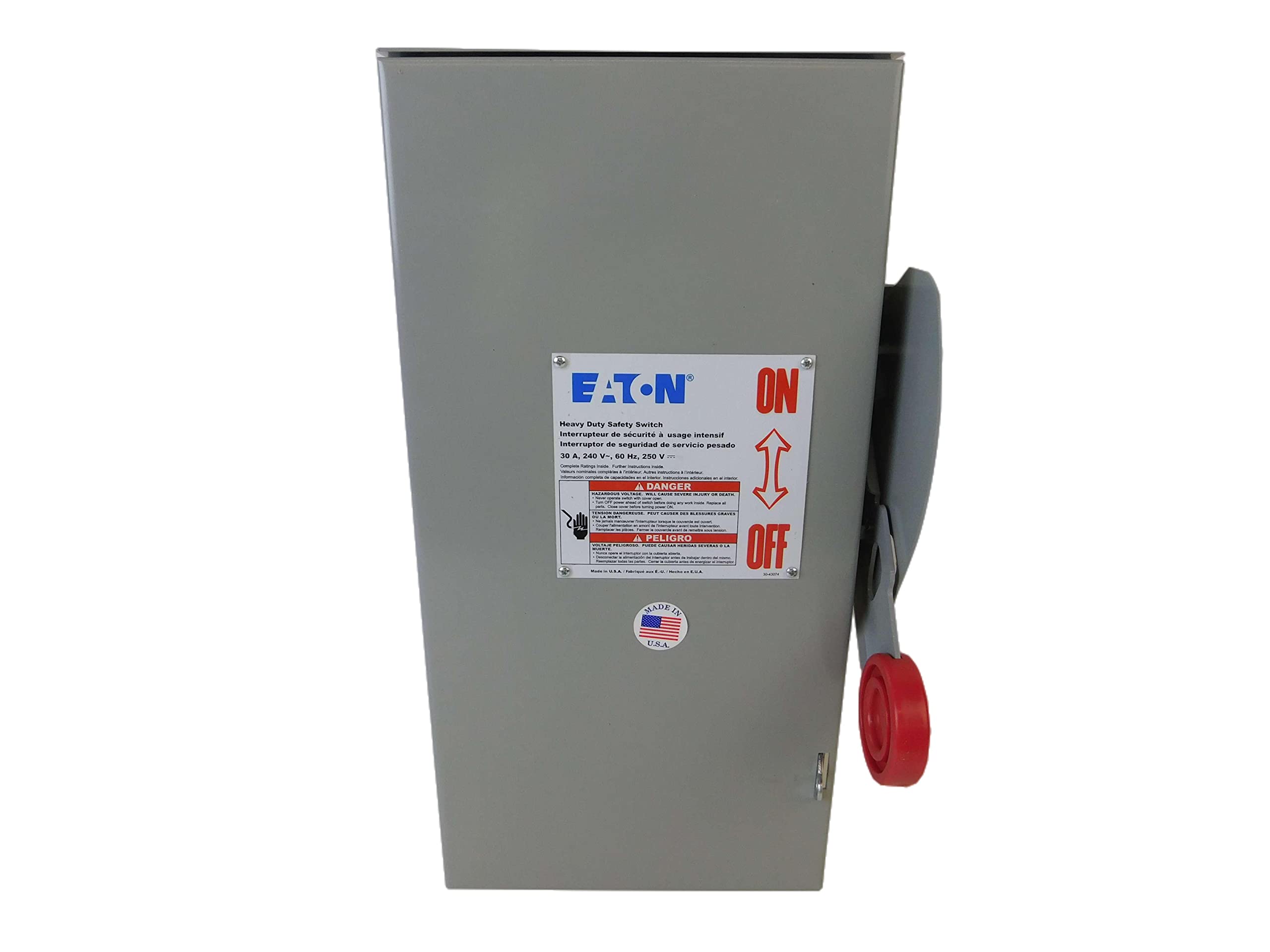

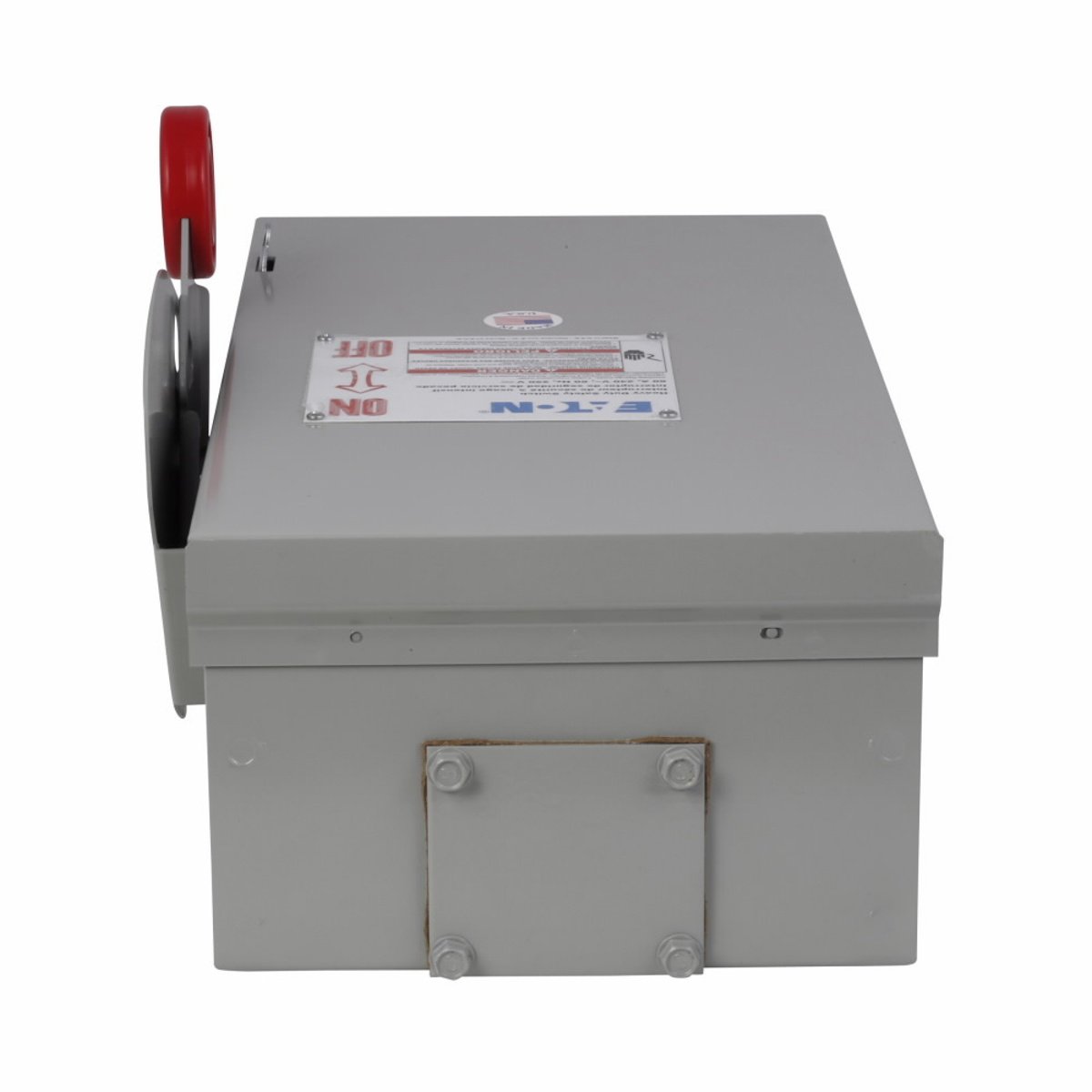

Eaton DH321NRK heavy duty fusible safety switch 30 A

Product Description

The Eaton DH321NRK is a heavy-duty safety switch designed to provide a visible means of disconnect for enhanced safety and equipment protection. Rated at 30A and 240V AC, this fusible switch features a NEMA 3R enclosure for protection against rain and sleet. It is ideal for applications requiring reliable performance and service continuity.

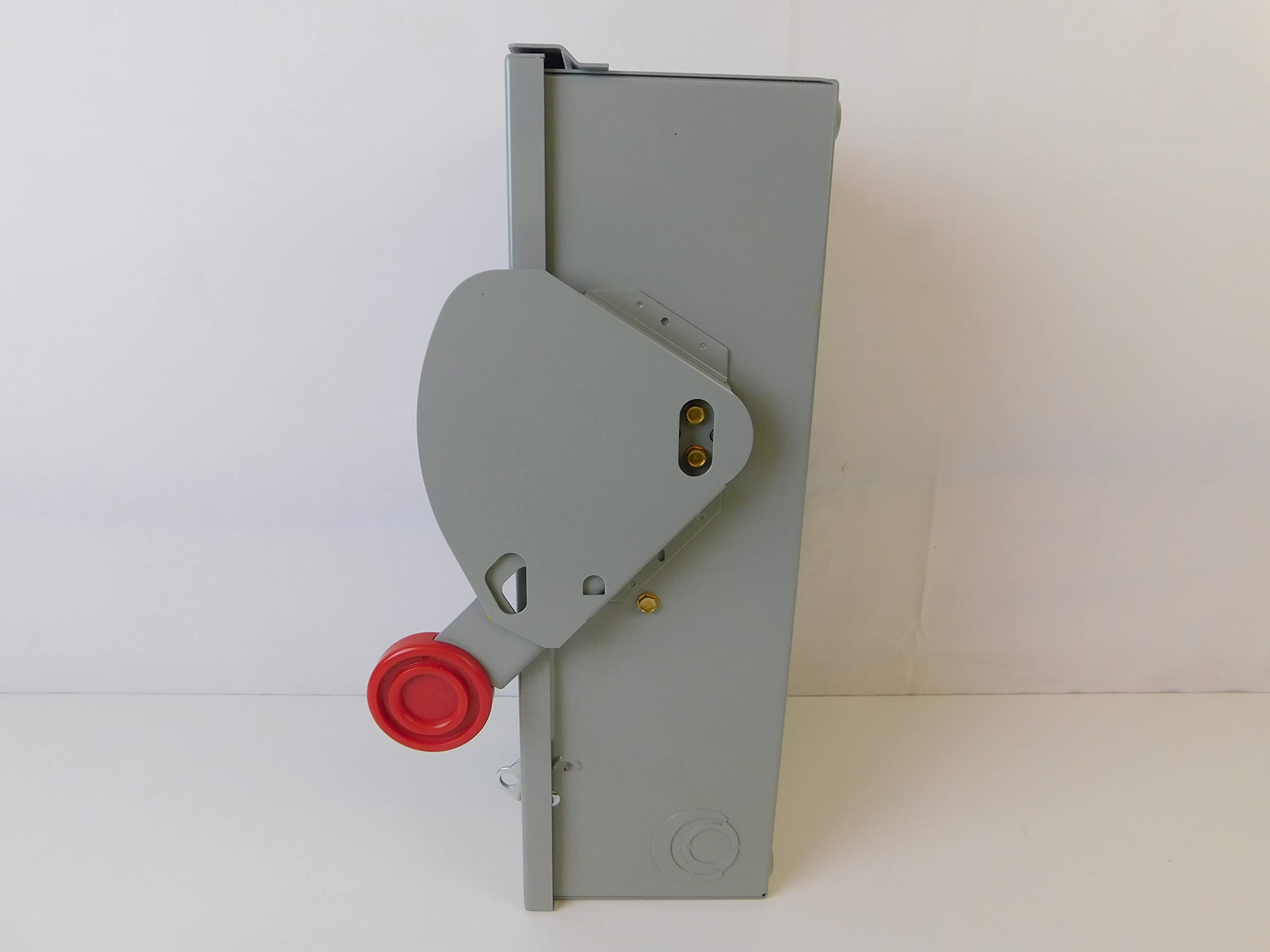

• Clearly visible palm fitting red handle for easy operation
• Visible double break rotary blade mechanism for positive open and close
• Triple padlocking capability increases personnel safety

Product Highlights

This heavy-duty fusible safety switch offers reliable performance, enhanced safety features, and robust construction for demanding applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DH321NRK
• Country of Origin: United States

Technical Specifications

• Catalog Number: DH321NRK
• Manufacturer: Eaton
• Brand: Eaton
• Amperage Rating: 30 A
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Number of Wires: 4
• Enclosure Type: NEMA 3R
• Material: Painted galvanized steel
• Horsepower: 1-3/4 hp, 3 hp, 5 hp, 7-1/2 hp
• Contact Form: TPST
• Insulation Type: Class H
• Short Circuit Current Rating: 100 kA
• Type: Heavy Duty Fusible Rainproof Single Throw
• Phase: 1/3
• Finish: Galvanized/Painted
• Standard: UL Listed
• Fuse Class: Class H
• Mounting: Surface
