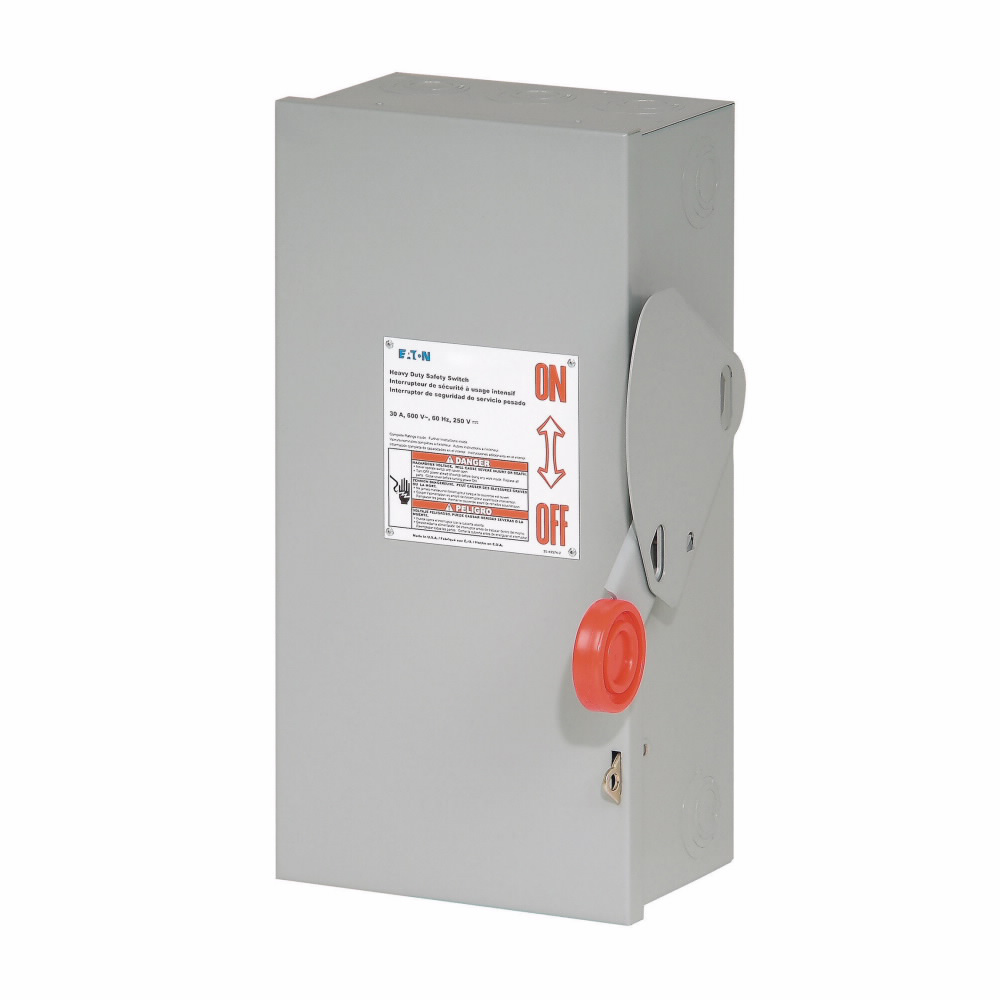

Eaton DH321NGK Heavy Duty Safety Switch 30A NEMA 1

Product Description

The Eaton DH321NGK is a heavy duty fused safety switch designed for reliable circuit control and protection. This switch operates at thirty amps, features a NEMA 1 enclosure, and is made of painted steel for durability. It provides neutral and is suitable for both commercial and institutional buildings.

• Fused safety switch rated at thirty amps
• NEMA 1 enclosure protects against accidental contact
• Designed for heavy duty applications with Class H fuses

Product Highlights

This safety switch provides a secure and accessible means of disconnecting power while enhancing safety and reliability.

Product Information

Standard Information

• Catalog Number: DH321NGK
• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Voltage Rating: 240 Volt
• Amperage Rating: 30 Amp
• Material: Steel
• Dimensions: 16-1/2 inches Length x 9-1/2 inches Width x 16 inches Height
• Weight: 14 lb
• Number of Poles: 3
• Number of Wires: 4
• Fuse Type: Cartridge, Class H, Time Delay
