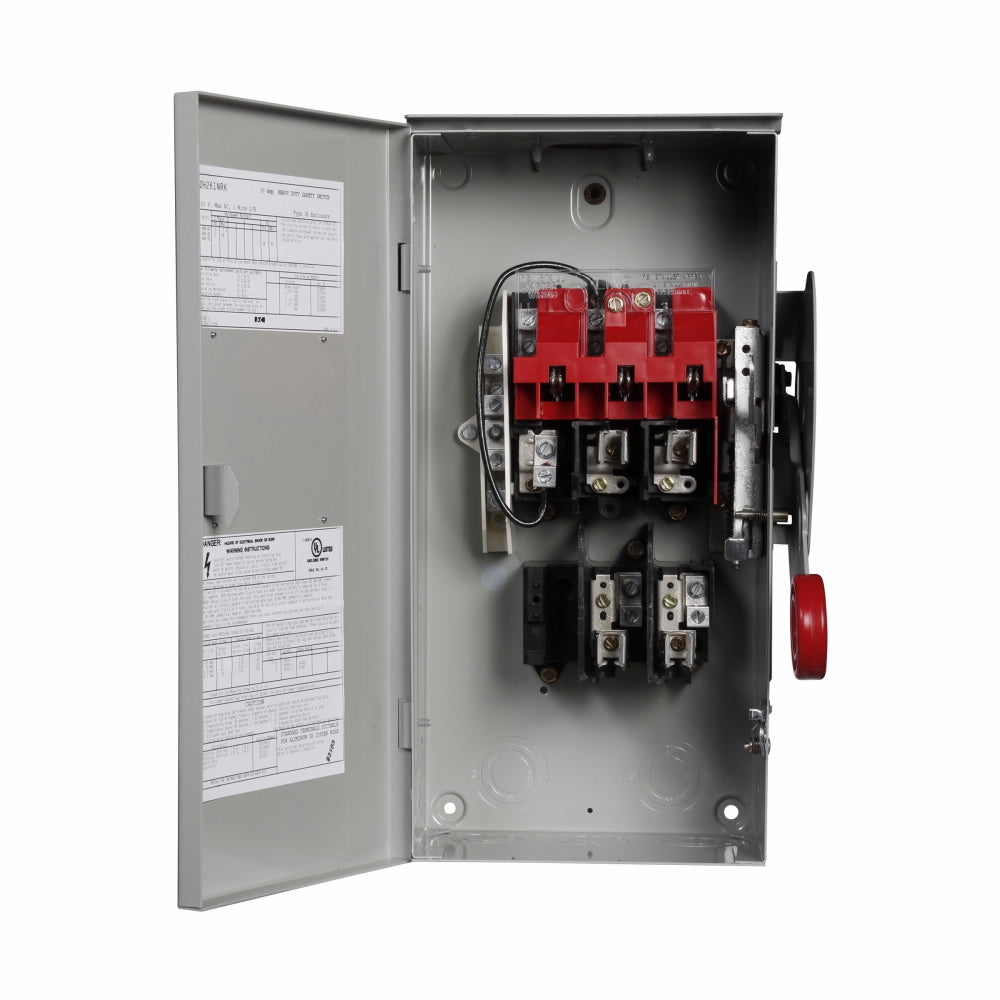

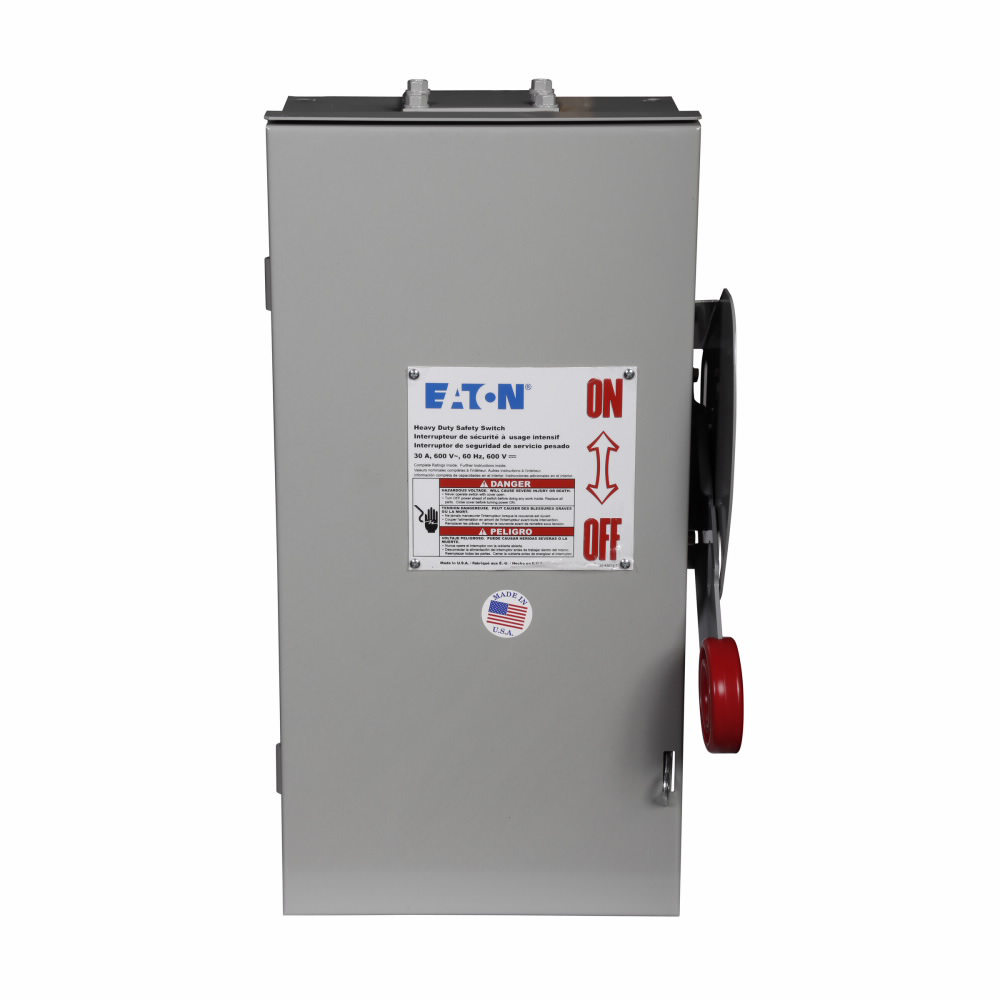

Eaton DH261URK Heavy Duty Non-Fusible Safety Switch 600V 30A 2P

Product Description

The Eaton DH261URK is a heavy duty non-fusible safety switch designed for reliable circuit disconnection. This switch accommodates up to thirty amps and can handle voltages of up to six hundred volts. It features a single-throw design and is housed in a NEMA 3R rated enclosure, making it suitable for outdoor use.

• Easy to operate palm fitting red handle for visibility.
• UL Listed for safety and compliance.
• Built with painted galvanized steel for durability.

Product Highlights

This safety switch is ideal for commercial and institutional applications. It provides a visible means of disconnection to enhance safety in electrical systems.

Product Information

Standard Information

• Brand: Eaton
• MPN: DH261URK

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 2
• Enclosure Type: NEMA 3R
• Material: Painted galvanized steel
• Dimensions: 16.5 inches L x 9.12 inches W x 8.31 inches H
• Weight: 17 lb
