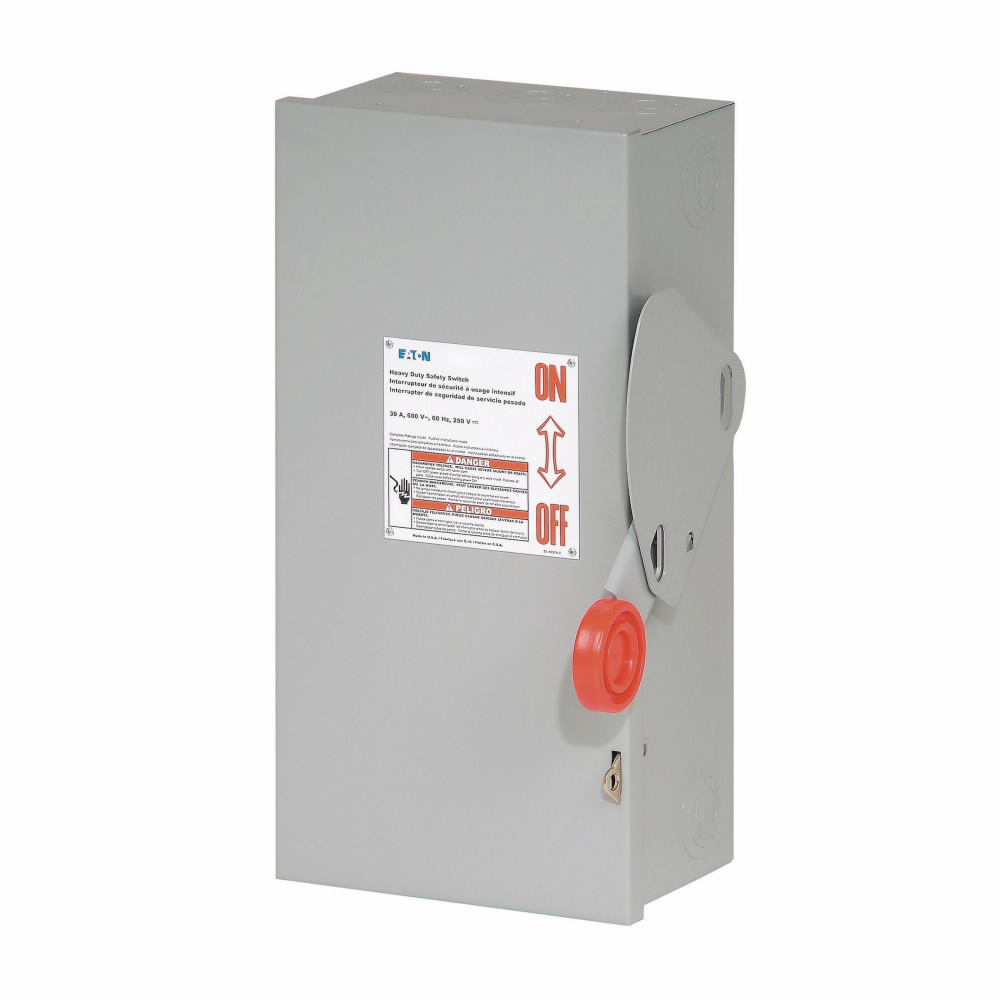

Eaton DH261UGK Heavy Duty Safety Switch 30A NEMA 1

Product Description

The Eaton DH261UGK is a heavy-duty safety switch designed for reliable circuit disconnection and control operations. This single-throw, non-fusable safety switch is rated at thirty amps and can handle up to six hundred volts. It features a NEMA one enclosure, making it suitable for indoor applications. With a steel construction, it offers durability and protection for electrical connections in commercial and institutional buildings.

• Rated for up to 30 Amps and 600 Volts
• NEMA 1 enclosure for indoor use
• Two-pole design for enhanced circuit control

Product Highlights

This switch is ideal for various commercial applications, enhancing personnel safety and equipment protection. It allows for visible circuit disconnection and complies with UL safety standards.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: DH261UGK

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 V
• Type: Single-throw
• Number of Poles: 2
• Enclosure Rating: NEMA 1
• Material: Steel
• Weight: 17 lb
• Dimensions: 10.22 in (L) x 9.12 in (W) x 14.14 in (H)
• Applications: Power distribution and control
• UPC: 782113205472
