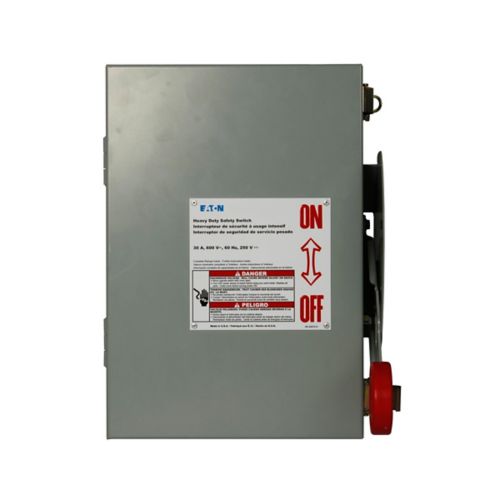

Eaton DH261UDK Safety Switch, Single Throw, 2p/600Vac/30amp, Non-Fused, NEMA 12/3R

Product Description

The EATON DH261UDK is a single throw, non-fusible safety switch designed for heavy-duty applications. Rated at 30A and 600VAC, this two-pole switch comes in a NEMA 12/3R enclosure made of painted galvanized steel. It provides a visible means of disconnect, enhancing safety and equipment protection in industrial, residential, and commercial settings.

• Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
• Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
• Triple padlocking capability increases personnel safety

Product Highlights

Heavy-duty safety switch with visible blades, suitable for service entrance use with optional kits. Compliant with NEC 230.62 (C) and UL Listed.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DH261UDK
• Country of Origin: USA

Technical Specifications

• Catalog Number: DH261UDK
• UPC: 782113205571
• Product Length/Depth: 10.22 in
• Product Height: 14.14 in
• Product Width: 8.76 in
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Catalog Notes: Suitable for service entrance use with a neutral or ground lug kit installed. Can be field modified to meetNEMA 3R rainproof requirements when a factory provided drain hole is opened.
• Product Type: Non-fusible safety switch
• Enclosure: NEMA 12
• Enclosure material: Painted galvanized steel
• Fuse configuration: Non-fusible
• Number of poles: Two-pole
• Number of wires: 2
• Type: Single-throw
• Amperage Rating: 30A
• HP rating - max: 3 at 240 Vac TD 1 Ph, 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 15 at 600 Vdc
• NEMA rating: NEMA 12, NEMA 3R
• Voltage rating: 600 V
• Product Category: Heavy Duty, Non-Fusible
• Mounting: Surface
• IP/NEMA Rating: NEMA 12
• Phase: 1
• Finish: Galvanized/Painted
• Material: Steel
• Application: Industrial, Residential and Commercial Applications
• Series: K Series
• Horsepower: 3 hp, 7.5 hp, 10 hp, 15 hp
