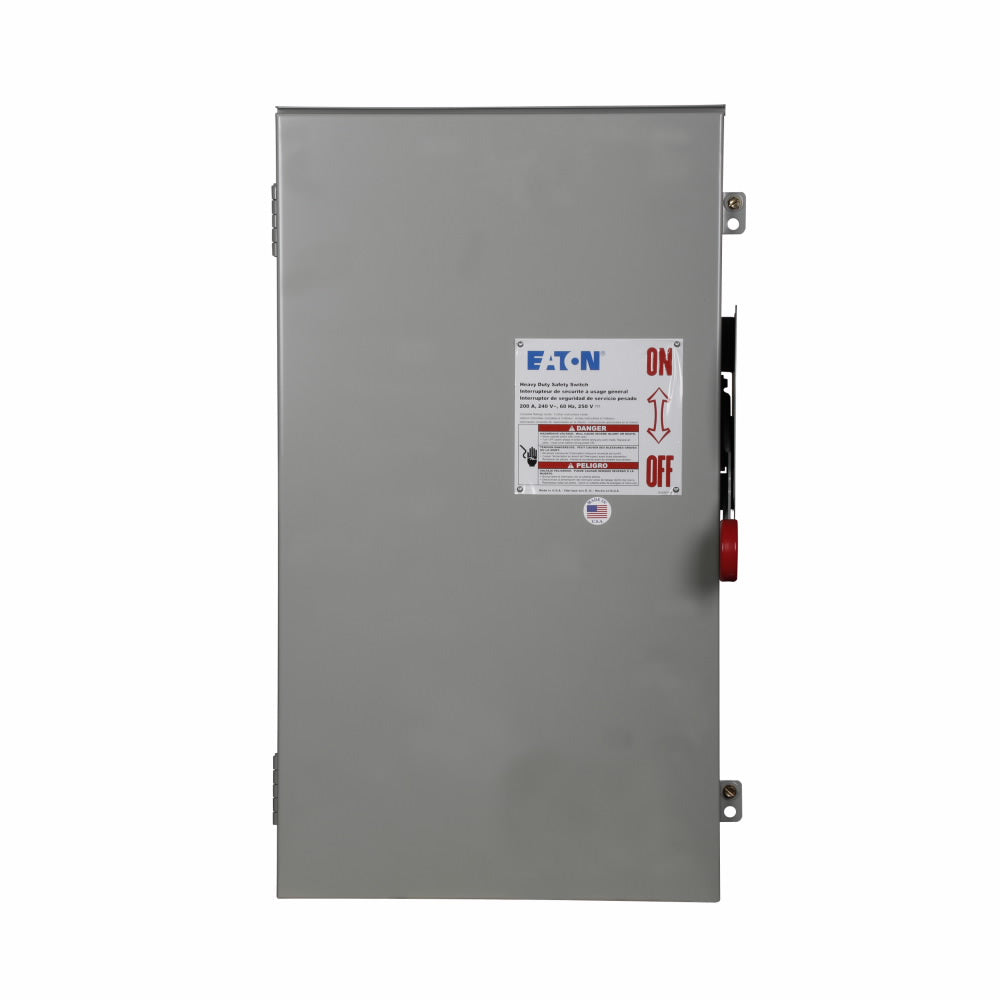

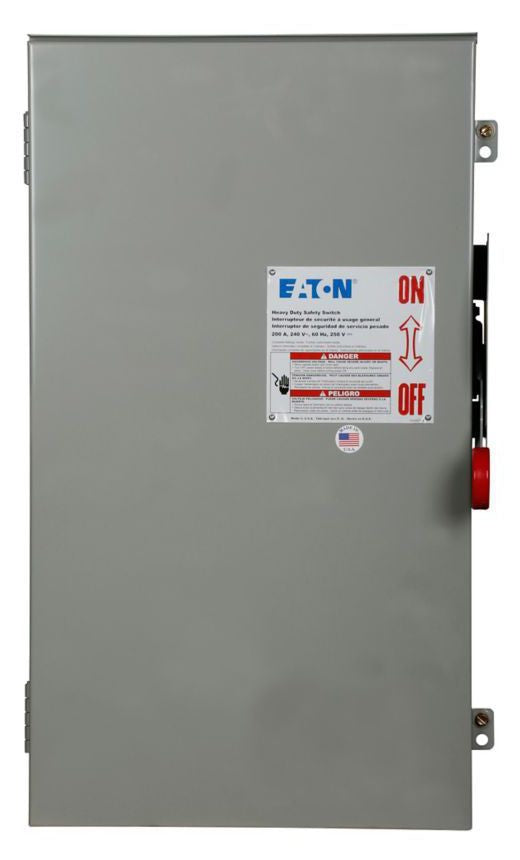

EATON DH224NRK SWITCH SAF 240VAC 200A 15HP 25HP

Product Description

EATON DH224NRK is a heavy-duty fusible single throw safety switch designed for effective electrical control and safety. It is rated for 240 volts and 200 amps, supporting up to 15 horsepower for single-phase and 25 horsepower for three-phase applications. This switch features a NEMA 3R enclosure, suitable for outdoor use, ensuring protection against rain and moisture.

• Fusible design for secure circuit protection.
• NEMA 3R rated for outdoor and damp environments.
• Enhanced visible blade for easy operation and safety.

Product Highlights

This Eaton safety switch provides a reliable means of disconnecting electrical circuits, ensuring safety during maintenance or service operations. It is ideal for commercial applications requiring frequent access to electrical controls.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: DH224NRK

Technical Specifications

• Type: Heavy Duty Fusible Single Throw
• Voltage Rating: 240 V
• Amperage Rating: 200 A
• Horsepower: 15 hp, 25 hp
• Number of Poles: 2
• Number of Wires: 3
• Enclosure Type: NEMA 3R
• Dimensions: 27.6 in x 15.91 in x 6.14 in
• Finish: Painted galvanized steel
• Application: Power Distribution and Control
