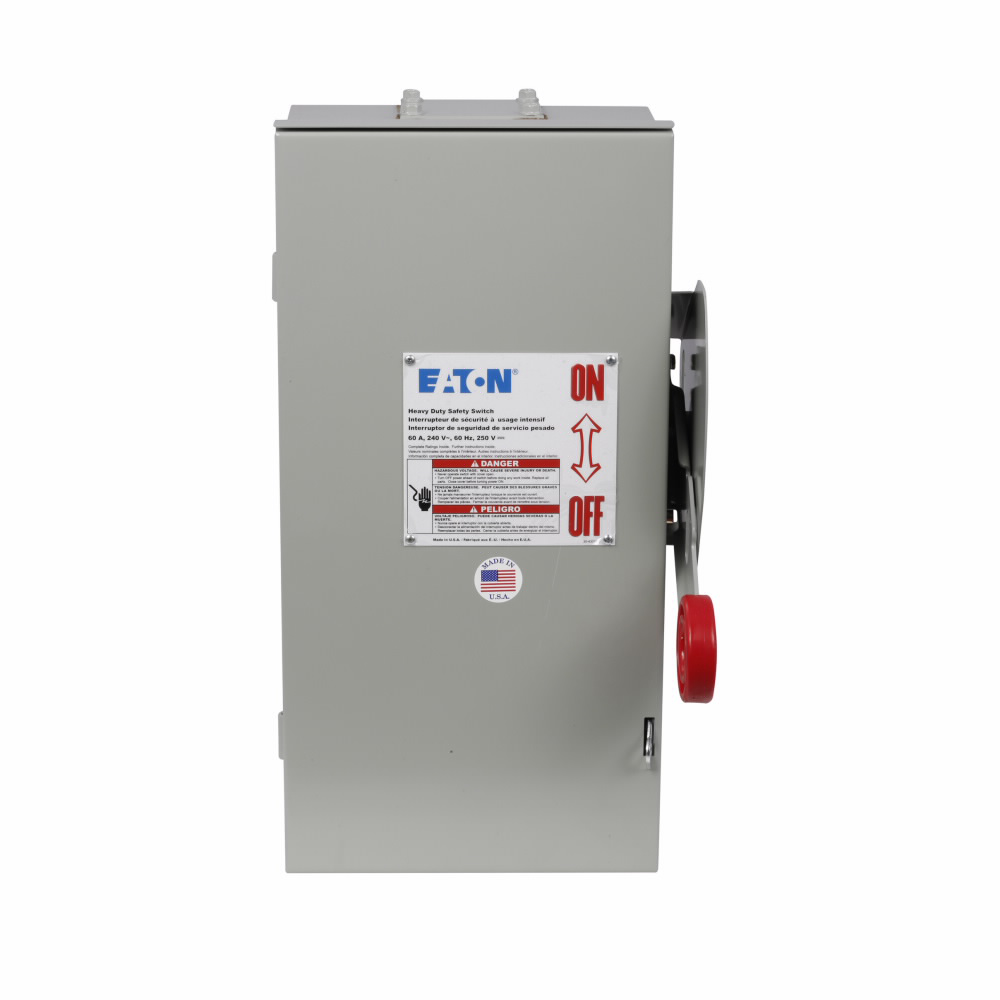

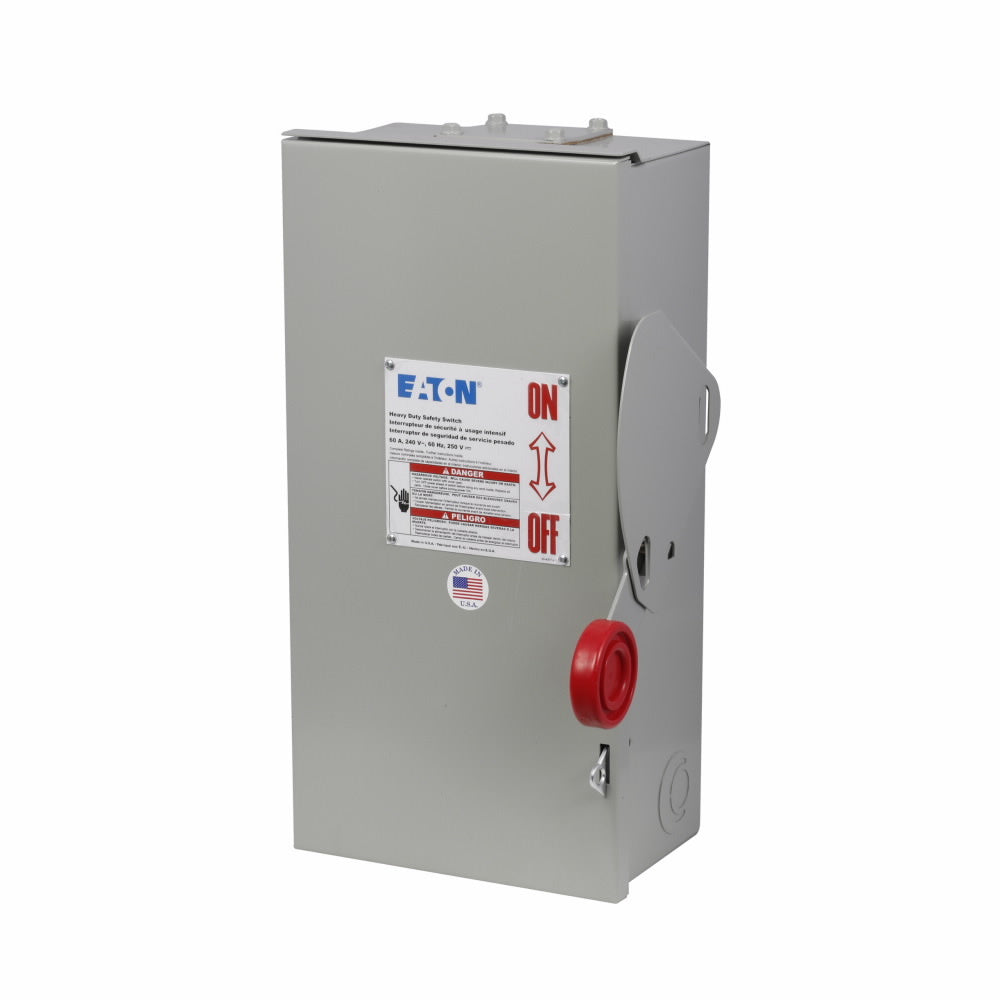

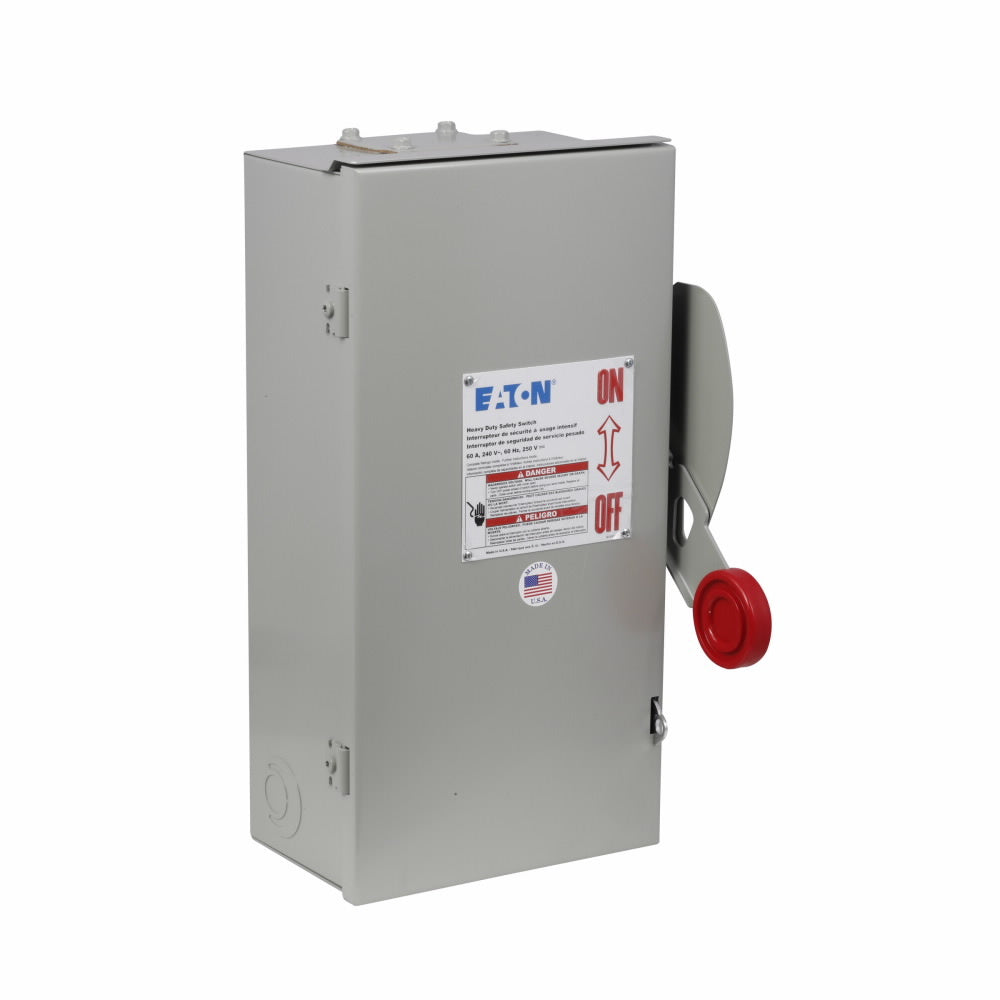

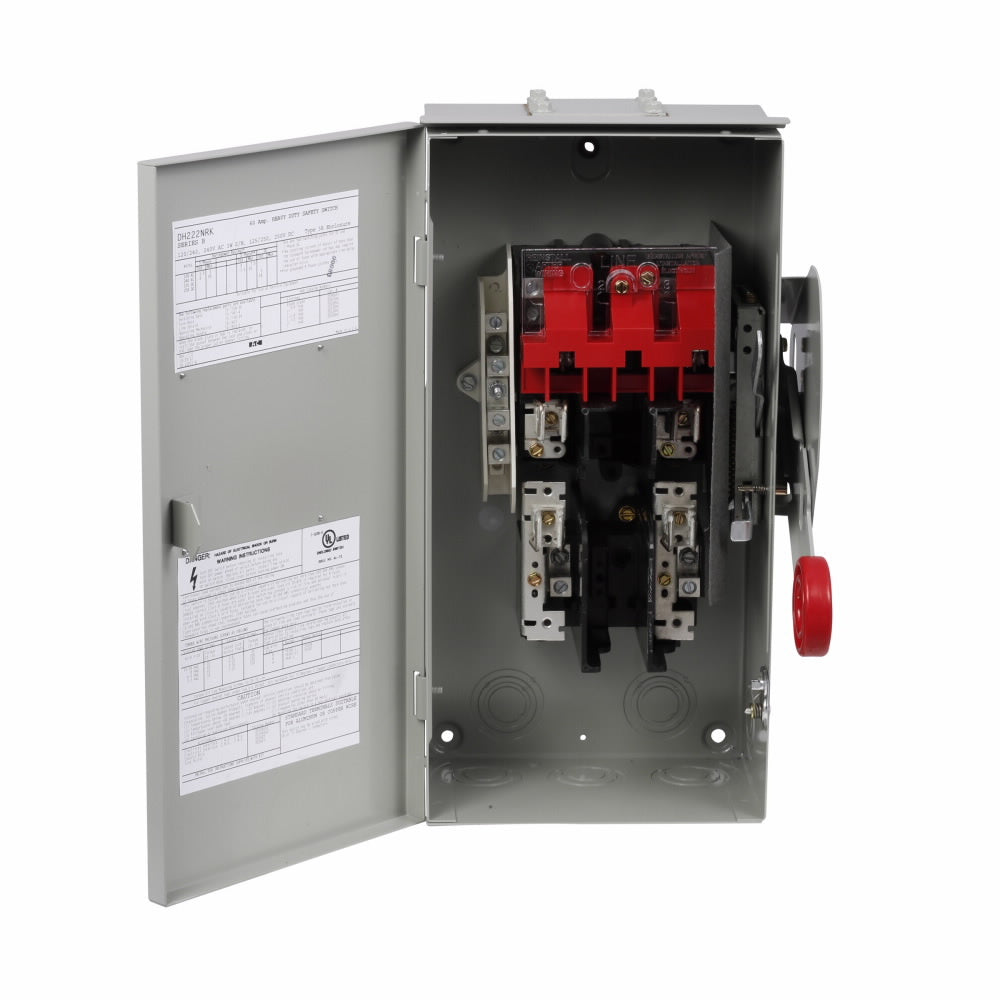

Eaton DH222NRK Heavy Duty Safety Switch 60 A NEMA 3R

Product Description

Eaton DH222NRK Heavy Duty Safety Switch is a robust solution for electrical distribution. It is a 60 Amp, two-pole, three-wire safety switch designed for effective power management. This unit is suitable for use in commercial and institutional applications.

• Durable galvanized steel construction
• Compatible with various horsepower ratings up to 15 hp
• NEMA 3R enclosure for outdoor use

Product Highlights

This safety switch enhances safety by providing a clear visible disconnection point for electrical circuits, contributing to improved worker protection.

Product Information

Standard Information

• Brand: Eaton
• Catalog Number: DH222NRK

Technical Specifications

• Type: Heavy Duty Fusible Safety Switch
• Voltage Rating: 240 Volt
• Amperage Rating: 60 Amp
• Material: Steel
• Enclosure Type: NEMA 3R
• Number of Poles: 2
• Number of Wires: 3
• Short Circuit Current Rating: 100 kA
• Application: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Dimensions: 16.5 in L x 9.12 in W x 8.31 in H
