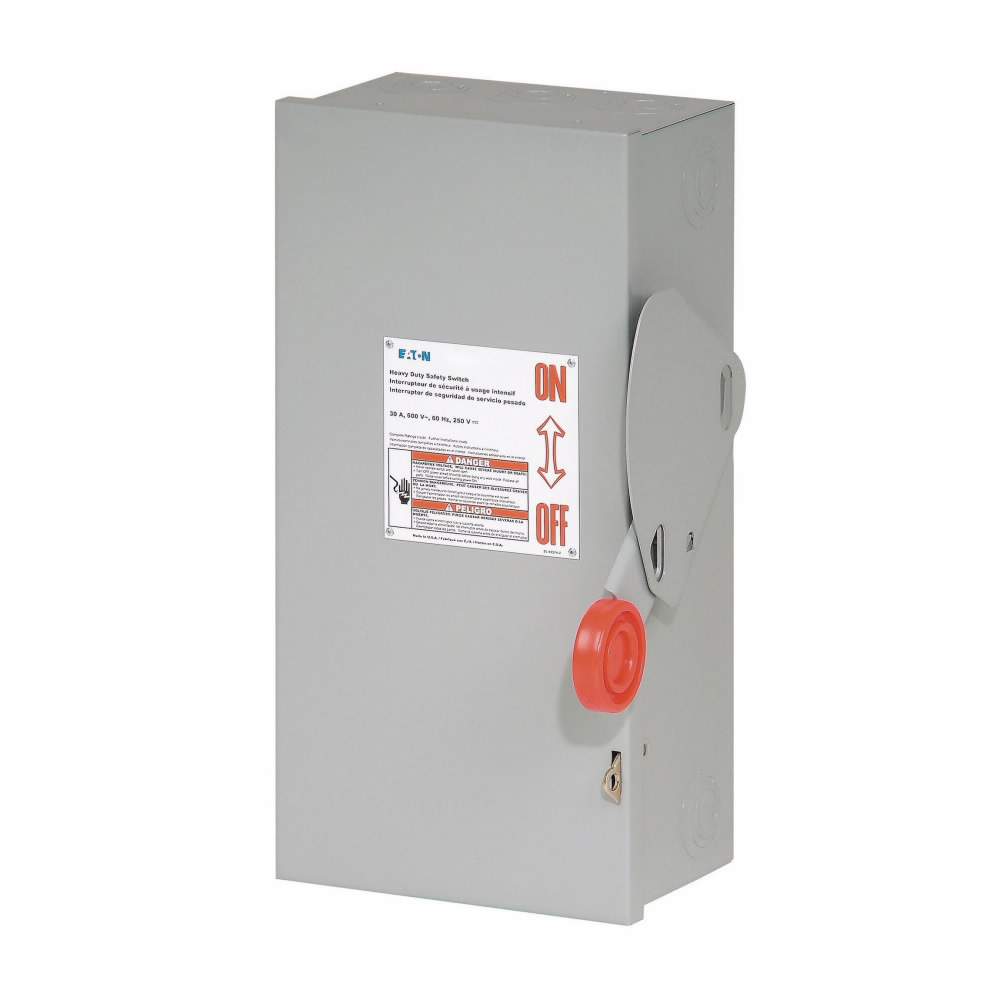

Eaton DH222NGK Heavy Duty Safety Switch 240 VAC 60A

Product Description

The Eaton DH222NGK is a heavy-duty safety switch designed for reliable circuit open and close operations. This fused safety switch is rated for 60 amperes and operates at 240 volts. Built from painted steel and equipped with a NEMA 1 enclosure, this switch is ideal for commercial and institutional buildings.

• Two-pole, three-wire setup
• Maximum horsepower rating of three
• Meets CSA and UL standards for safety

Product Highlights

This Eaton safety switch features a visible palm-fitting handle for easy operation and an interlocking mechanism that enhances safety by keeping the door closed when the handle is in the ON position. It is suitable for service entrance use, ensuring dependable performance in demanding applications.

Product Information

Standard Information

• Catalog Number: DH222NGK
• Manufacturer: Eaton

Technical Specifications

• Material: Steel
• NEMA Rating: 1
• Weight: 17 lb
• Dimensions: 16.5 in (L) x 9.12 in (W) x 8.31 in (H)
• Voltage Rating: 240 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Number of Wires: 3
