Eaton DG326NRK Electrical DG326NRK 120/240 VAC 600 Amp 75 to 200 Hp 3-Pole 4-Wire Fusible Single Throw Safety Switch

Product Description

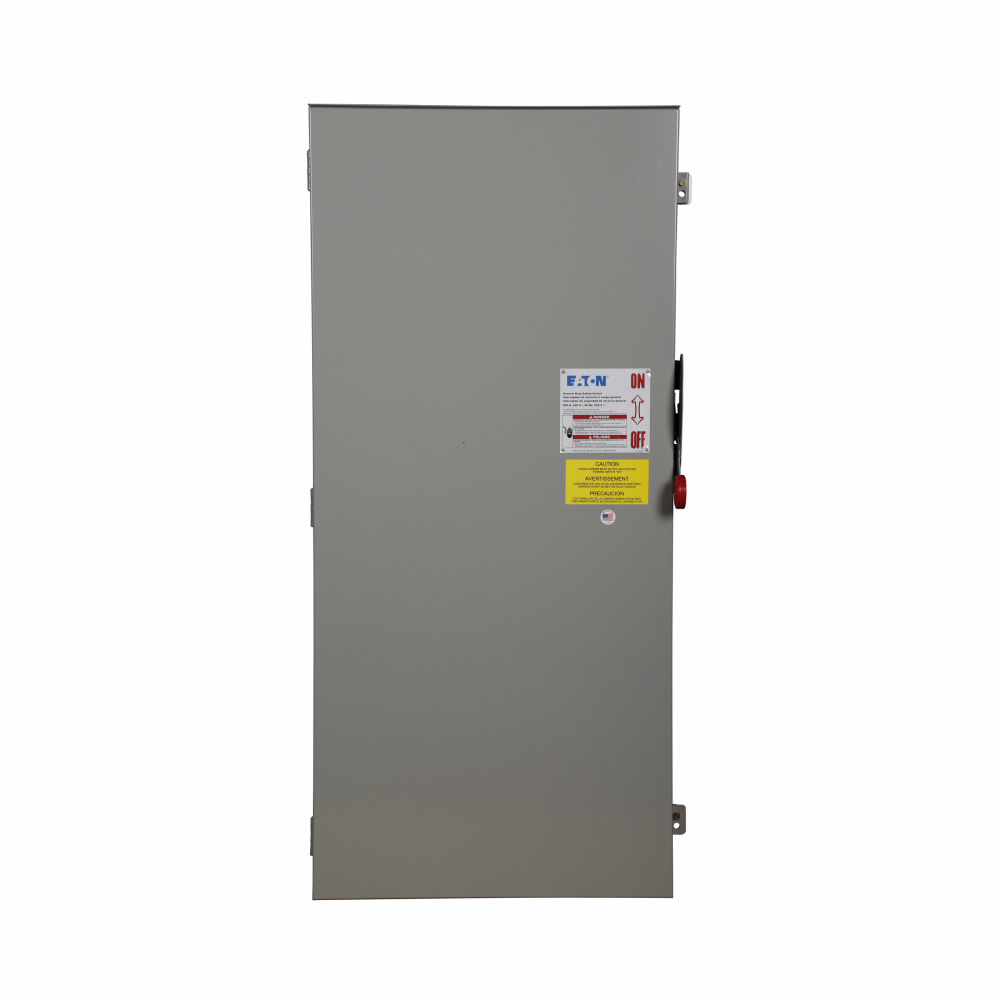

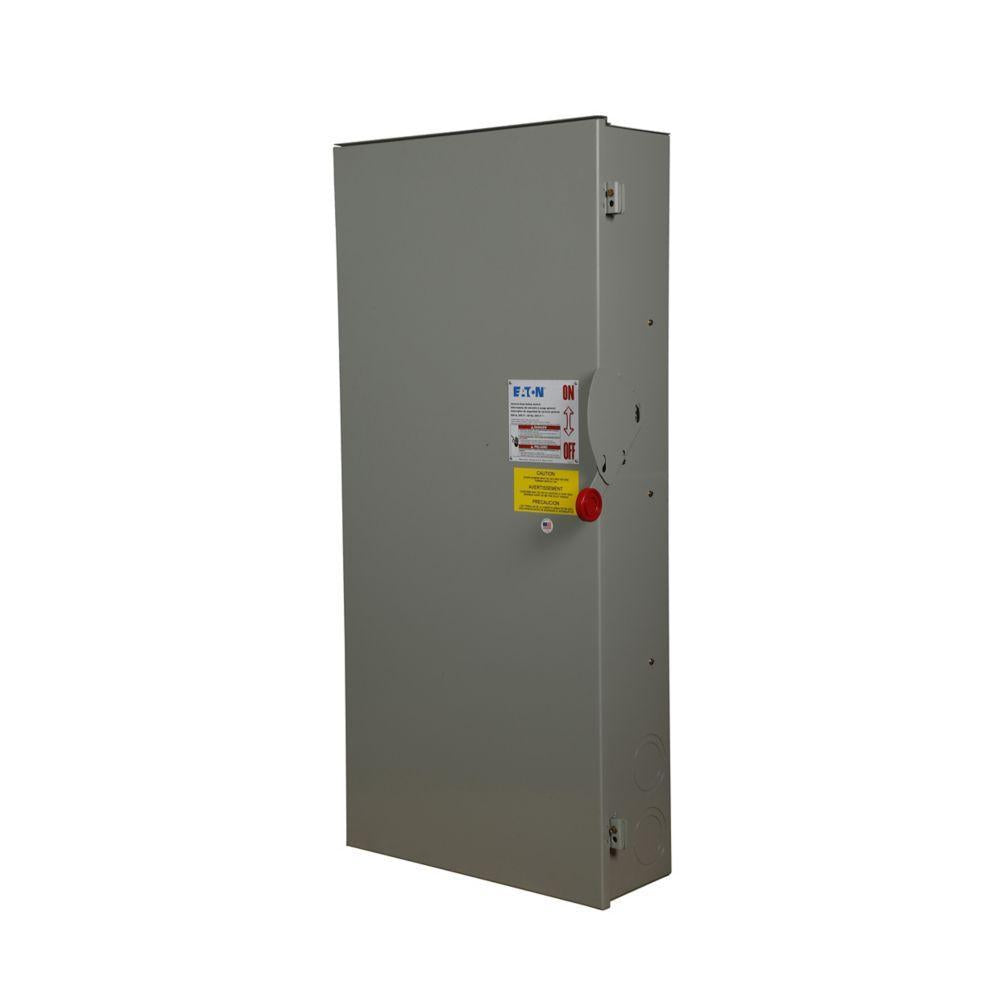

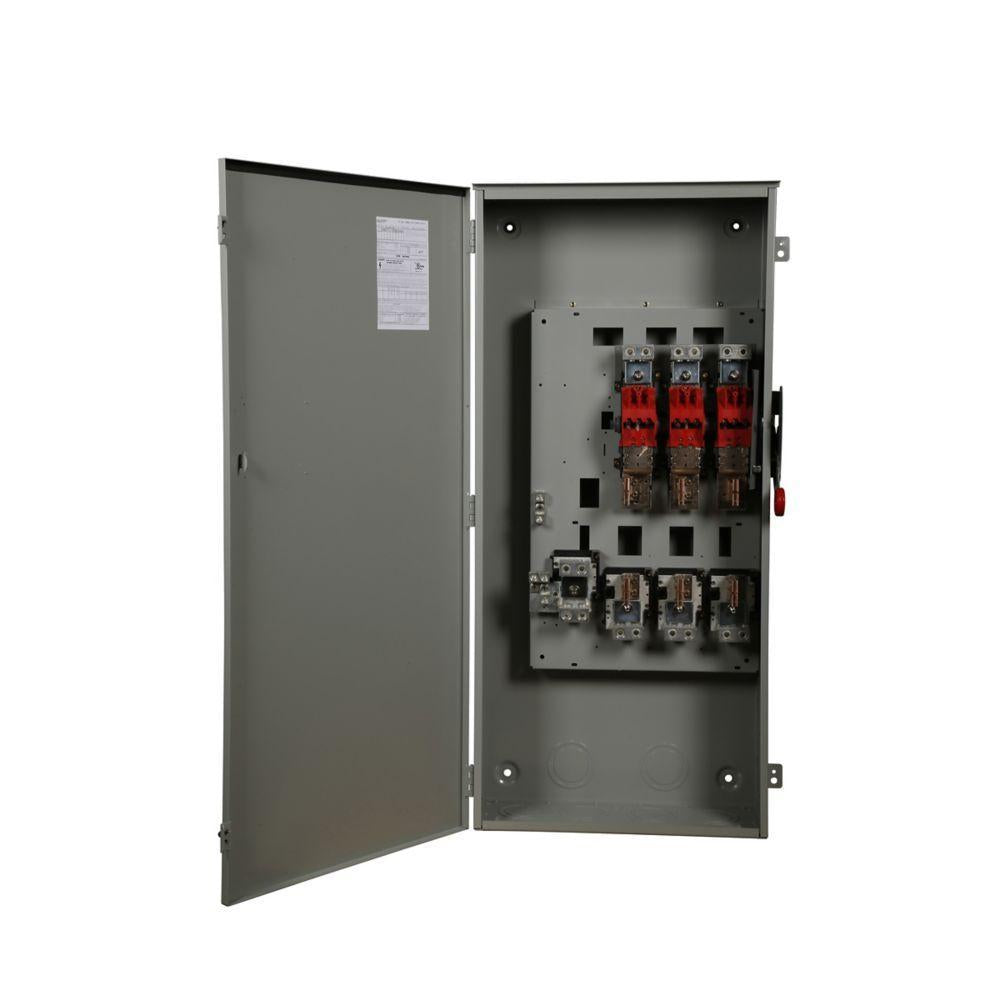

The Eaton DG326NRK general duty cartridge fuse safety switch is rated for 600A, NEMA 3R, and 240V. This three-pole, four-wire switch is made with painted galvanized steel and uses Class H fuses. Suitable for light duty motor circuits and service entrance applications in residential and commercial settings.

• General duty cartridge fuse safety switch
• NEMA 3R enclosure
• Fusible with neutral

Product Highlights

This Eaton safety switch offers reliable performance for connecting or disconnecting loads, with overcurrent protection via installed fuses.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DG326NRK
• Country of Origin: United States of America

Technical Specifications

• Type: General Duty, Cartridge Fused
• Brand: Eaton
• Height: 52.7 Inch
• Length: 14.25 Inch
• Voltage: 120/240 VAC
• Amperage: 600 Amp
• Material: Steel
• Enclosure: 3R
• NEMA Size: 3R
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
• Enclosure Material: Steel
• Finish: Galvanized/Painted
• Mounting Type: Surface
• Phase: 3
• Series: K Series
• Voltage Rating: 240 VAC
• Horsepower: 75 hp, 200 hp
• Fuse Type: Class H fuses
• Switch Type: Single Throw Safety Switch
• Duty: General duty
• Neutral Type: Solid
• Fusible: Fusible with Neutral
• Item Name: General-Duty Safety Switch
• Standards: UL 98 E5239 Listed, NEMA KS-1 Rated
• UPC: 78211363923
• Manufacturer Name: Eaton
• Manufacturer Part Number: DG326NRK
• Product Length/Depth: 14.25 in
• Product Height: 52.7 in
• Product Width: 24 in
• Certifications: UL Listed
• Fuse configuration: Fusible with neutral
• Amperage Rating: 600A
• Fuse class provision: Class H fuses
• Product Category: General duty safety switch
• Application: Commercial, Institutional Buildings, Control, Light Duty Motor Circuits, Service Entrance, Residential and Power Distribution Applications
• Current Rating: 600 A
• Neutral: Yes
• Composition: Metallic
• Approvals: CUL, UL
