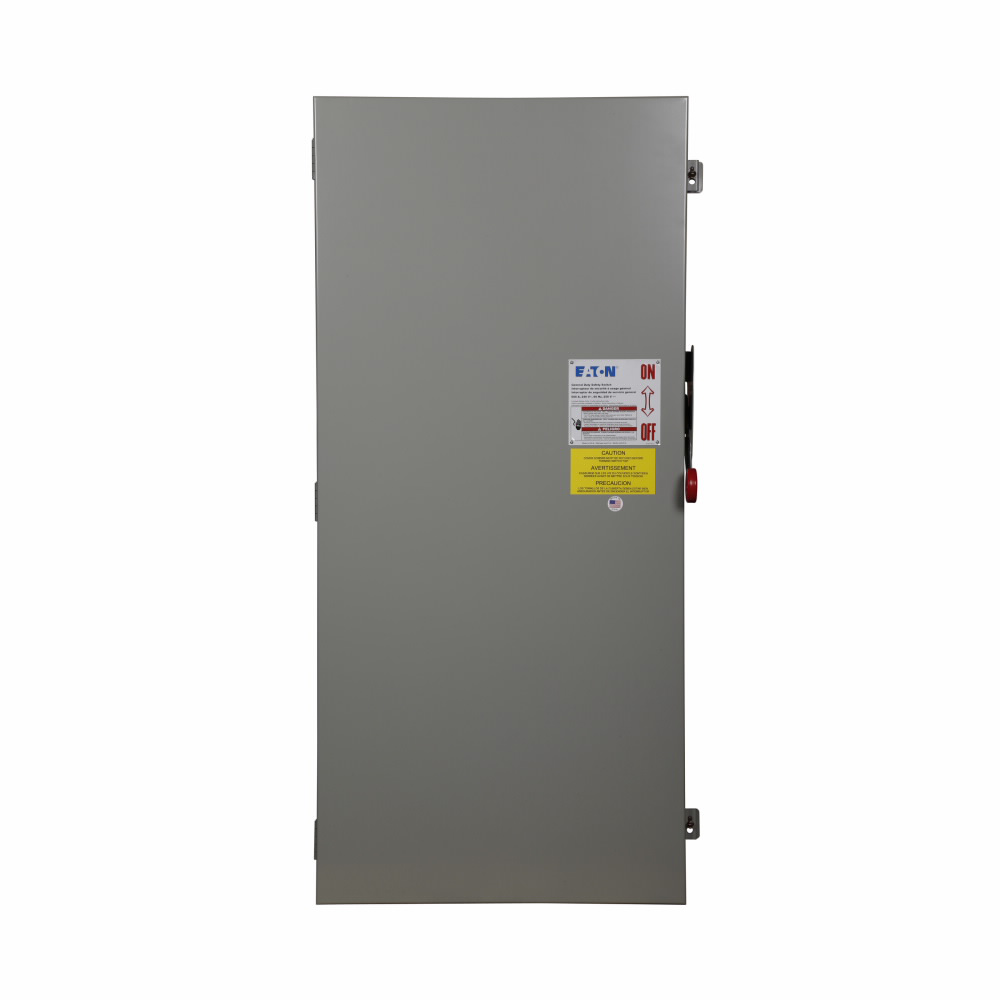

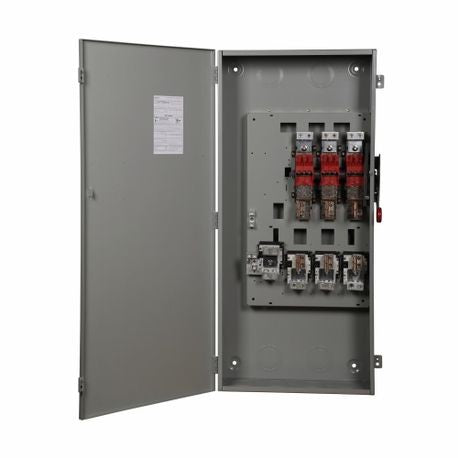

Eaton DG326NGK cartridge fusible safety switch 600 A at 240 VAC

Product Description

Eaton DG326NGK is a cartridge fusible safety switch suitable for light duty motor circuits and service entrance applications. This three-pole, four-wire switch provides reliable performance at 600 Amperes with a voltage rating of 240 VAC. The switch is manufactured using painted steel and is UL listed, ensuring compliance with safety standards.

• Three-pole, four-wire design
• Fusible with neutral
• Rated at 600 amps

Product Highlights

Ideal for commercial and institutional buildings, this switch ensures safe power distribution and controls.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DG326NGK
• Voltage Rating: 240 VAC
• Amperage Rating: 600 A
• Number of Poles: 3
• Number of Wires: 4
• Enclosure Type: NEMA 1
• Material: Painted Steel
• Weight: 145 lb
• Dimensions: 14-1/4 in (length) x 27.5 in (width) x 11-1/2 in (height)
• Applications: Power distribution and controls for commercial and institutional buildings
