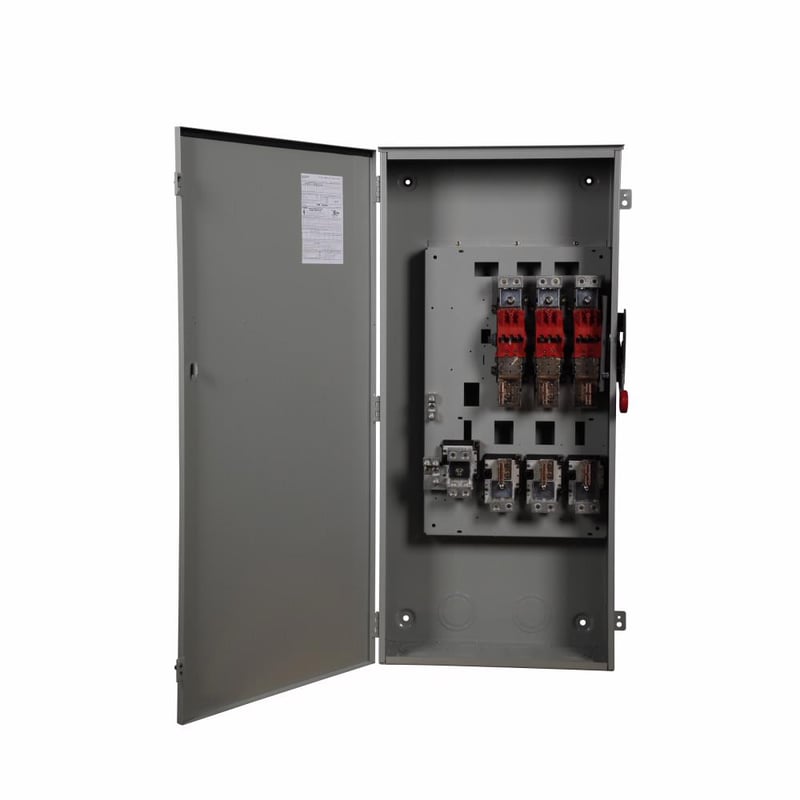

Eaton DG326FRK 600 Amp, 3 Pole, 240 Volt, NEMA 3R, General Duty Cartridge Fuse Safety Switch

Product Description

The Eaton DG326FRK is a cartridge fuse safety switch rated for 600 Amps. It operates at 240 Volts and complies with NEMA 3R standards. This switch is suitable for indoor and outdoor use and features a fusible design without a neutral connection. It is built with painted galvanized steel for durability and reliability in various environments.

• 600 Amp capacity with three poles
• NEMA 3R rated for rainproof application
• Fusible without neutral for versatility

Product Highlights

This switch is ideal for commercial and institutional buildings. The ample wire bending space allows for easier installation. The visible ON/OFF indication aids in compliance with lock out tag out (LOTO) requirements.

Product Information

Standard Information

• Brand: Eaton
• MPN: DG326FRK

Technical Specifications

• Amperage Rating: 600 A
• Voltage Rating: 240 V
• Number Of Poles: 3 Pole
• Material: Galvanized Steel
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Product Type: Cartridge fuse safety switch
• Application: Power Distribution and Controls
