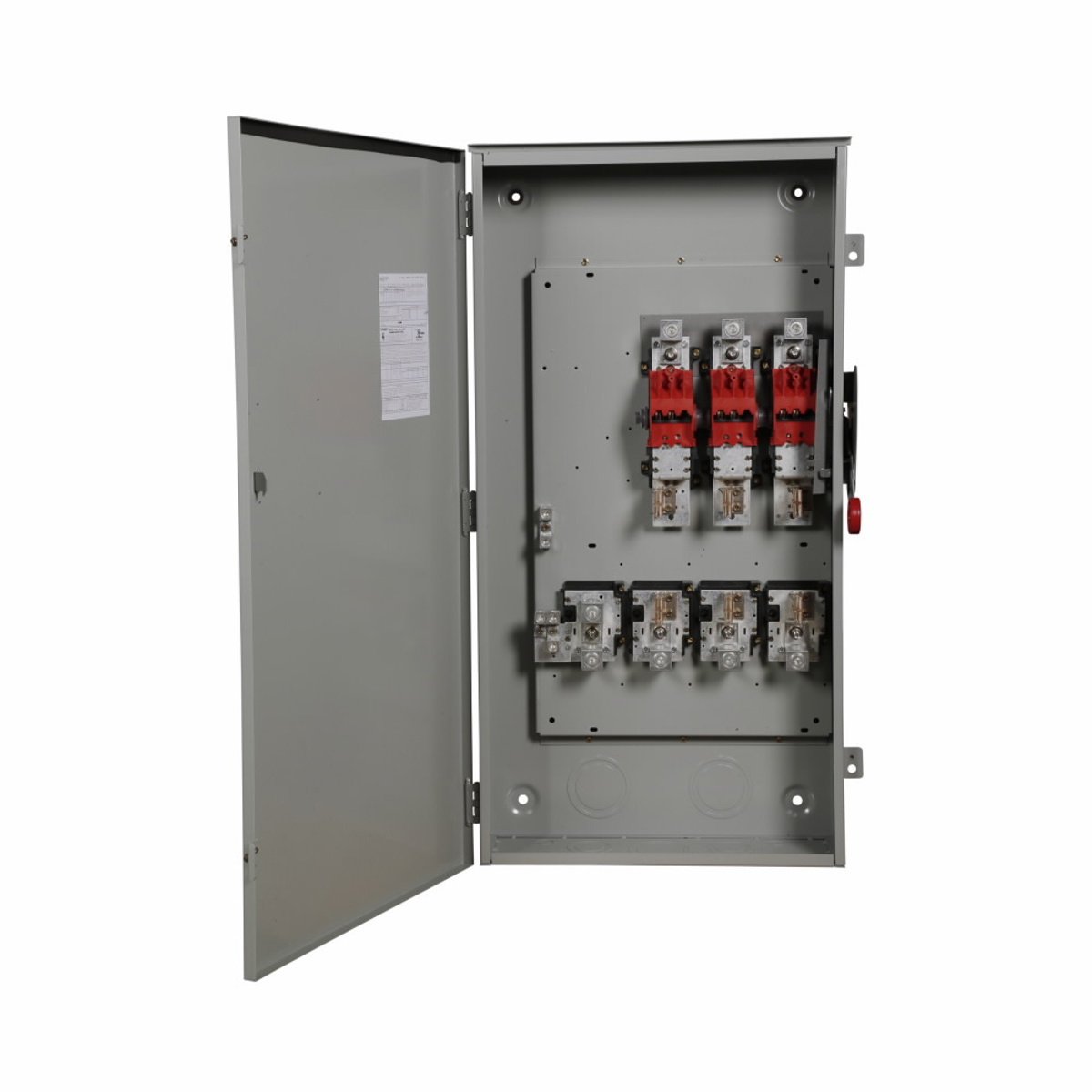

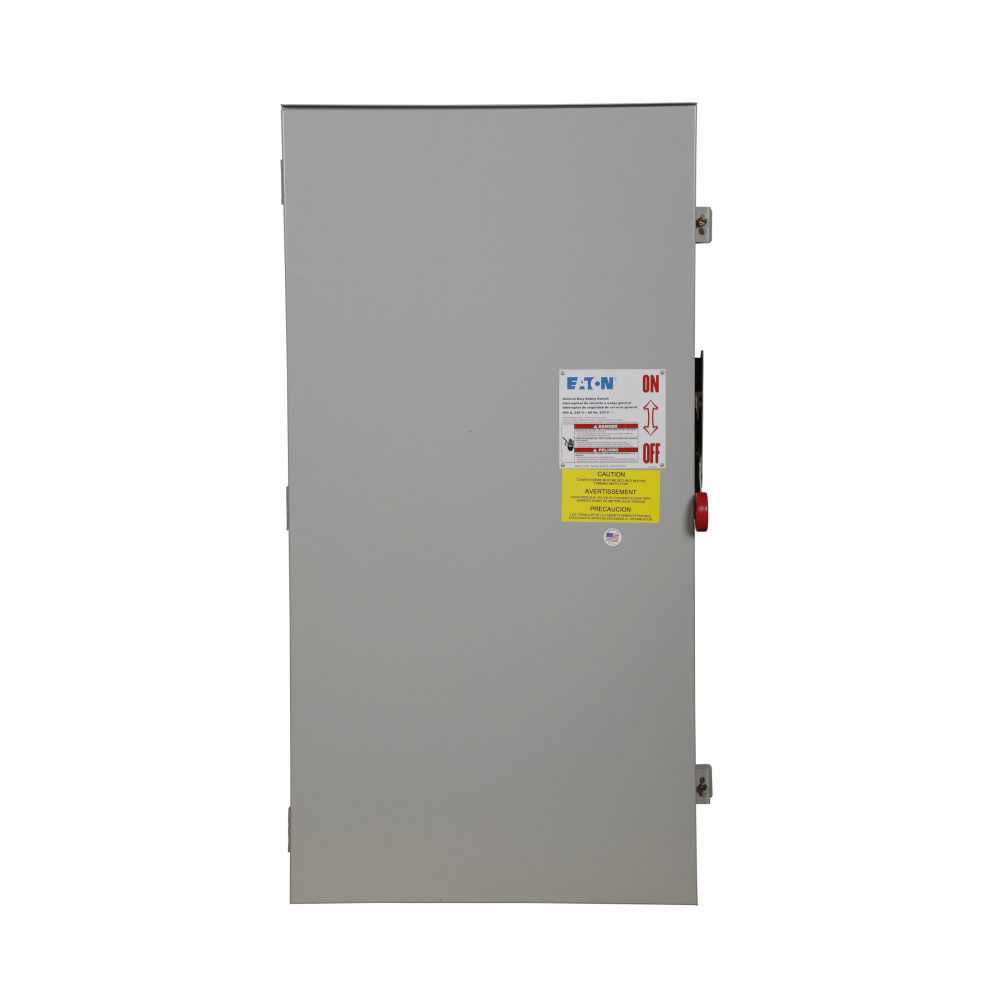

Eaton DG325URK General Duty Non-Fusible Safety Switch 400 Amp 240 VAC

Product Description

The Eaton DG325URK is a general duty non-fusible safety switch designed to handle up to four hundred amps at two hundred forty volts. This switch is suitable for both residential and commercial applications. It features a single-throw mechanism and comes ready for outdoor use with its NEMA 3R rating. The enclosure is made from painted galvanized steel ensuring durability and long service life.

• Rated for 400 amps and 240 volts.
• Constructed from painted galvanized steel for weather resistance.
• Meets UL standards and is compliant with NEC regulations.

Product Highlights

This switch provides ample bending space for easier wire installation and features a visible double break rotary blade mechanism for reliable operation.

Product Information

Standard Information

• Catalog Number: DG325URK
• Manufacturer: Eaton

Technical Specifications

• Voltage: 240 Volt
• Amperage: 400 Amp
• Material: Painted galvanized steel
• Application: Commercial / Institutional Buildings
• Number of Poles: 3 Pole
• Enclosure: NEMA 3R
• Size: 12.63 inches x 23 inches x 10.5 inches
• Weight: 97.75 lbs
