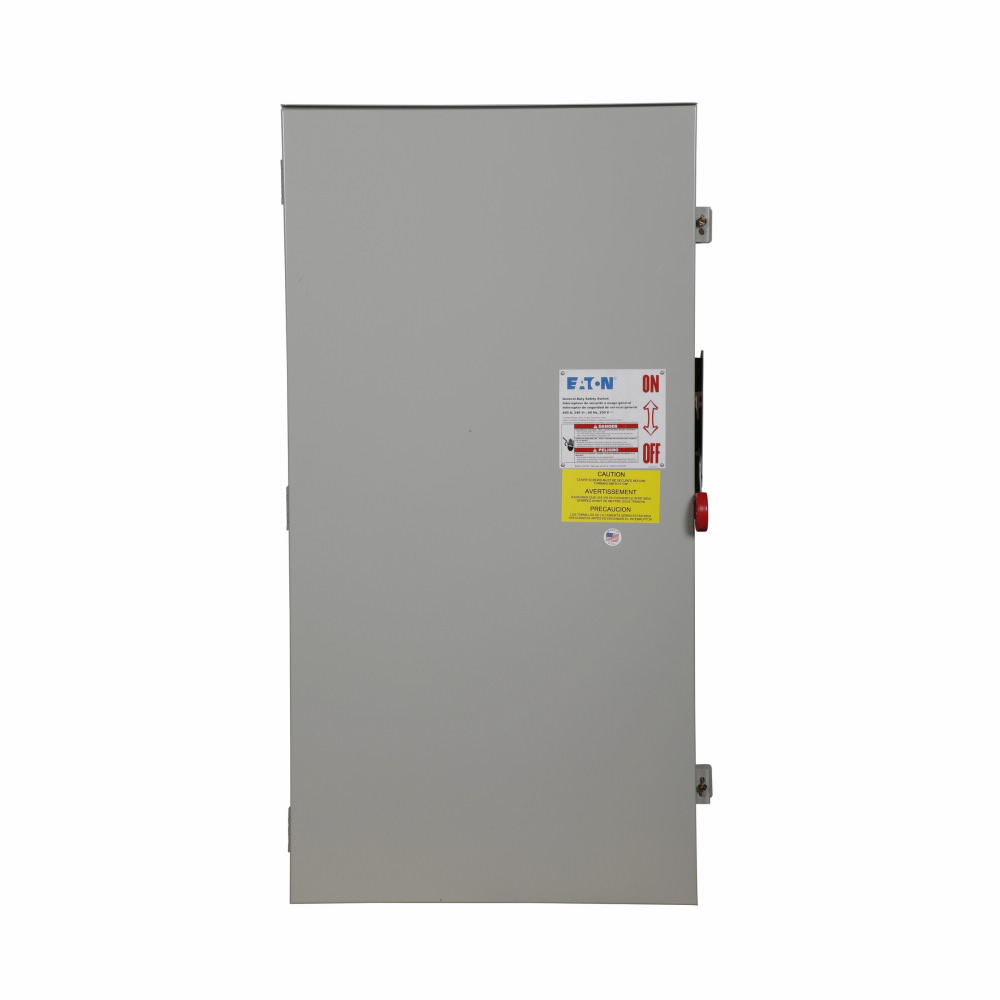

EATON DG325NRK DG Series Cartridge Fusible General Duty Safety Switch, 240 VAC, 400 A, 50 to 125 hp, TPST Contact, 3 Poles

Product Description

The EATON DG325NRK is a general duty cartridge fusible safety switch designed for applications requiring a reliability in power distribution. This safety switch operates at 240VAC with an amperage rating of four hundred. It supports motor circuits rated between fifty and one hundred twenty-five horsepower. The switch features a triple-pole, four-wire configuration and utilizes a TPST contact form. It is housed in a NEMA 3R enclosure suitable for surface mounting.

• General duty safety switch for residential and commercial use
• Features ample wiring space for installation
• Visible ON/OFF indication for user safety

Product Highlights

This safety switch is ideal for light duty circuits and service entrance applications.

Product Information

Standard Information

• Brand: EATON
• MPN: DG325NRK

Technical Specifications

• Type: Cartridge Fusible General Duty
• Voltage Rating: 240 VAC
• Amperage Rating: 400 A
• Number of Poles: 3
• Number of Wires: 4
• Horsepower: 50 to 125 hp
• Dimensions: 11.16 in L x 22.66 in W x 44.31 in H
• Material: Steel, Galvanized/Painted
• Enclosure Type: NEMA 3R
