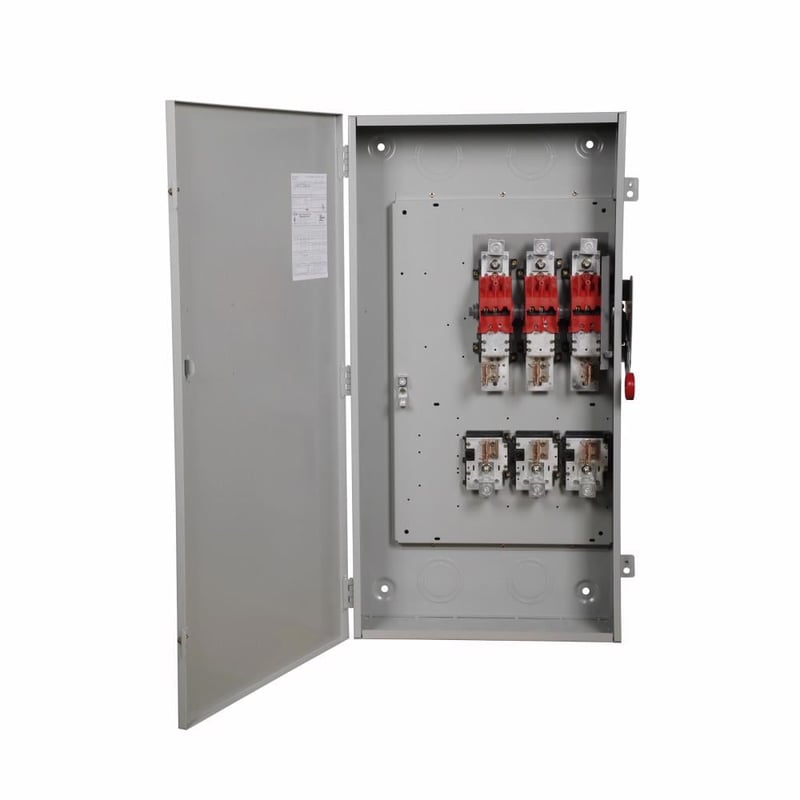

Eaton DG325FGK 400 Amp 3 Pole 240 Volt NEMA 1 General Duty Cartridge Fuse Safety Switch

Product Description

The Eaton DG325FGK is a general duty cartridge fuse safety switch designed for reliable performance in commercial and institutional buildings. This safety switch has a rated current of four hundred amps and operates at two hundred forty volts. It features three poles and is constructed from painted steel, providing sturdy protection for electrical systems.

• Rated for three poles and three wires.
• UL listed for safe operation.
• Ample wire bending space for easier installation.

Product Highlights

This switch is suitable for service entrance applications and complies with NEC standards. It offers visible ON/OFF indication and maintains lockout tagout (LOTO) capability.

Product Information

Standard Information

• Brand: Eaton
• Part Number: 94709

Technical Specifications

• Amperage Rating: 400 A
• Voltage Rating: 240 V
• Number of Poles: 3 Pole
• Material: Painted steel
• Dimensions: 23.08 in (Width) x 44.74 in (Height)
• Application: Commercial / Institutional Buildings
• Compliances: NEC 230.62 (C) Compliant Barrier
• Indoor or Outdoor Use: Indoor
