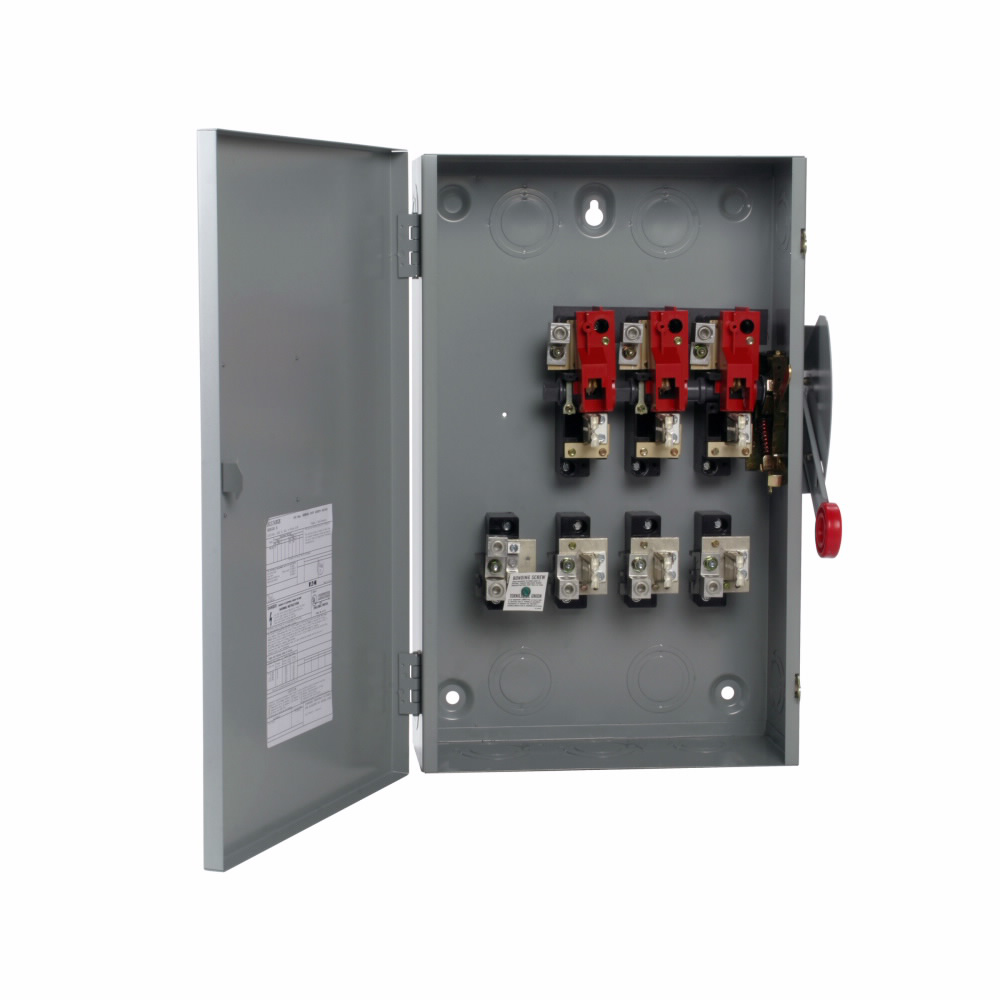

Eaton DG324UGK DG Series Non-Fusible General Duty Safety Switch 240 VAC 200 A TPST 3

Product Description

The Eaton DG324UGK is a non-fusible general duty safety switch designed for use in power distribution. It operates at 240 VAC with a maximum amperage of 200 A and is suitable for indoor applications. This safety switch is established for three-pole, three-wire configurations and includes a TPST contact form.

• General duty safety switch
• Non-fusible and designed for service entrance
• Constructed with a painted steel enclosure

Product Highlights

This switch is ideal for both residential and commercial use. It supports light duty motor circuits and is compliant with UL standards.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part No: DG324UGK

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Number of Wires: 3
• Contact Form: TPST
• Dimensions: 10 in L x 15.52 in W x 25.23 in H
• Material: Steel
• Finish: Painted
• Enclosure Type: NEMA 1
• Horsepower: 15 hp, 30 hp
• Phase: 1/3
• Applications: Indoor and Power Distribution
