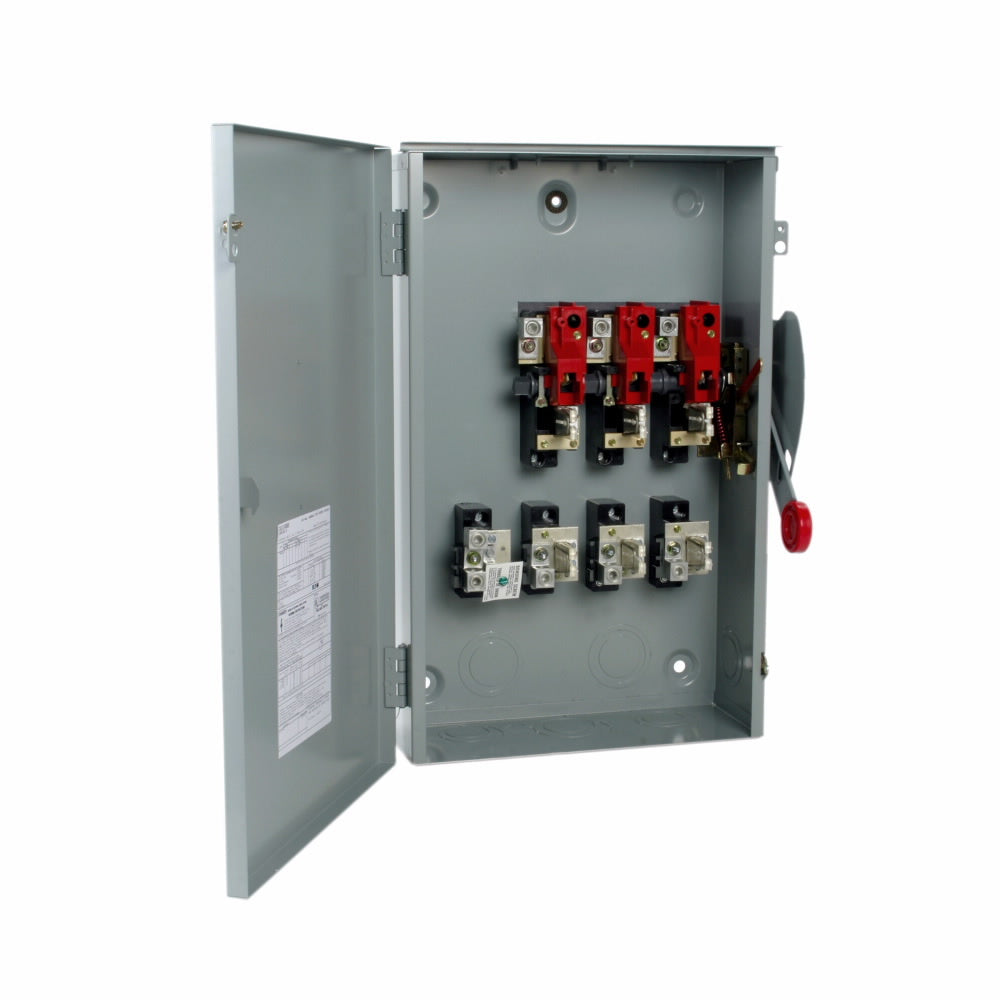

Eaton DG324NRK Safety Switch 240VAC 200A TPST 3 1/3 4

Product Description

The Eaton DG324NRK safety switch is a cartridge fusible general duty switch designed for residential and commercial applications. With a voltage rating of 240 VAC and an amperage rating of 200 A, this switch is suitable for light-duty motor circuits and service entrances.

• 200 A, TPST Contact Form
• NEMA 3R Enclosure for weather protection
• Surface Mounting type

Product Highlights

The Eaton DG324NRK switch features ample wire bending space and a visible double-break quick make mechanism. It is designed for easy installation and provides reliable performance in demanding applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: DG324NRK

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Number of Wires: 4
• Dimensions: 10 in L x 15.52 in W x 25.23 in H
• Material: Steel
• Finish: Galvanized/Painted
• Horsepower: 15 hp, 25 to 60 hp
• Enclosure Type: NEMA 3R
• Application: For Residential, Commercial and Light-Duty Motor Circuits
